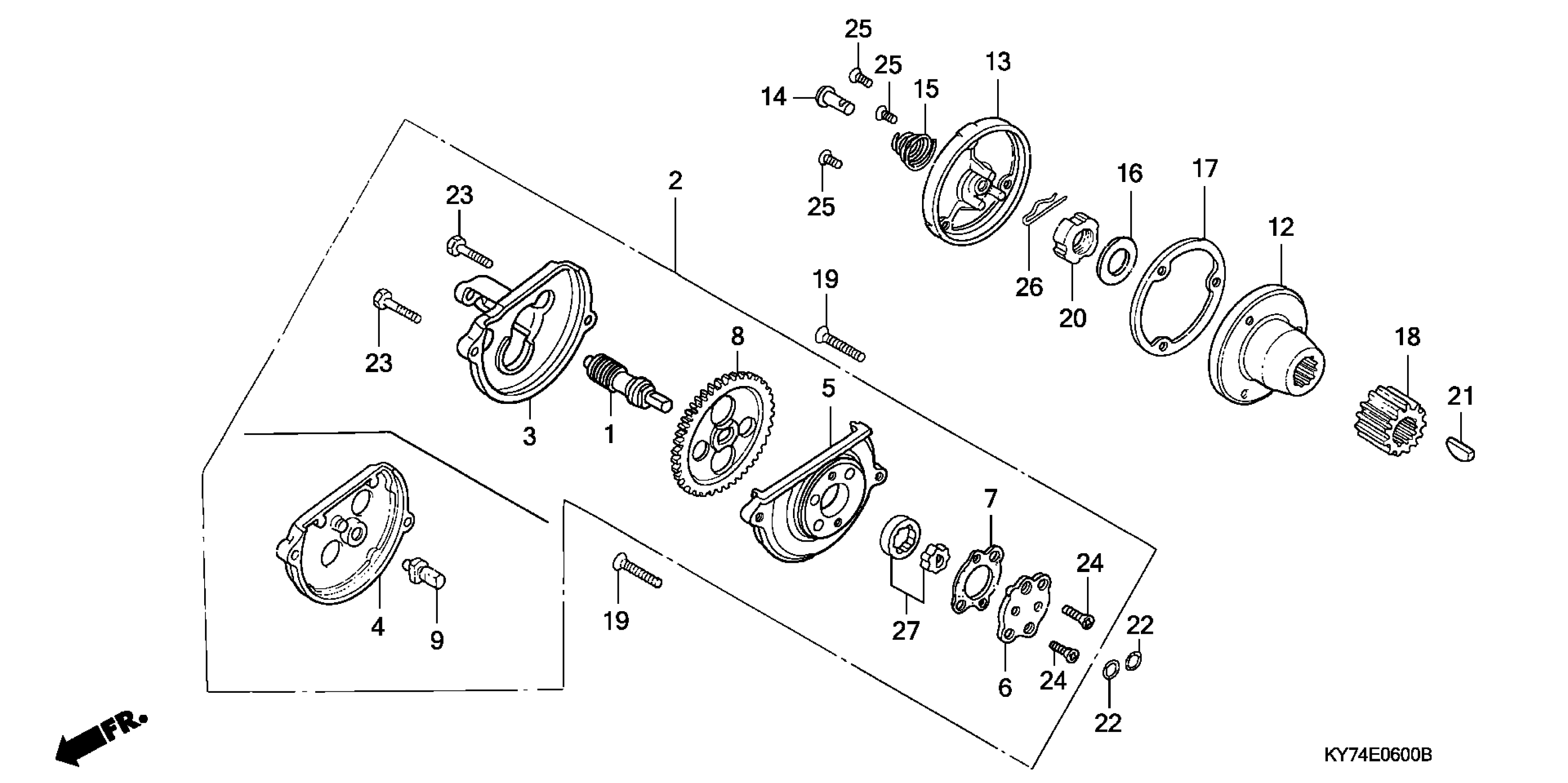

Honda NX125A (90) MOTORCYCLE, BRA, VIN# 3H1JD090-LR200001 OIL PUMP Diagram

#

Description

Price

1

GEAR, TACHOMETER PINION

12421-KW8-900

Unavailable

2

PUMP ASSY., OIL

15100-KW8-900

Unavailable

3

COVER, OIL PUMP GEAR

15106-324-030

Unavailable

8

GEAR, OIL PUMP DRIVE (31T)

15131-KW1-900

Unavailable

16

WASHER (16MM) This part replaces 90434-KN6-930.

90434-KPS-900

$2.05

16

WASHER (16MM)

90434-KPS-900

$2.05

18

GEAR A, PRIMARY DRIVE (18T)

23121-KW1-900

Unavailable

18

GEAR B, PRIMARY DRIVE (18T)

23122-KW1-900

Unavailable

20

NUT, LOCK (16MM)

90231-KK3-830

$5.29

21

KEY, WOODRUFF (25X14)

90471-KW1-900

Unavailable

24

SCREW, FLAT (4X12)

93600-04012-0A

$1.49
