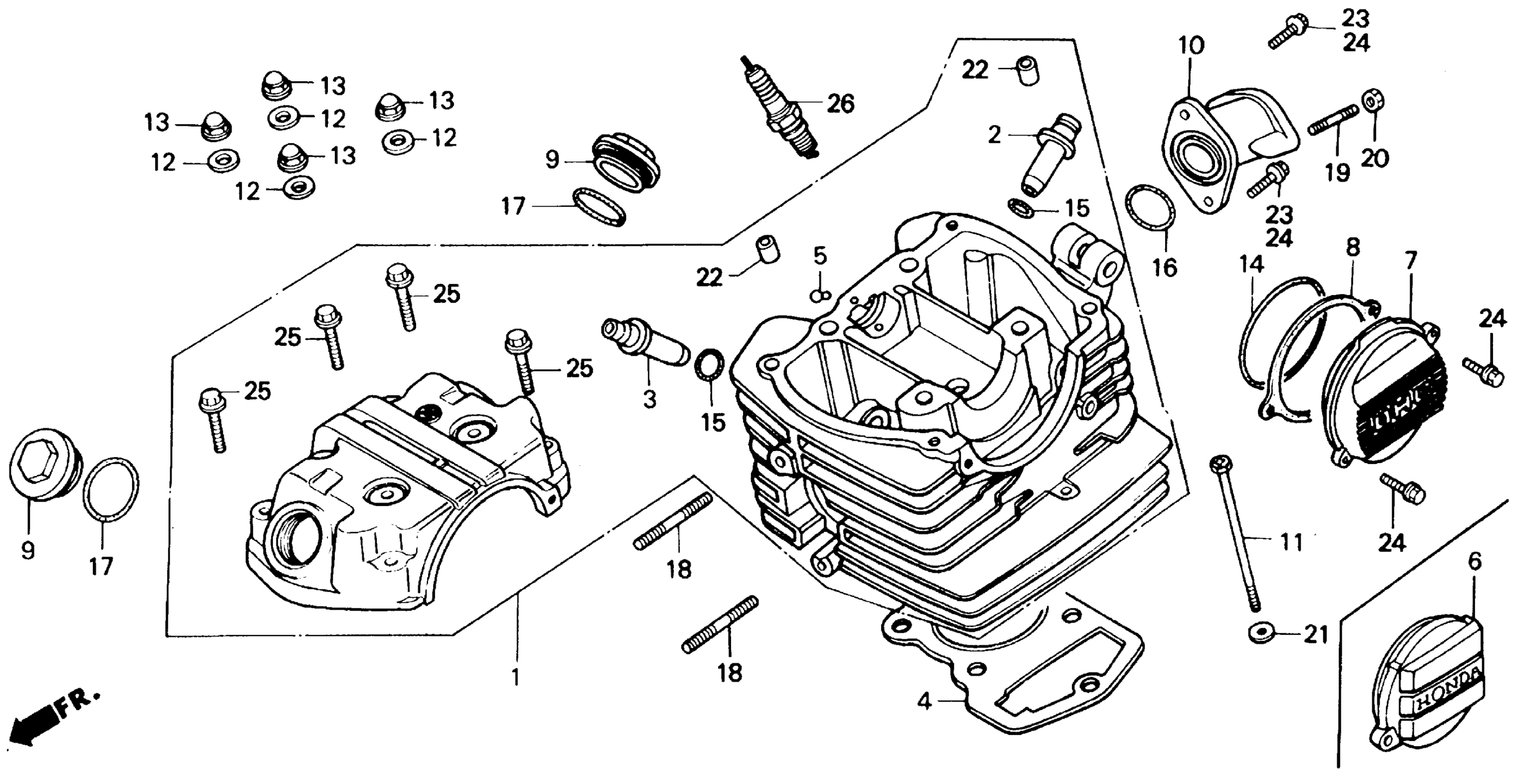

Honda NX125A (90) MOTORCYCLE, BRA, VIN# 3H1JD090-LR200001 CYLINDER HEAD Diagram

#

Description

Price

1

CYLINDER HEAD ASSY.

12000-KY7-940

Unavailable

7

COVER, L. CYLINDER HEAD SIDE

12331-441-970

Unavailable

8

GASKET This part replaces 12339-439-970.

12339-KT0-712

$6.72

11

BOLT, SOCKET (6X110) (SOURCE: VINTAGE PARTS INC.)

96700-06110-00

Unavailable

17

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.80

19

BOLT, STUD (6X16)

90033-KPT-900

$0.65

19

BOLT, STUD (6X16) This part replaces 92912-06016-0B.

90033-KPT-900

$0.65
