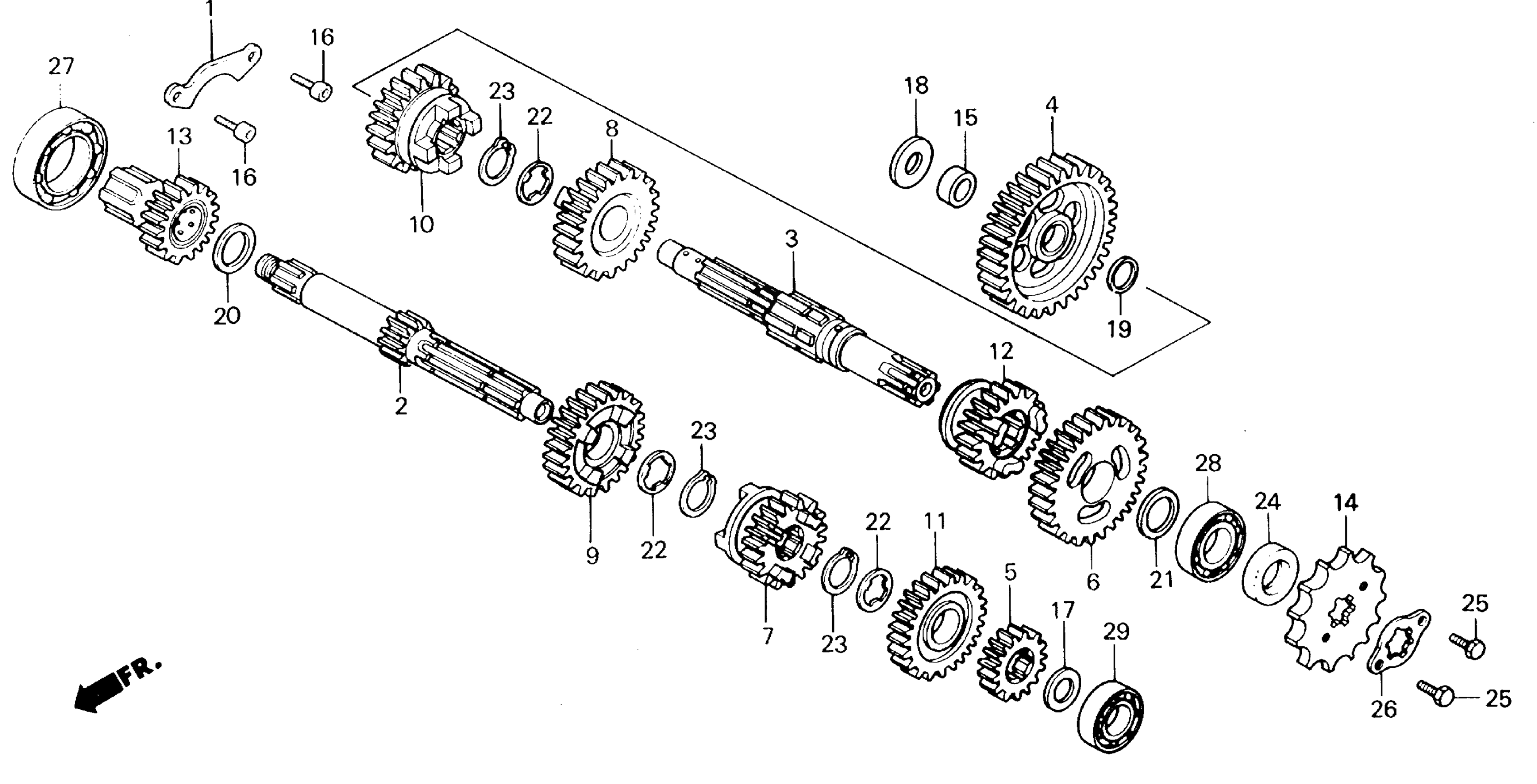

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 TRANSMISSION Diagram

#

Description
Price

1

PLATE, BEARING SETTING (NOT AVAILABLE)

11108-KN6-930

Unavailable

2

MAINSHAFT, TRANSMISSION (13T)

23211-427-000

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23221-427-000

Unavailable

4

GEAR, COUNTERSHAFT LOW (36T)

23421-427-010

Unavailable

5

GEAR, MAINSHAFT SECOND (18T)

23441-427-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (31T)

23451-427-010

Unavailable

7

GEAR, MAINSHAFT THIRD (22T)

23461-427-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (27T) (NOT AVAILABLE)

23471-KY7-000

Unavailable

9

GEAR, MAINSHAFT FOURTH (25T) (NOT AVAILABLE)

23481-KY7-000

Unavailable

10

GEAR, COUNTERSHAFT FOURTH (24T) (NOT AVAILABLE)

23491-KY7-000

Unavailable

11

GEAR, MAINSHAFT FIFTH (27T)

23501-427-010

Unavailable

12

GEAR, COUNTERSHAFT FIFTH (21T)

23511-427-020

Unavailable

13

COLLAR, MAINSHAFT (NOT AVAILABLE)

23520-KY7-000

Unavailable

14

SPROCKET, DRIVE (15T)

23801-KC6-000

Unavailable

14

SPROCKET, DRIVE (15T) This part replaces 23801-324-000.

23801-KC6-000

Unavailable

15

COLLAR (16.5MM) (NOT AVAILABLE)

23913-KY7-000

Unavailable

16

BOLT, SOCKET (6X16)

90001-KN6-930

Unavailable

17

WASHER, THRUST (15MM)

90451-107-000

$1.49

18

WASHER, THRUST (15MM)

90451-365-000

$3.08

19

WASHER, THRUST (16.5MM)

90452-437-000

$3.40

20

WASHER A, THRUST (20MM)

90453-107-000

$2.25

21

WASHER, THRUST (20MM)

90454-107-000

$1.80

22

WASHER A, SPLINE (20MM)

90455-107-000

$1.92

23

SET-RING (20MM)

90605-200-000

$2.92

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-023.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI) This part replaces 91201-030-025.

91201-030-033

$5.54

24

OIL SEAL (20X34X7) (ARAI)

91201-030-033

$5.54

25

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

25

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

26

PLATE B, FIXING PLATE A2, FIXING

95014-92100

$1.49

27

BEARING, RADIAL BALL (6006)

96100-60060-00

$13.13

28

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22

29

BEARING, RADIAL BALL (6202Z)

96120-62020-00

$11.02
