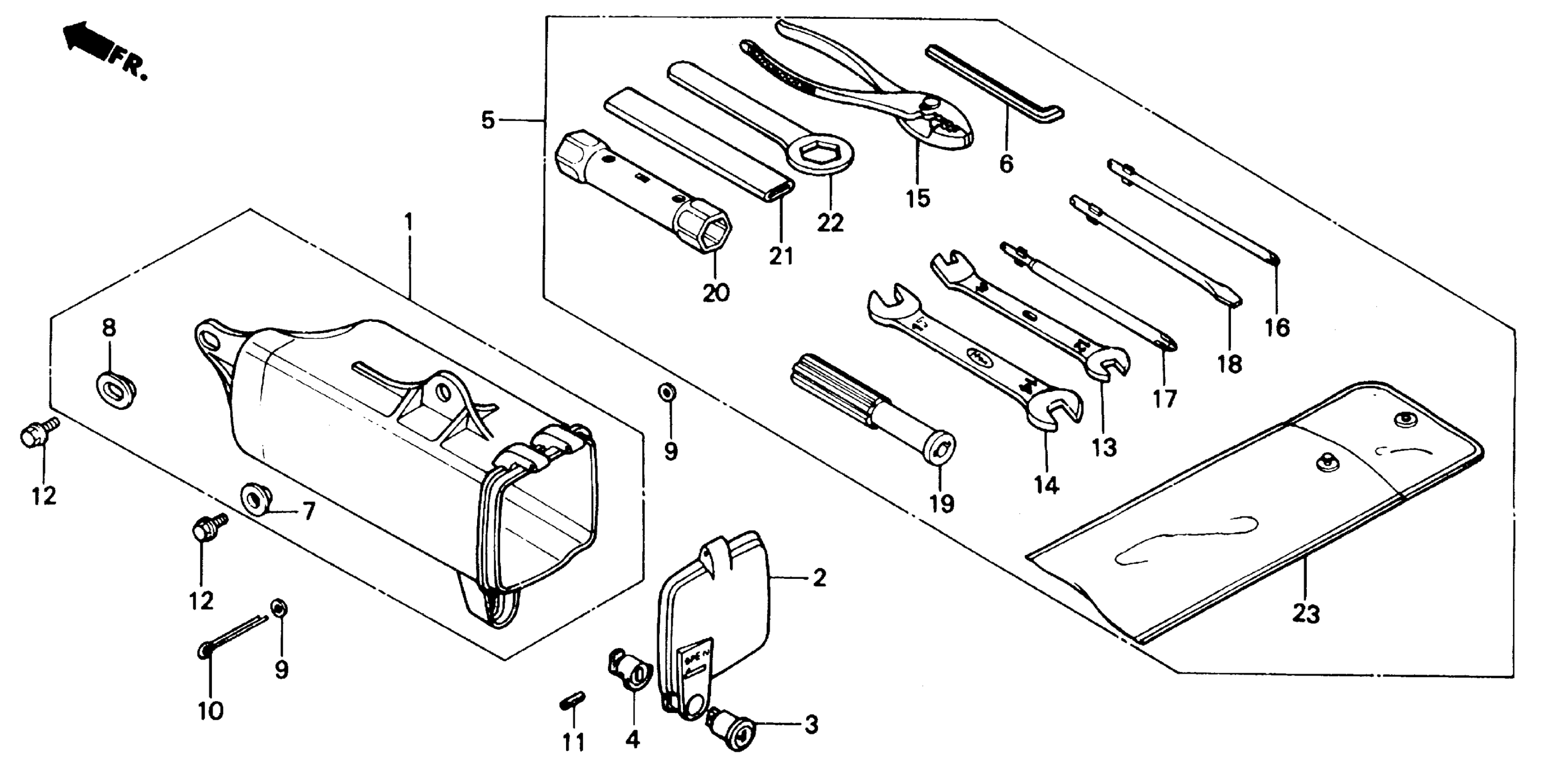

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 TOOLS Diagram

#

Description
Price

1

BOX, TOOL (NOT AVAILABLE)

83501-KB7-000

Unavailable

2

CAP, TOOL BOX (NOT AVAILABLE)

83504-KB7-000

Unavailable

3

BODY, KEY

83507-422-000

$3.53

4

STOPPER, KEY BODY

83508-KBG-000

$2.90

4

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

5

TOOL SET (NOT AVAILABLE)

89010-KY7-000

Unavailable

6

WRENCH, HEX. (5MM) (NOT AVAILABLE)

89221-MB0-000

Unavailable

7

WASHER (6X20) COLLAR, HEADLIGHT SETTING

90512-300-000

$3.08

8

WASHER (6X9)

90513-323-000

$1.84

9

WASHER, PLAIN (3MM)

94101-03000

$1.49

10

PIN, SPLIT (3.0X45) PIN, SPLIT (4.0X30)

94201-30450

$1.49

11

PIN, SPRING (2X14)

94305-20141

$1.49

12

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

12

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

13

WRENCH (10X12) (OPEN END)

99001-10120

$4.69

14

WRENCH (14X17) (OPEN END)

99001-14170

$7.49

15

PLIERS (135) (KOWA)

89210-GBJ-J10

$13.57

15

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

16

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

17

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

18

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

19

GRIP, SCREW DRIVER

99003-50000

$3.27

20

WRENCH, BOX (P18X19)

99004-18190

$3.40

21

HANDLE, EYE WRENCH (120MM)

99006-12000

$2.87

22

WRENCH, EYE (24MM)

99006-24000

$4.29

23

BAG, TOOL (160MM)

99008-01600

$2.22
