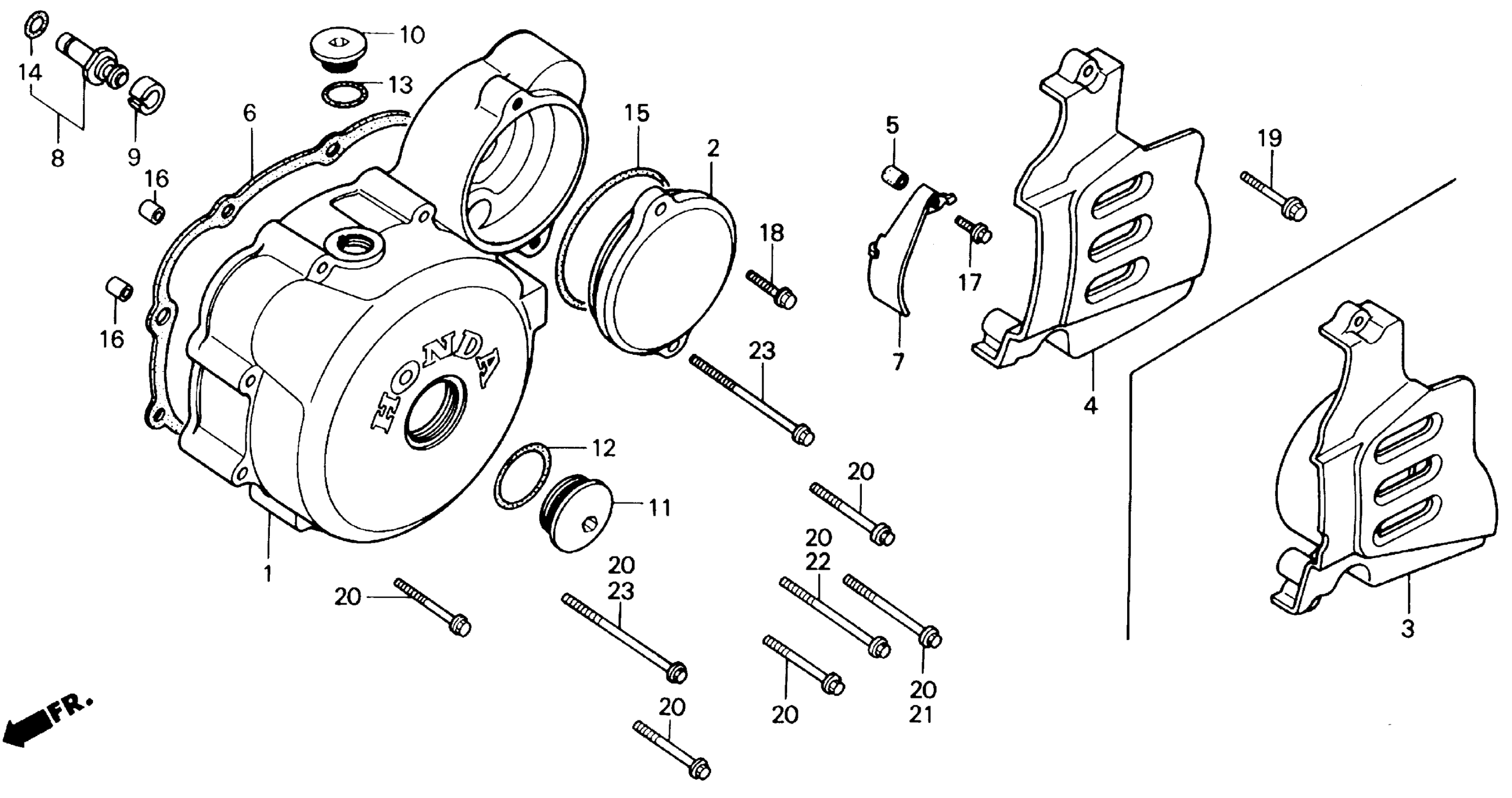

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 LEFT CRANKCASE COVER Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11340-KY7-000

Unavailable

COVER, REDUCTION GEAR This part replaces 11355-KY7-000.

11355-KY7-910

Unavailable

COVER, L. RR. CRANKCASE (NOT AVAILABLE)

11361-KY7-000

Unavailable

RUBBER, RR. COVER MOUNTING

11363-437-620

Unavailable

GASKET, R. This part replaces 11395-KN6-910.

11395-KN6-405

Unavailable

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

SPACER, NEUTRAL SWITCH

35752-KCT-690

$2.92

SPACER, NEUTRAL SWITCH This part replaces 35752-028-300.

35752-KCT-690

$2.92

CAP (14MM) This part replaces 90084-HB3-000.

90084-MN8-010

$12.82

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-HB5-000

$16.69

O-RING (27.4X2.4) (ARAI)

91302-567-003

$7.96

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (7X1.7)

91312-107-000

$3.18

O-RING (63X3.0)

91359-371-003

$5.69

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.16

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

BOLT, FLANGE (6X70) This part replaces 96000-06070-00.

96001-06070-00

$1.95

BOLT, FLANGE (6X70)

96001-06070-00

$1.95
