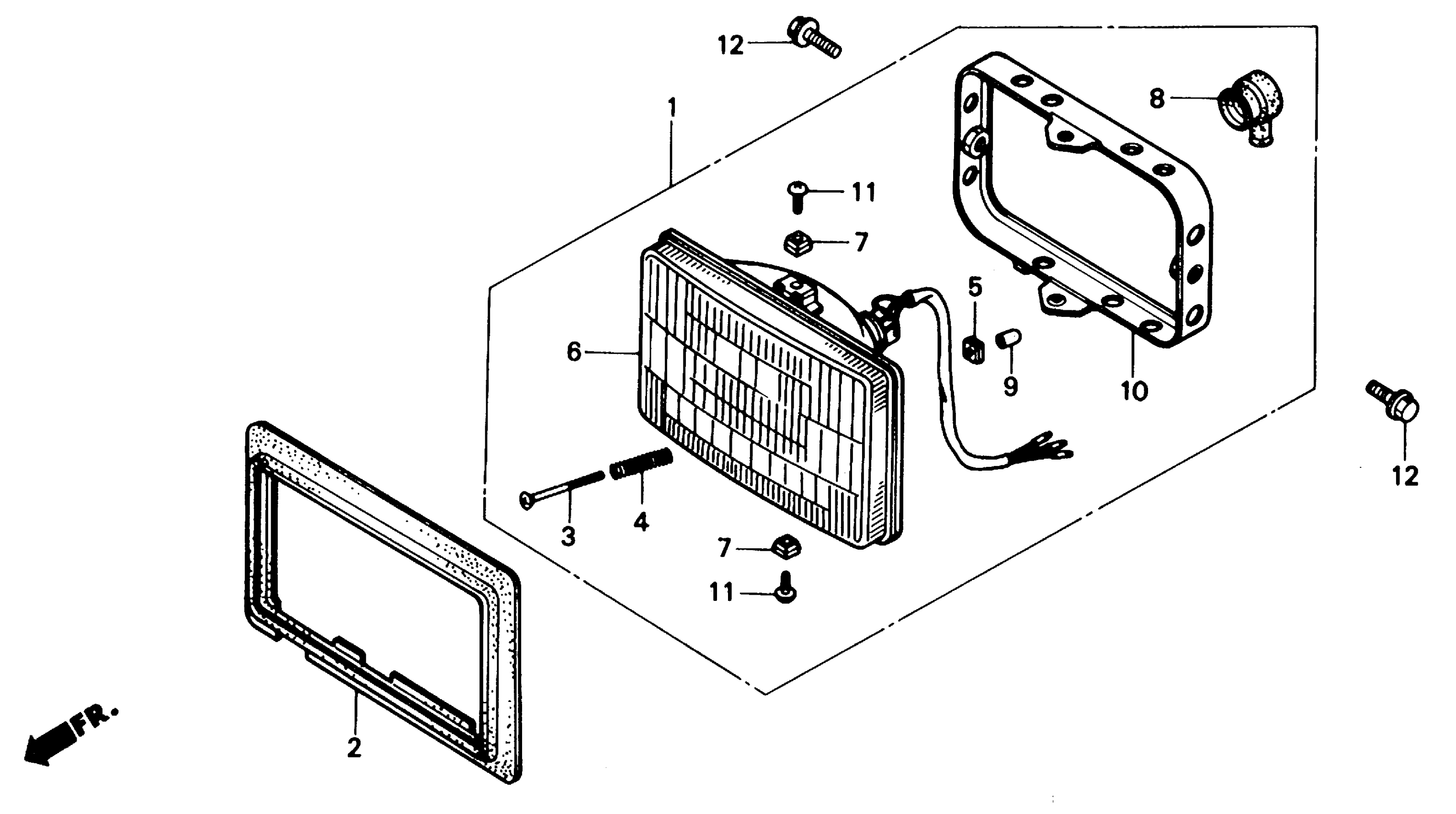

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 HEADLIGHT Diagram

#

Description

Price

1

HEADLIGHT ASSY. (12V 35/35W) (NOT AVAILABLE)

33100-KY7-670

Unavailable

2

GASKET, HEADLIGHT

33102-MG2-000

$29.33

3

SCREW, BEAM ADJUSTING

33103-MG2-671

$5.21

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-MG2-671

$2.92

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

HEADLIGHT UNIT (NOT AVAILABLE)

33120-KY7-670

Unavailable

7

NUT, UNIT HOLDER

33128-471-003

$1.62

8

COVER, RUBBER

33130-111-671

Unavailable

9

TUBE, SCREW

33136-KL4-671

Unavailable

10

RING, SETTING (NOT AVAILABLE)

33153-KL4-671

Unavailable

11

SCREW, PAN (5X8)

93500-05008-0H

$1.49

12

BOLT, FLANGE (8X12) This part replaces 95700-08012-00.

95701-08012-00

$1.49

12

BOLT, FLANGE (8X12)

95701-08012-00

$1.49
