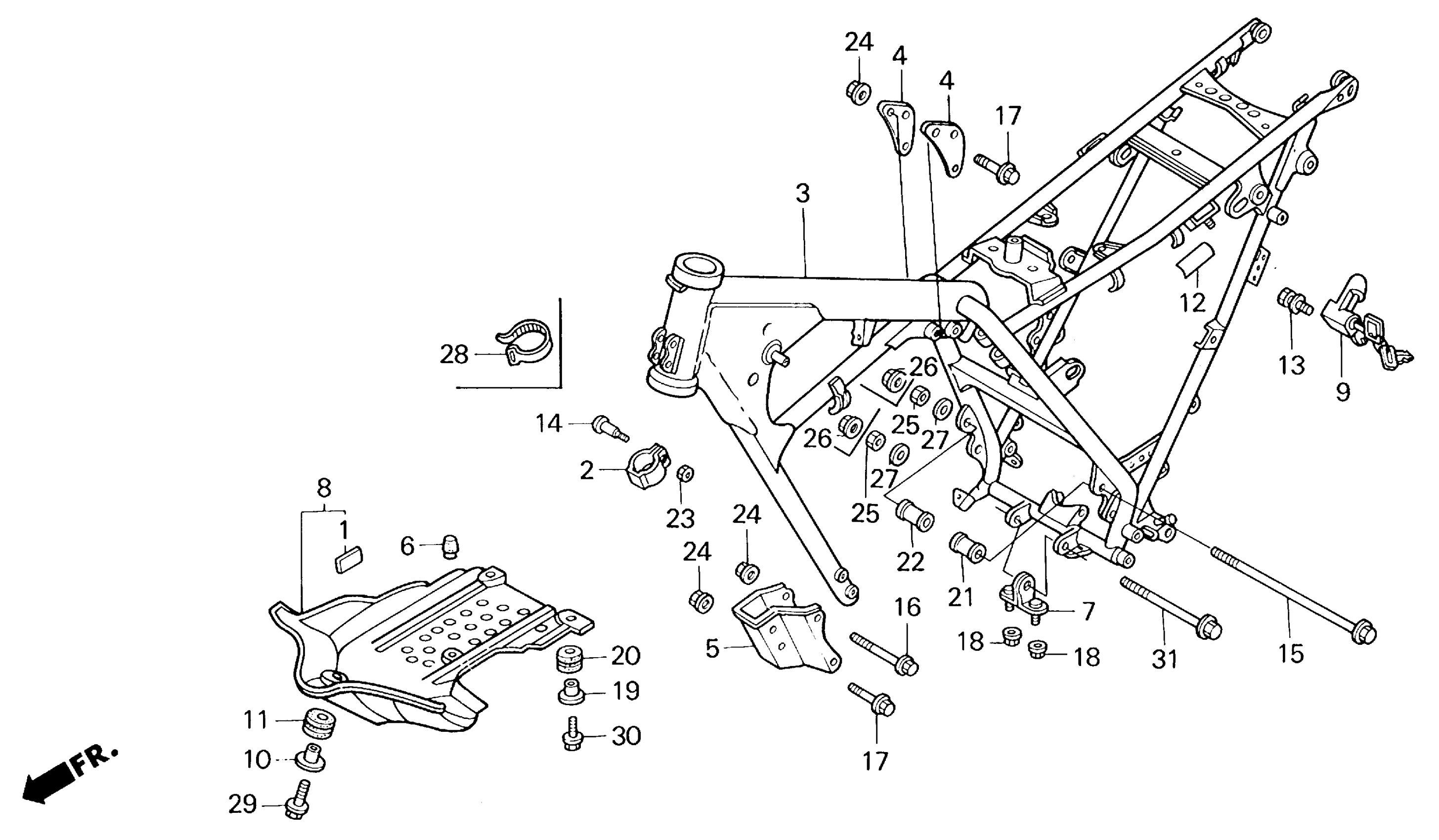

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 FRAME Diagram

#

Description
Price

1

CUSHION, TANK

17514-HC0-310

$14.25

2

CLAMP, CLUTCH CABLE

22878-KB9-000

Unavailable

3

FRAME SET *NH146M* (ACCURATE SILVER METALLIC) This part replaces 50100-KY7-670ZA.

06500-KY7-306ZA

Unavailable

4

PLATE, ENGINE HANGER (UPPER) *NH146M* (ACCURATE SILVER METALLIC) (NOT AVAILABLE)

50138-KY7-000ZA

Unavailable

5

PLATE, FR. ENGINE HANGER *NH146M* (ACCURATE SILVER METALLIC) (NOT AVAILABLE)

50351-KY7-000ZA

Unavailable

6

RUBBER A, STOPPER

50352-428-000

$2.75

8

PLATE, SKID *NH196* (ROSS WHITE)

50355-KY7-000ZB

Unavailable

9

HOLDER ASSY., HELMET

50710-382-671

$72.08

10

COLLAR (8X15)

80101-KB7-000

$6.16

11

RUBBER, MOUNTING (SOURCE: VINTAGE PARTS INC.)

80102-KB7-000

Unavailable

12

LABEL, COLOR (NH196) (TYPE1) (NOT AVAILABLE)

87565-KY7-000ZA

Unavailable

13

BOLT, HELMET HOLDER SETTING

90107-449-000

$3.35

14

SCREW, HANDLE LEVER PIVOT (SOURCE: VINTAGE PARTS INC.)

90113-GE8-000

Unavailable

15

BOLT, HEX. (10X215) | Use from Frame SN JK001071.

90109-KE1-000

$15.44

15

BOLT, FLANGE (10X222) | Use up to Frame SN JK001070. This part replaces 90120-KY7-000.

90104-KJ9-000

Unavailable

16

BOLT, FLANGE (8X85)

90145-GC4-730

Unavailable

17

BOLT, FLANGE (8X60)

90154-MA0-000

$7.31

19

COLLAR A, AIR CLEANER HOUSING (NOT AVAILABLE)

90501-MC4-000

$3.67

20

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$3.06

21

COLLAR, L. ENGINE DISTANCE *NH35M* (CLOUD SILVER METALLIC)

90742-437-970ZF

Unavailable

22

COLLAR, R. ENGINE DISTANCE *NH35M* (CLOUD SILVER METALLIC)

90743-437-970ZG

Unavailable

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

26

NUT, FLANGE (10MM)

94050-10000

$1.59

29

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

29

BOLT, FLANGE (8X28) This part replaces 95700-08028-10.

95701-08028-00

$1.49

29

BOLT, FLANGE (8X28)

95701-08028-00

$1.49

30

BOLT-WASHER (6X20) | Use from Frame SN JK001071.

93404-06020-08

$1.62

30

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22) | Use up to Frame SN JK001070.

95701-06020-00

$1.55

30

BOLT, FLANGE (6X20) | Use up to Frame SN JK001070. This part replaces 95801-06020-00.

95701-06020-00

$1.55

31

BOLT, FLANGE (10X110) (SOURCE: VINTAGE PARTS INC.)

95801-10110-00

Unavailable
