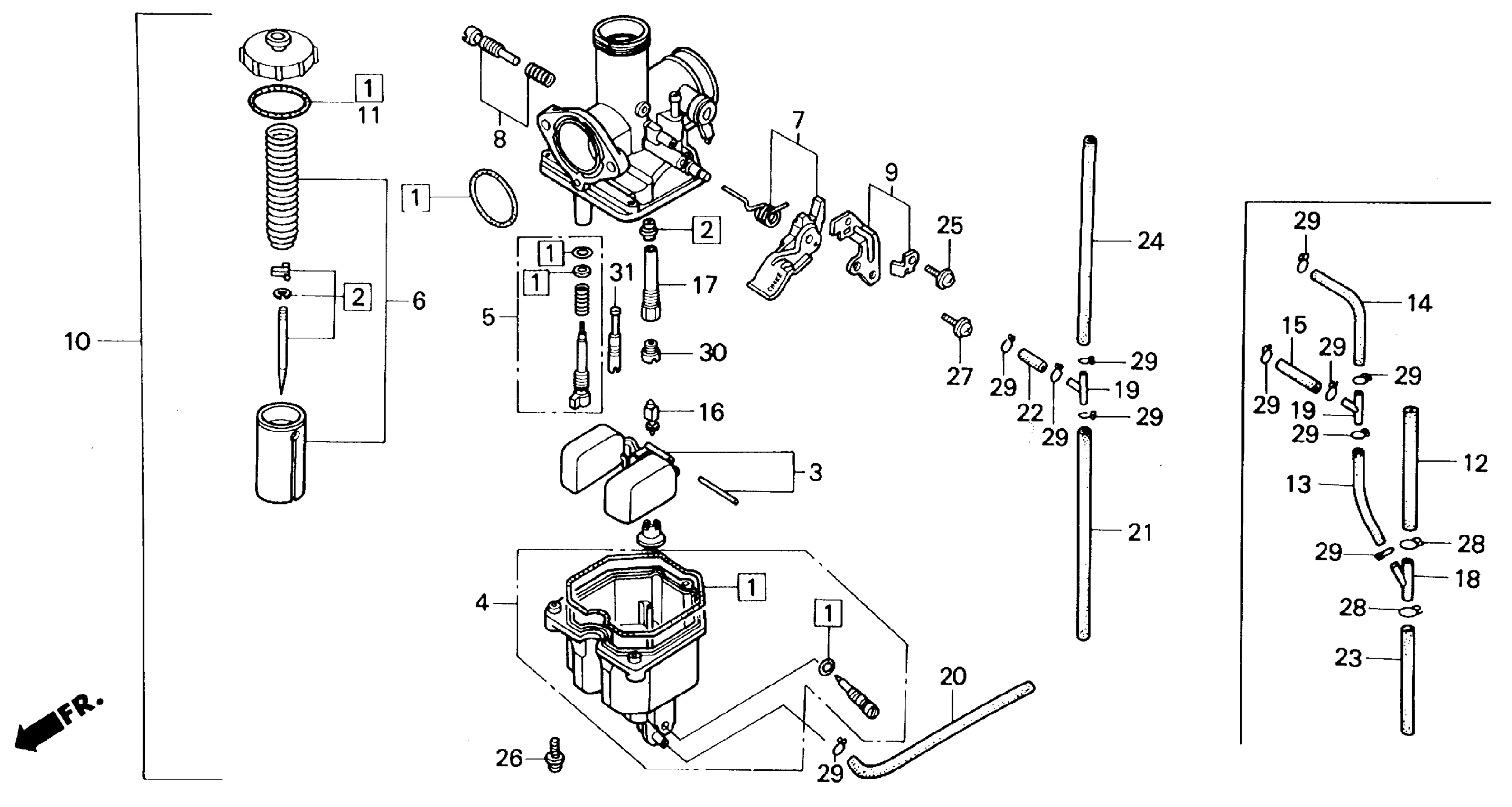

Honda NX125A (88) MOTORCYCLE, JPN, VIN# JH2JD090-JK000006 TO JH2JD090-JK002819 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-364-770.

16010-439-305

$18.91

1

GASKET SET

16010-439-305

$18.91

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-KY7-671

Unavailable

3

FLOAT SET

16013-439-921

$68.56

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-KB9-004

Unavailable

5

SCREW SET A

16016-KC2-970

$22.75

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$22.75

6

VALVE SET, THROTTLE This part replaces 16022-437-014.

16022-437-722

Unavailable

7

LEVER SET, CHOKE

16025-427-004

Unavailable

8

SCREW SET B

16028-KB1-D11

$5.57

8

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.57

9

PLATE SET, STAY This part replaces 16035-324-901.

16035-KEB-620

Unavailable

10

CARBURETOR (PD52EB) This part replaces 16100-KY7-672.

16100-KY7-673

Unavailable

11

GASKET, TOP

16110-KN4-651

$7.00

16

VALVE, FLOAT

16155-413-751

$29.18

17

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-KB9-004

Unavailable

19

JOINT (T-TYPE)

16180-195-731

$11.63

20

TUBE (NOT AVAILABLE)

16191-KV3-004

Unavailable

21

TUBE This part replaces 16195-449-405.

16199-MN5-405

$10.64

21

TUBE This part replaces 16199-GF4-003.

16199-MN5-405

$10.64

21

TUBE, OVERFLOW

16199-MN5-405

$10.64

22

TUBE, AIR VENT This part replaces 16198-MK6-405.

16199-428-405

$2.88

22

TUBE, AIR VENT This part replaces 16199-KB4-791.

16199-428-405

$2.88

22

TUBE, AIR VENT JOINT (4.5X6X26)

16199-428-405

$2.88

24

TUBE, FUEL (3.5X120)

16199-KG4-405

$8.51

24

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$8.51

25

SCREW-WASHER (4X10)

93892-04010-08

$1.04

26

SCREW-WASHER (4X16)

93892-04016-08

$0.67

27

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.04

29

CLIP, TUBE (B6.5)

95002-02650

$1.35

30

JET, MAIN (#92) | (Optional).

99101-GHB-0920

$7.43

30

JET, MAIN (#100)

99101-GHB-1000

$6.29

30

JET, MAIN (#92) | (Optional). This part replaces 99101-393-0920.

99101-GHB-0920

$7.43

30

JET, MAIN (#100) This part replaces 99101-393-1000.

99101-GHB-1000

$6.29

31

JET, SLOW (#38) This part replaces 99103-KA3-0380.

99103-KBA-0380

$11.84

31

JET, SLOW (#38)

99103-KBA-0380

$11.84

31

JET, SLOW (#38) This part replaces 99103-440-0380.

99103-KBA-0380

$11.84
