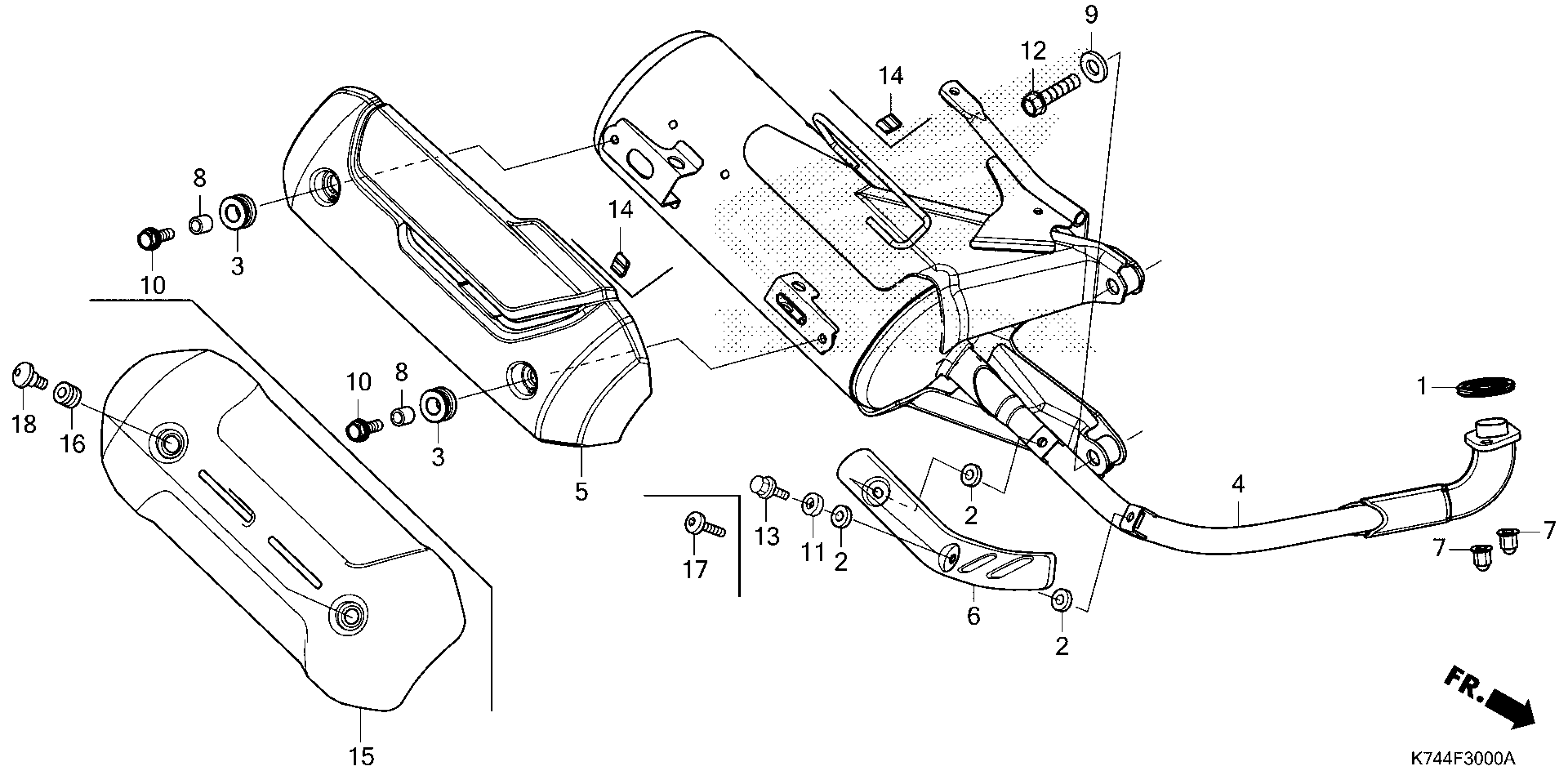

Honda NVA110BAC (25) MOTORCYCLE, MEX, VIN# 3H1JK071-SD300001 MUFFLER Diagram

GASKET, EX. PIPE

18292-GY1-610

$6.34

GASKET, PROTECTOR

18292-KTP-900

$1.49

MUFFLER, EX.

18300-K74-A10

$65.83

PROTECTOR, EX. PIPE

18319-KZK-F00

$1.54

NUT, HEX. CAP (7MM)

90304-K0N-D00

$1.49

WASHER, PLAIN (10MM)

90510-KWP-E00

$1.49

WASHER, PLAIN (6MM)

94101-06700

$1.49

BOLT, FLANGE (10X40)

95801-10040-07

$1.79

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

PROTECTOR, MUFFLER (NOT AVAILABLE)

18318-K74-H20

$4.85

RUBBER, PROTECTOR MOUNTING (NOT AVAILABLE)

18345-KWP-H00

$1.49

SCREW, PAN (6X10)

90106-MGC-000

$2.59

SCREW, PAN (6X14)

90113-K15-920

$1.49
