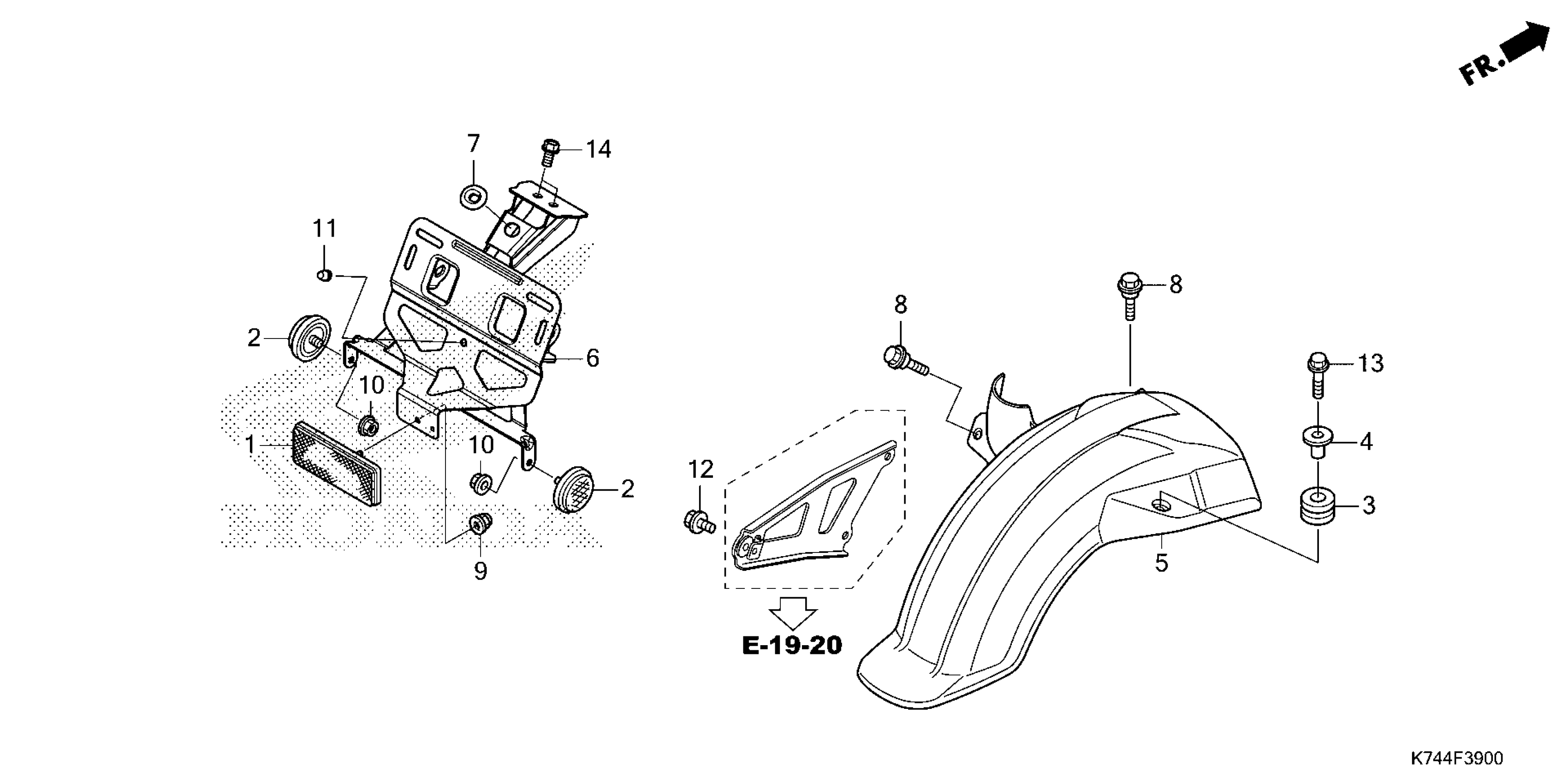

Honda NVA110BA (22) MOTORCYCLE, MEX, VIN# 3H1JK070-ND000001 TO 3H1JK070-ND099999 REAR FENDER Diagram

REFLECTOR, REFLEX

33741-KPL-902

$6.86

REFLEX, RR.

33742-K21-901

$1.35

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$3.90

FENDER, RR. (INNER)

80107-K74-N00

$3.03

BRKT, NUMBER PLATE

80108-K74-A00

$6.38

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

BOLT, FLANGE (6MM)

90111-187-000

$5.21

NUT, U (5MM)

90301-KWN-901

$0.61

NUT (6MM)

90302-KTE-911

$0.12

PLUG, CONE TYPE

90899-422-610

$1.81

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

BOLT, FLANGE (6X25)

95701-06025-07

$1.64

BOLT, FLANGE (8X16)

95701-08016-00

$1.64
