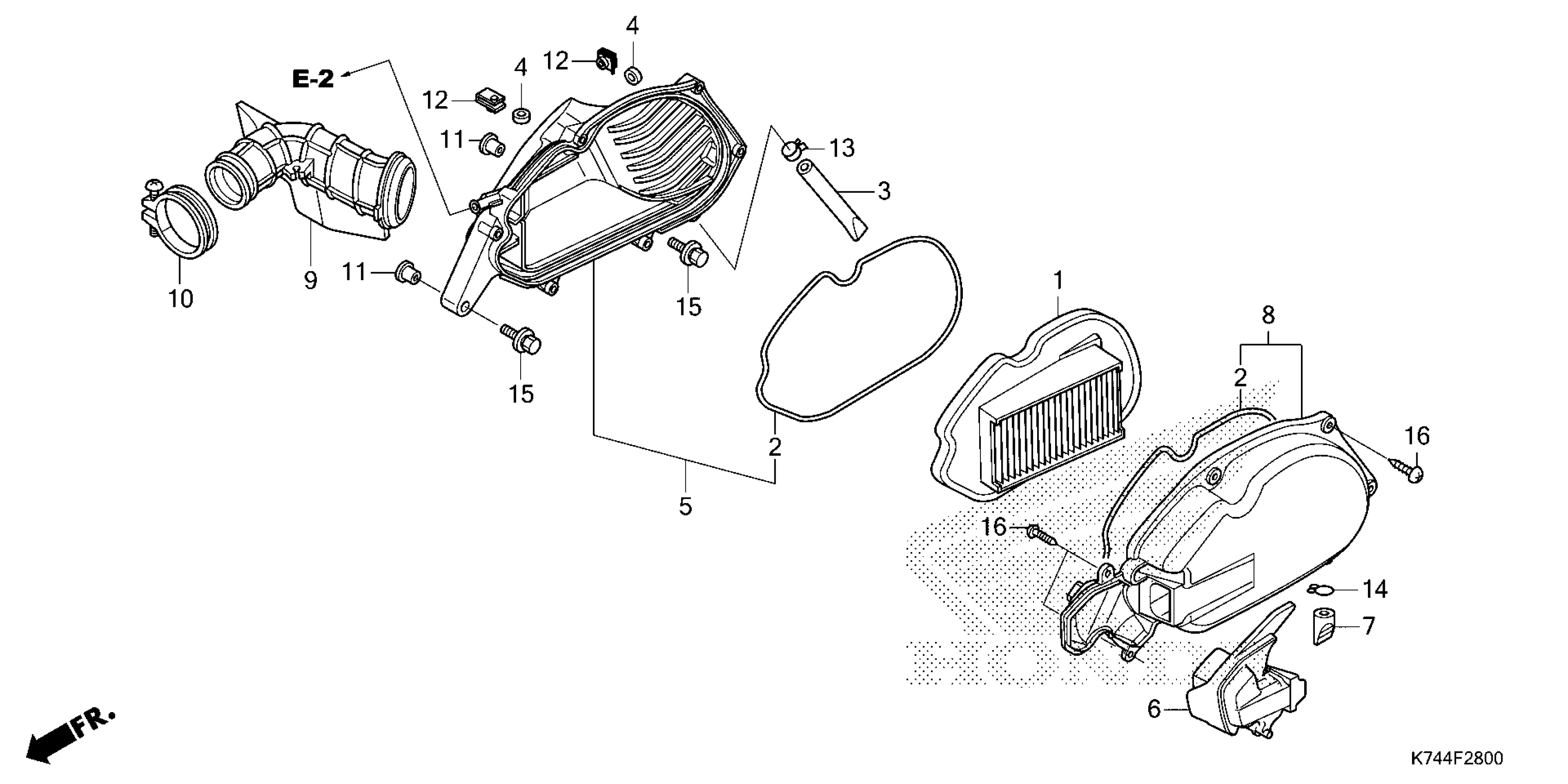

Honda NVA110BA (22) MOTORCYCLE, MEX, VIN# 3H1JK070-ND000001 TO 3H1JK070-ND099999 AIR CLEANER Diagram

Description

Price

ELEMENT, AIR/C

17210-KVT-D00

$4.60

SEAL, AIR/C COVER

17212-GEE-000

$0.57

TUBE, DRAIN

17216-KVT-G00

$0.36

COLLAR, AIR CLEANER

17223-KVX-600

$2.38

CASE SUB-ASSY.

17225-K74-N20

$3.51

COVER

17234-K74-N00

$1.01

TUBE

17234-KCC-941

$0.38

COVER SUB-ASSY., AIR CLEANER

17235-KVT-G00

$2.86

TUBE, AIR CLEANER CONNECTING

17253-KVT-G00

$2.99

BAND (40)

17254-K74-N00

$0.57

COLLAR

50731-KV3-770

Unavailable

NUT, CLIP (6MM)

90311-MT3-000

$5.39

CLAMP, TUBE (D12.0)

90602-KPL-900

$0.13

CLIP, TUBE (B12.5)

90653-KWP-F00

$0.17

BOLT-WASHER (6X40)

93404-06040-07

$1.30

SCREW, TAPPING (5X20)

93903-25480

$0.61
