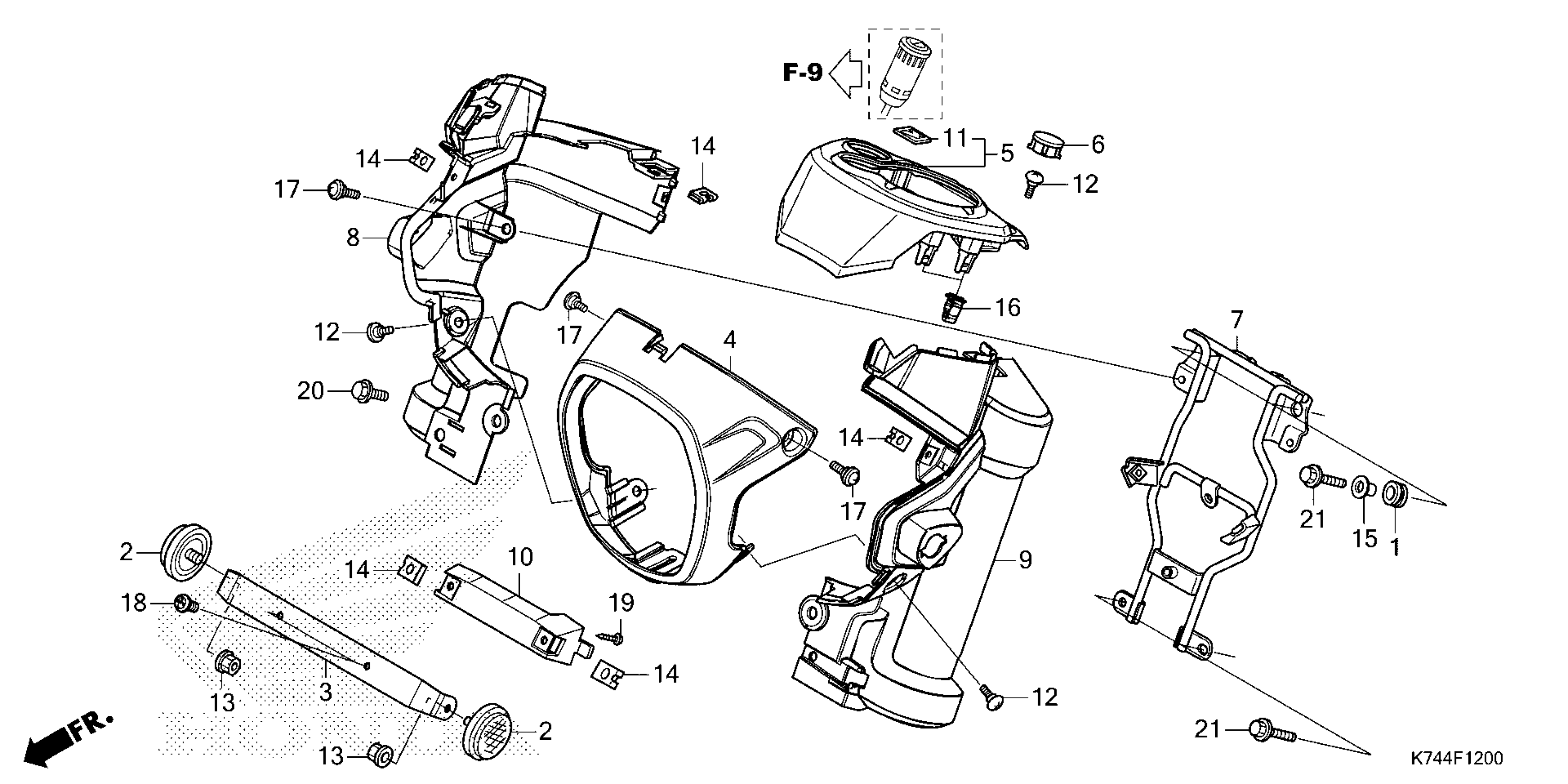

Honda NVA110B5AC (25) MOTORCYCLE, MEX, VIN# 3H1JK07F-SD100001 HEADLIGHT COVER@FRONT FORK COVER Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.78

2

REFLECTOR, FR.

33740-KTE-601

$1.49

3

STAY, FR. REFLECTOR

33741-K74-A00

$2.79

4

COVER, H/L *PB389M*

61300-K74-A30ZB

$106.59

4

COVER, H/L *R419P*

61300-K74-A30ZE

$107.69

4

COVER, H/L *NHD08M*

61300-K74-A30ZF

$107.69

5

COVER SET, METER (TYPE1) (WL)

61305-K74-N80ZA

$9.22

6

PLUG, BLIND

61313-K14-900

$1.49

7

STAY, FR. COWL

61315-K74-N00

$8.48

8

COVER, R FORK

61330-K74-A00

$2.97

9

COVER, L FORK

61340-K74-A00

$2.94

10

STAY, FR.

64315-K74-N00

$1.49

11

EMBLEM, PRODUCT

86150-KWS-601

$1.49

12

SCREW, PAN (5X15)

90150-MBG-000

$2.51

13

NUT (6MM)

90302-KTE-911

$1.49

14

NUT, SPRING (5MM)

90320-GC3-000

$2.20

15

WASHER

90501-KC2-750

$2.61

16

CLIP, SNAP FITTING

90666-K73-VA1

$1.88

17

SCREW, PAN (5X11.5)

91509-GE2-760

$2.38

18

SCREW, PAN (5X10)

93500-05010-0G

$1.49

19

SCREW, TAPPING (4X12)

93903-24320

$1.49

20

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

21

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
