Description

Price

1

CYLINDER HEAD

12200-KWP-H00

$117.54

2

GUIDE, VALVE (OS)

12204-KWP-P00

$1.28

3

CLIP, VALVE GUIDE

12206-KPL-900

$3.12

4

GSKT (STD/0.25/0.50)

12251-KWP-D01

$1.52

5

INSULATOR A, CARB

16211-KWP-900

$0.65

6

INSULATOR B, CARB

16212-KWP-900

$0.68

7

GASKET A, CARBURETOR INSULATOR

16229-KRP-602

$0.17

8

PIPE, INLET

17110-K74-N00

$3.64

9

RUB, IN. PIPE SEAL

17113-KWP-900

$0.23

10

PIPE, AIR FEED

18640-KWP-D00

$2.07

11

GSKT, AIR FEED PIPE

18645-KVY-900

$1.33

12

SPARK PLUG (MR7C-9N)

31917-KWP-D01

$4.65

12

SPARK PLUG (UR6DE0) (BOSCH)

31917-KWP-H02

$3.62

13

BOLT, STUD (7X17)

90004-KGF-910

$1.93

14

NUT, HEX. (7MM)

90201-GCC-000

$0.86

15

WASHER (7.2X16X2.5)

90401-GCC-000

$1.96

16

WASHER (6MM)

90402-KWP-900

$0.16

17

PIN (8X14)

90701-KPL-900

$0.13

18

O-RING (25X2.4)

91304-KWP-900

$0.32

19

O-RING (25.5X1.9)

91308-GFM-900

$4.95

20

BOLT, STUD (6X35)

92900-06035-0B

$1.77

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91

23

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

24

BOLT, FLANGE (6X100)

95701-06100-00

$2.75

25

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

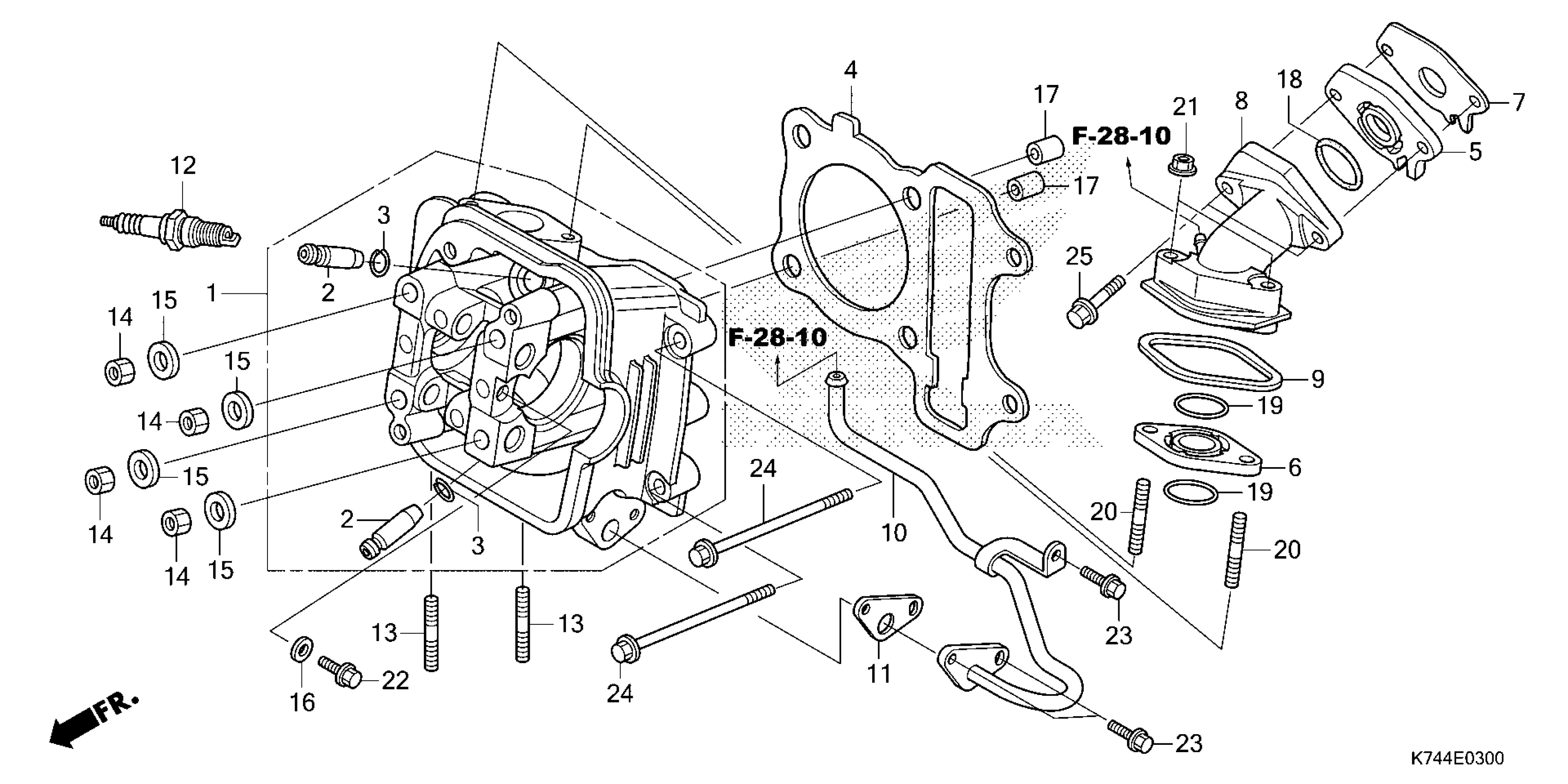

Honda NVA110B5AC (25) MOTORCYCLE, MEX, VIN# 3H1JK07F-SD100001 CYLINDER HEAD Diagram
