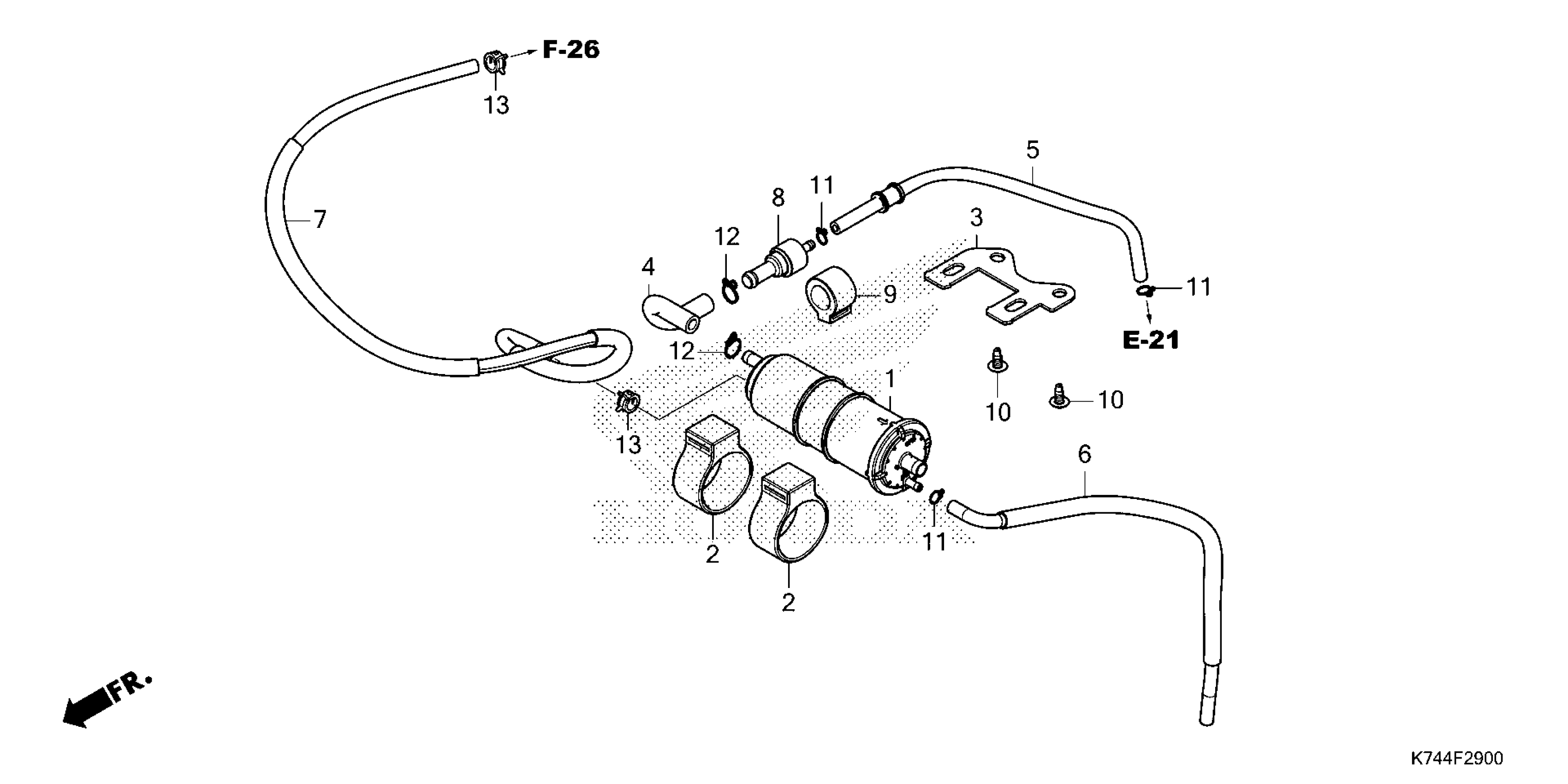

Honda NVA110B5AC (25) MOTORCYCLE, MEX, VIN# 3H1JK07F-SD100001 CANISTER Diagram

#

Description
Price

1

CANISTER COMP

17310-GFM-K03

$32.78

2

RUBBER, CANISTER MOUNT

17311-GFM-K00

$8.77

3

STAY, CANISTER

17311-K74-F00

$3.43

4

TUBE A, PURGE

17411-K74-F00

$0.72

5

TUBE B, PURGE

17412-K74-F00

$1.06

6

TUBE COMP, DRAIN

17413-K74-F00

$1.17

7

TUBE, CHARGE

17415-K74-F00

$20.01

8

VALVE, ONE-WAY

17440-K43-901

$6.32

9

RUB, ONE-WAY VALVE

17441-K43-900

$0.29

10

SCREW, TAPPING (5X12)

93903-35280

$0.75

11

CLIP, TUBE (B8) CLIP, TUBE (B7)

95002-02080

$1.59

12

CLIP, TUBE (B12)

95002-02120

Unavailable

13

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.32
