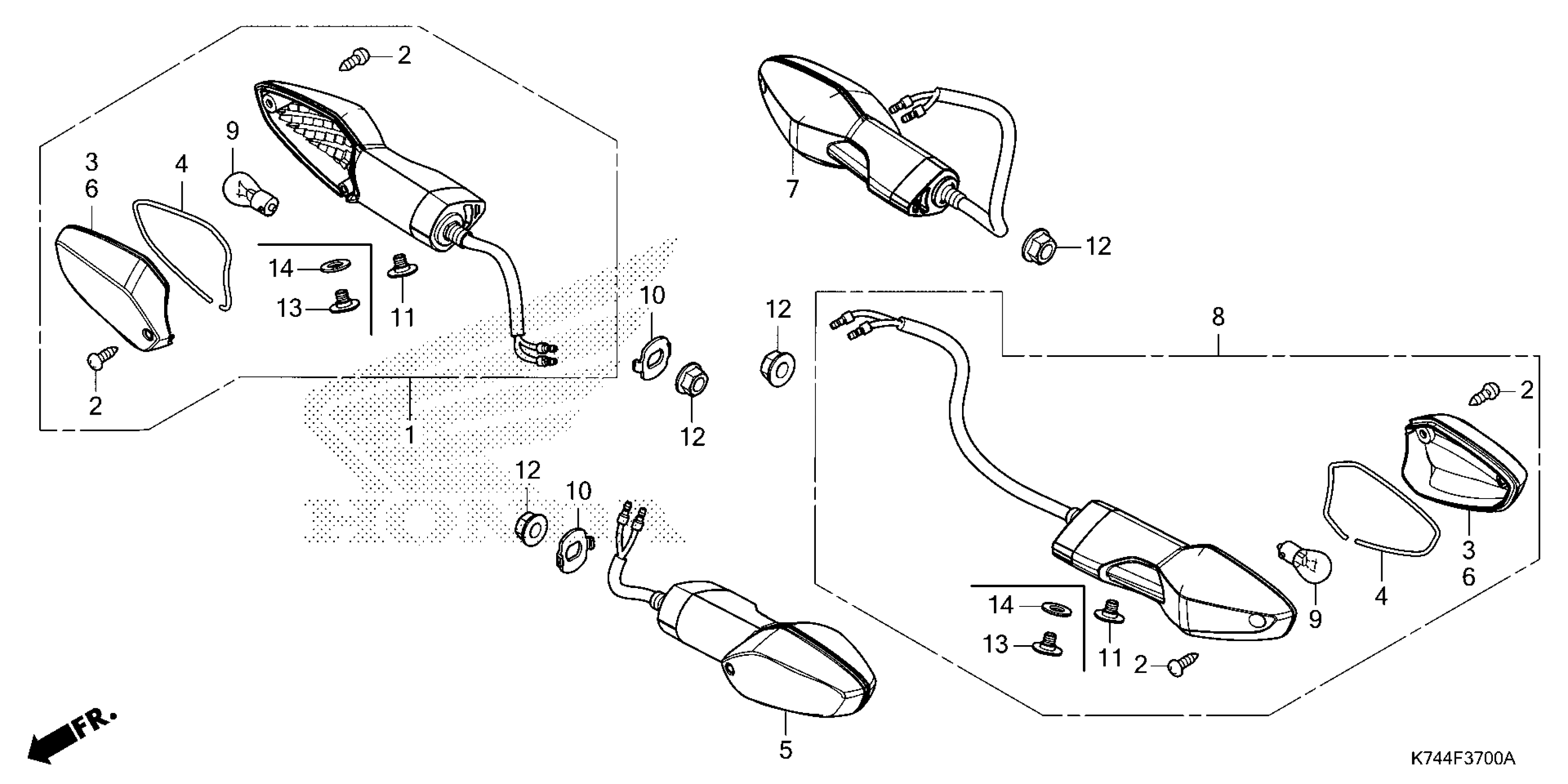

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 TURN SIGNAL Diagram

TURN SIGNAL, FR. R

33400-KRH-J01

$31.15

CROSS RES PAN HEAD T

33402-K0N-D01

$1.49

LENS, R. TURN SIGNAL (COO) (R. FR./L. RR.) This part replaces 33402-KWF-901.

33402-KYJ-305

$8.93

LENS, R. TURN SIGNAL (COO) (R. FR./L. RR.)

33402-KYJ-305

$8.93

SEAL, GASKET

33406-KWF-901

$3.77

TURN SIGNAL, FR. L

33450-KRH-J01

$31.15

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.) This part replaces 33452-KWF-901.

33452-KYJ-305

$10.50

LENS, L. TURN SIGNAL (COO) (L. FR./R. RR.)

33452-KYJ-305

$10.50

TURN SIGNAL, RR. R

33600-KRH-J01

$31.44

TURN SIGNAL, RR. L

33650-KRH-J01

$31.44

BULB,WINKER LIGHT

34904-MGZ-D01

$6.05

STAY, TURN SIGNAL

61315-GGJ-700

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

SCREW SPECIAL

90380-KRH-J01

$1.49

WASHER

90505-KRH-J01

$1.49
