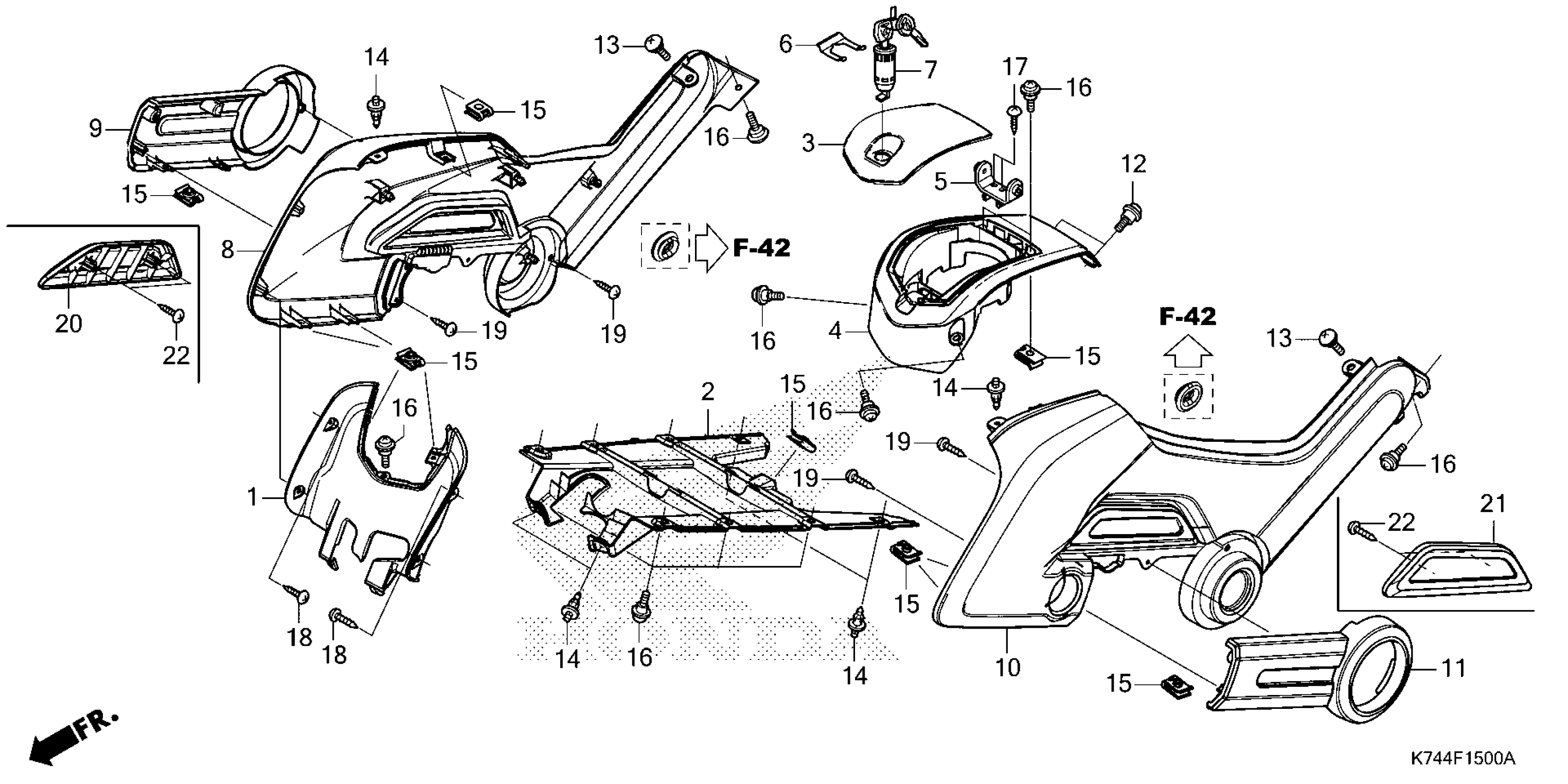

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 TANK COVER@SIDE COVER Diagram

#

Description
Price

1

COVER, TANK CENTER

64410-K74-A00

$1.71

2

COVER, TANK (LOWER)

64420-K74-A00

$2.29

3

LID, TANK

64430-K74-N00

$1.84

4

COVER, TANK

64440-K74-N00

$2.80

5

HINGE, TANK

64450-K74-N00

$0.49

6

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

7

KEY, FUEL LOCK

77239-K74-N01

$5.20

8

COVER ASSY., R. SIDE (TYPE2) (WL)

83500-K74-A30ZC

$115.29

8

SET ILLUS (TYPE3)

83500-K74-A30ZE

$108.90

8

SET ILLUS (TYPE1)

83500-K74-A30ZF

$117.01

9

COVER, R. SIDE (LOWER) *NHC57M* (MAT FOGGY SILVER METALLIC)

83520-K74-N00ZC

$11.68

10

COVER ASSY., L. SIDE (TYPE2) (WL)

83600-K74-A30ZC

$111.49

10

SET ILLUS (TYPE3)

83600-K74-A30ZE

$111.50

10

SET ILLUS (TYPE1)

83600-K74-A30ZF

$126.94

11

COVER, L. SIDE (LOWER) *NHC57M* (MAT FOGGY SILVER METALLIC)

83620-K74-N00ZC

$10.42

12

SCREW, PAN (5X16)

90102-GB2-720

$2.13

13

SCREW, METER VISOR SETTING This part replaces 90104-KT2-000.

90123-750-000

$3.50

13

SCREW, METER VISOR SETTING

90123-750-000

$3.50

14

CLIP, BUMPER SEAL

90116-K2P-V61

$1.39

15

NUT, SPRING (5MM)

90320-GC3-000

$2.13

16

SCREW, PAN (5X11.5)

91509-GE2-760

$2.19

17

SCREW, TAPPING (4X10)

93903-24280

Unavailable

18

SCREW, TAPPING (4X16)

93903-24480

$0.90

19

SCREW, TAPPING (4X12)

93903-34380

$2.12

20

CVR, R SIDE *NH303M*

83530-K74-A31ZA

$34.79

21

COVER, L. *NH303M*

83630-K74-A31ZA

$34.79

22

SCREW, TAPPING (4X12)

93903-34380

$2.12
