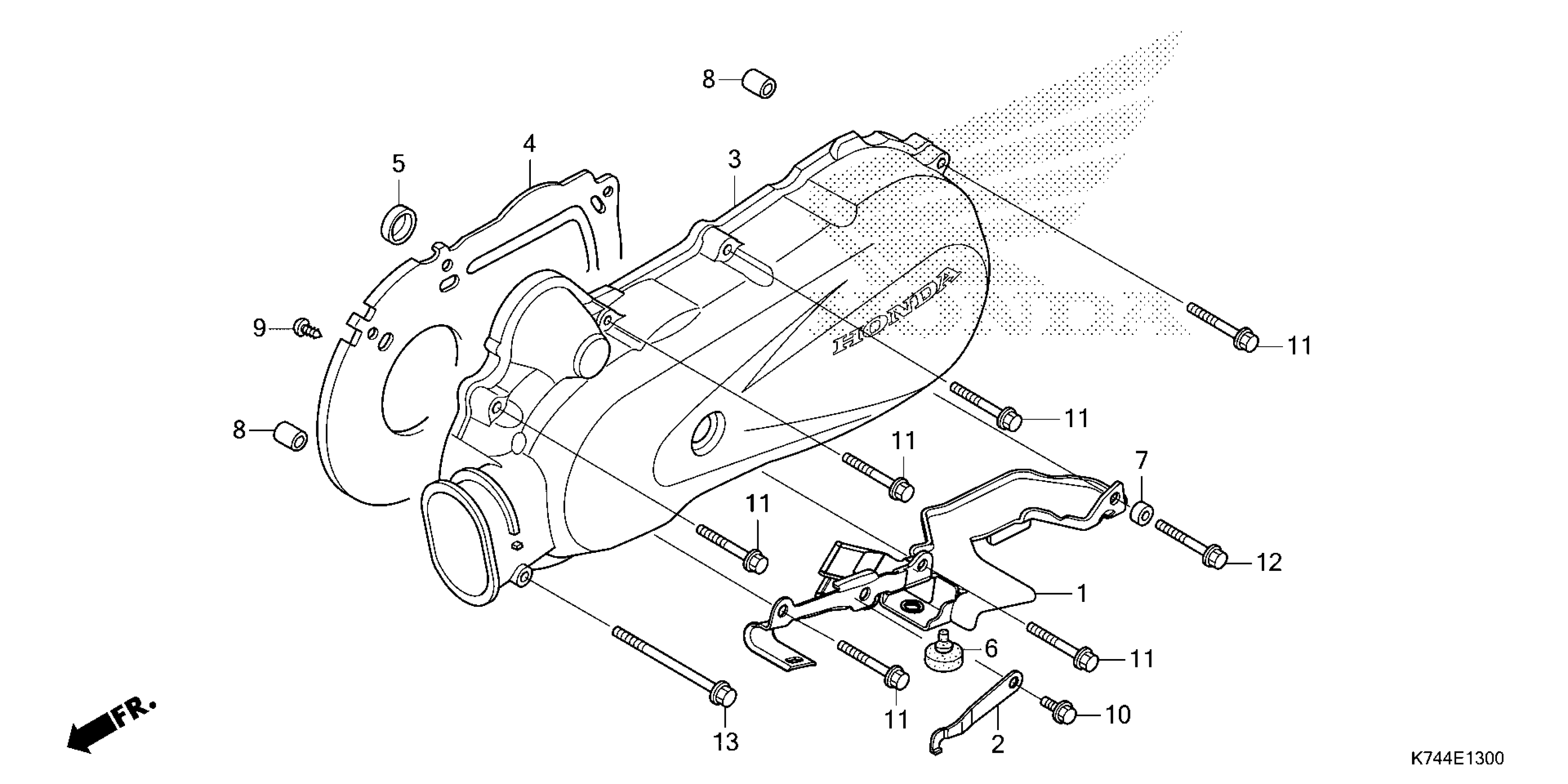

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

CLAMP COMP, RR.

11230-K74-A00

$2.15

2

CLAMP, BRAKE CABLE

11233-K74-A00

$3.35

3

COVER, L. SIDE

11341-K83-D00

$16.54

4

PLATE, L. COVER

11342-K86-D00

$1.57

5

RUBBER, STARTER PINION HOLDER

11344-GW3-980

$0.99

6

STOPPER, RUBBER

50501-KPL-900

$0.34

7

COLLAR (6MM)

90401-K74-A00

$0.43

8

PIN (8X14)

90701-KPL-900

$0.13

9

SCREW, TAPPING (4X8)

93903-34120

$0.76

10

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

11

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

$1.29

12

BOLT, FLANGE (6X45)

96001-06045-07

$2.54

13

BOLT, FLANGE (6X75)

96001-06075-00

$2.06
