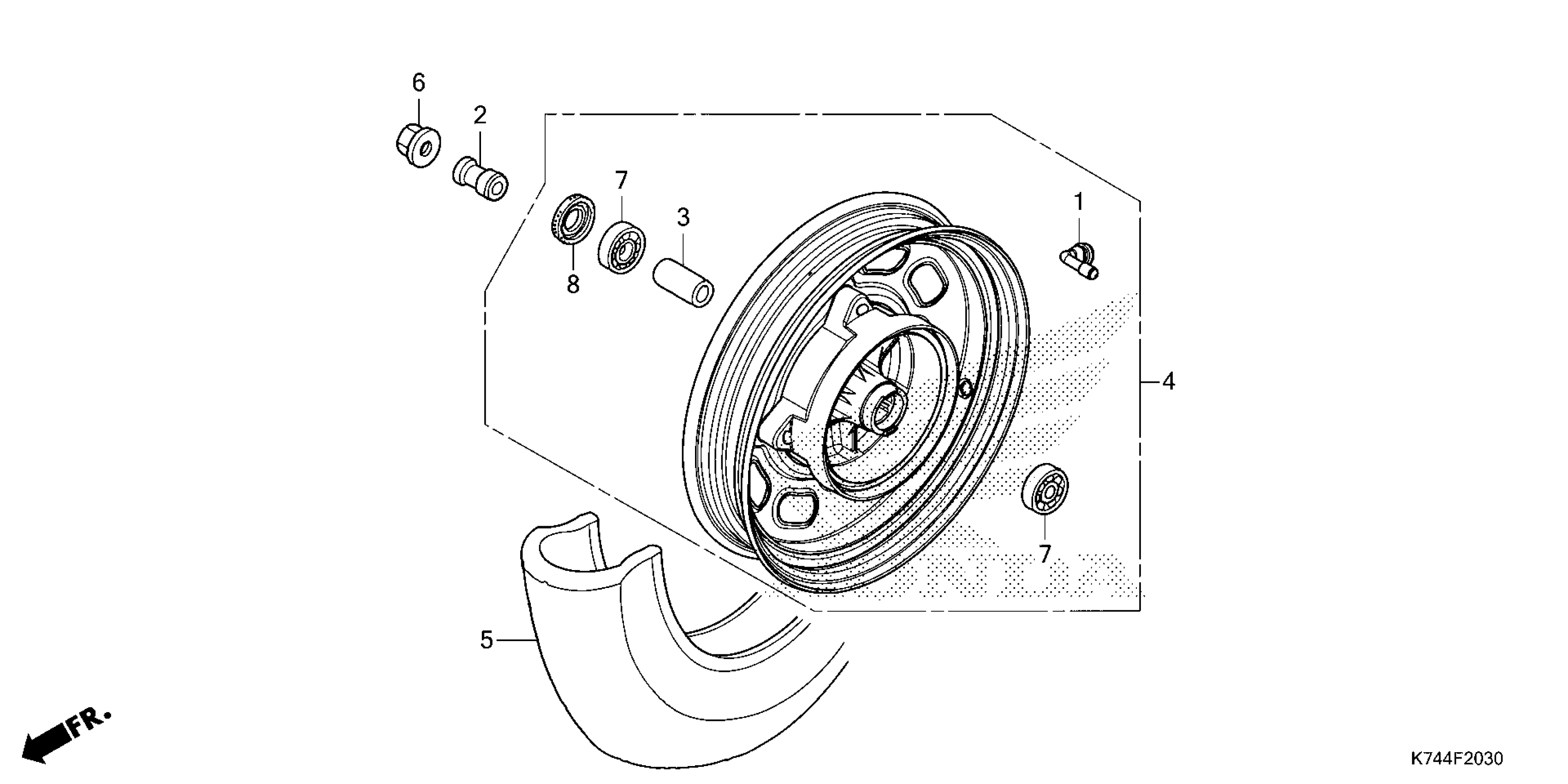

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 FRONT WHEEL Diagram

#

Description
Price

1

VALVE, RIM

42753-KWP-E01

$1.00

1

VALVE, RIM

42753-K24-G01

$0.87

2

COLR, FR. WHEEL SIDE

44311-K74-N00

$1.93

3

COLLAR, FR.

44620-KPL-900

$0.84

4

WHEEL SUB-ASSY., FR.

44650-K74-A01

$89.40

5

TIRE, FR. (90/90-12 54J) (MRF) (NOT AVAILABLE)

44711-KVT-D01

$94.44

6

NUT (12MM)

90306-KTE-911

$0.59

7

BEARING,BALL RADI

91052-K24-904

$3.71

8

DUST SEAL (20X32X5)

91251-KWP-901

$0.47
