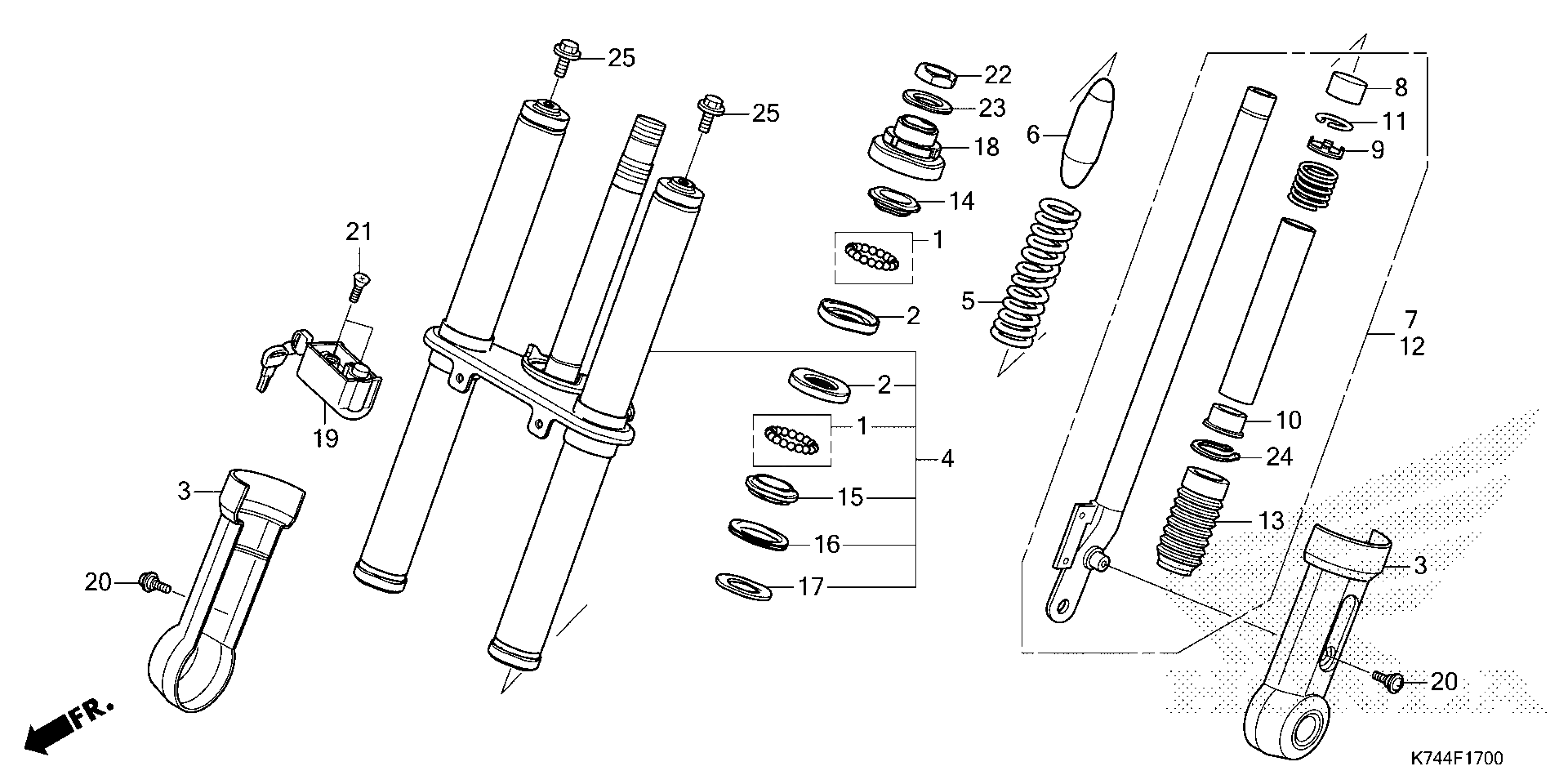

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 FRONT FORK Diagram

BALL, STEEL (#8X18)

06531-KGA-B90

$1.49

RACE, STEERING TOP BALL

50301-KTR-900

$6.36

COVER, FR. FORK

51103-K74-N00

$1.49

FORK SUB-ASSY., FR.

51110-K74-N60

$65.79

SPRING, FR. FORK

51401-K74-N01

$2.75

RUBBER, STOPPER

51406-K74-N01

$2.92

PIPE ASSY., R SLIDE

51420-K74-N02

$51.99

PISTON, SLIDE PIPE

51423-K74-N01

$3.01

STOPPER, REBOUND

51426-K74-N01

$1.49

BUSH, SLIDE PIPE

51443-K74-N02

$6.37

RING, STOPPER

51446-K74-N01

$1.49

PIPE ASSY., L SLIDE

51520-K74-N02

$51.99

BOOT, FR. FORK

51611-K74-N01

$2.05

RACE, STEERING CONE (UPPER)

53211-268-010

$26.89

RACE, STEERING CONE (LOWER) This part replaces 53212-200-000.

53212-200-305

$19.80

RACE, STEERING CONE (LOWER)

53212-200-305

$19.80

DUST SEAL, STEERING HEAD

53214-200-000

$2.92

WASHER

53215-K74-N00

$1.49

THREAD

53220-KSP-900

$3.43

LOCK, HANDLEBAR

53600-K74-N01

$7.67

SCREW, HINGE PATCH

90101-GE0-000

$2.89

SCREW (6X12)

90164-KPL-900

$1.49

NUT, STEERING STEM

90304-425-000

$9.69

WASHER

90503-K74-N00

$1.49

CIRCLIP (38MM)

90652-K74-N01

$1.49

BOLT, FLANGE (8X18)

95701-08018-08

$1.58
