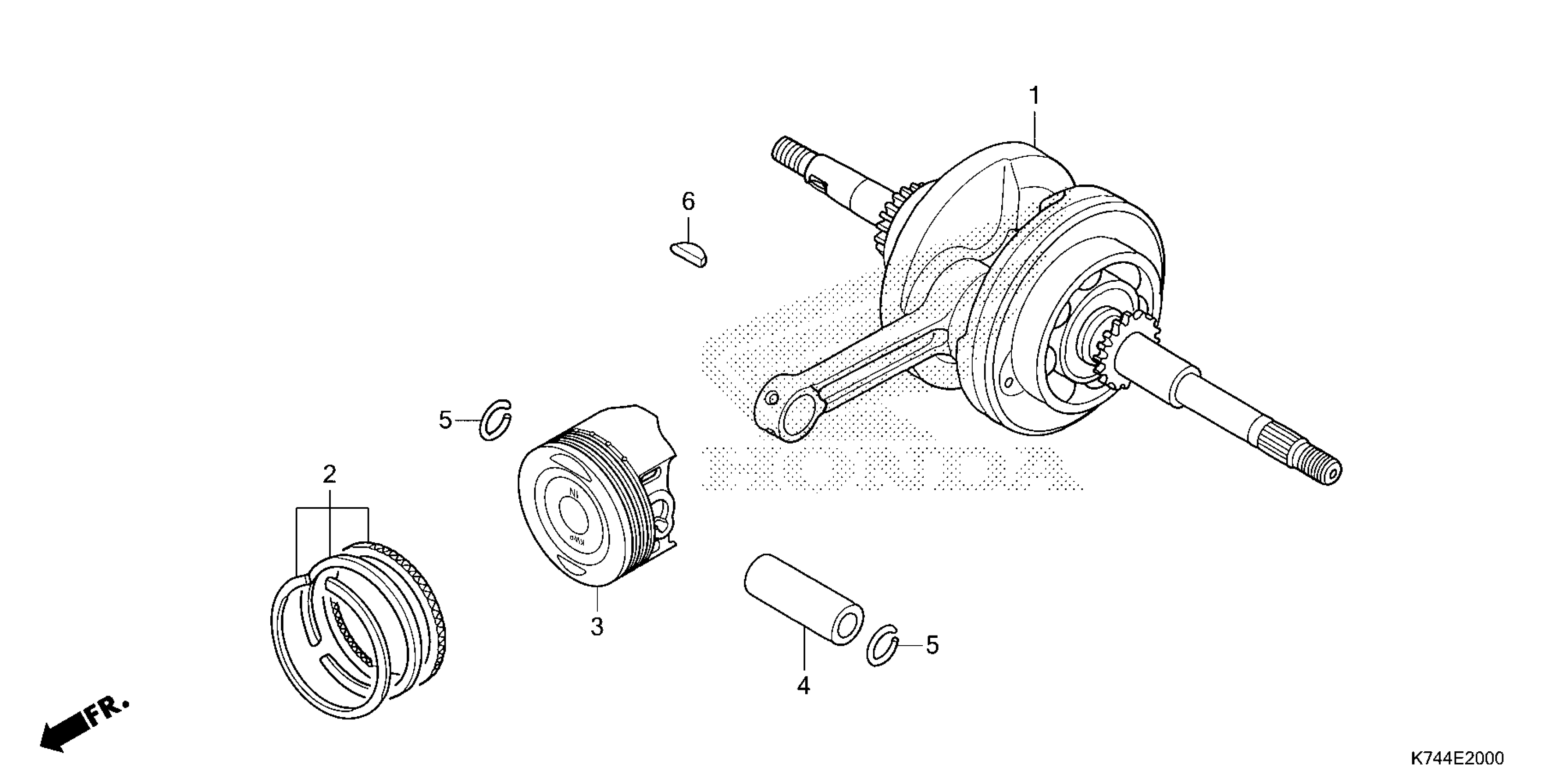

Honda NVA110B5A (25) MOTORCYCLE, MEX, VIN# 3H1JK07E-SD100001 CRANKSHAFT@PISTON Diagram

#

Description

Price

1

CRANKSHAFT COMP

13000-KWP-D02

$104.75

2

RING SET (STD)

13011-KWP-D00

$6.97

2

RING SET (STD) This part replaces 13012-KWP-D00.

13011-KWP-D00

$6.97

2

RING SET (STD) This part replaces 13013-KWP-D00.

13011-KWP-D00

$6.97

3

PISTON (STD)

13101-KWP-D00

$8.34

4

PIN, PISTON

13111-KWS-900

$8.76

5

CLIP, PISTON PIN (12MM)

13115-KWS-900

$2.06

6

KEY, WOODRUFF

90741-KPL-900

$0.38
