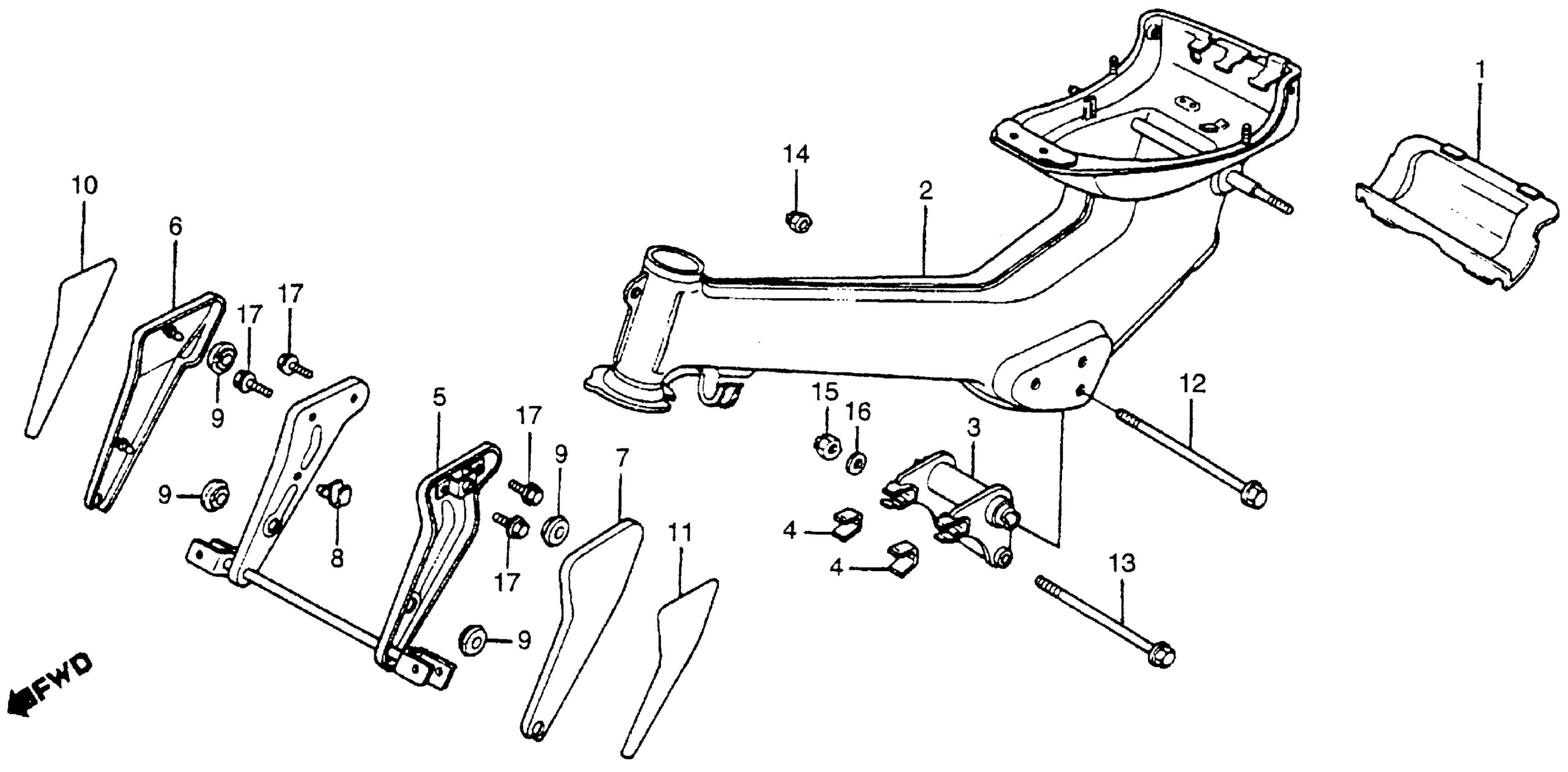

Honda NU50MA (83) URBAN EXPRESS DELUXE, JPN, VIN# JH2AB130-DK000001 FRAME + STEP BAR Diagram

COVER, ELECTRIC (NOT AVAILABLE)

31515-GC1-000

Unavailable

FRAME *B100MU* (COSMO BLACK METALLIC) This part replaces 50100-GC1-670ZD.

50100-GC1-671ZD

Unavailable

FRAME *B100MU* (COSMO BLACK METALLIC)

50100-GC1-671ZD

Unavailable

FRAME *YR121MU* (CENTURY BROWN METALLIC-U) This part replaces 50100-GC1-670ZE.

50100-GC1-671ZE

Unavailable

FRAME *YR121MU* (CENTURY BROWN METALLIC-U)

50100-GC1-671ZE

Unavailable

BRACKET ASSY., ENGINE HANGER

50350-GC1-000

Unavailable

RUBBER, ENGINE HANGER STOPPER (NOT AVAILABLE)

50352-GC1-000

Unavailable

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50615-GC1-670ZD.

50615-GC1-670ZA

Unavailable

BAR, STEP *YR121MU* (CENTURY BROWN METALLIC-U)

50615-GC1-670ZE

Unavailable

COVER, R. STEP *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

50616-GC1-670ZD

Unavailable

COVER, R. STEP *YR121MU* (CENTURY BROWN METALLIC-U)

50616-GC1-670ZE

Unavailable

COVER, L. STEP *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

50617-GC1-670ZD

Unavailable

COVER, L. STEP *YR121MU* (CENTURY BROWN METALLIC-U) (NOT AVAILABLE)

50617-GC1-670ZE

Unavailable

CLAMP, CABLE

80110-147-000

$2.64

GROMMET, SIDE COVER

83551-376-000

$2.97

LABEL, R. STEP (A.M.) (NOT AVAILABLE)

87135-GC1-670

Unavailable

LABEL, L. STEP (A.M.) (NOT AVAILABLE)

87136-GC1-670

Unavailable

BOLT A, ENGINE HANGER (NOT AVAILABLE)

90103-GC1-000

Unavailable

BOLT B, ENGINE HANGER (NOT AVAILABLE)

90104-187-000

Unavailable

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, SELF-LOCK (10MM)

90351-268-000

$2.87

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80
