- NU50MA (83) URBAN EXPRESS DELUXE, JPN, VIN# JH2AB130-DK000001
AIR CLEANER

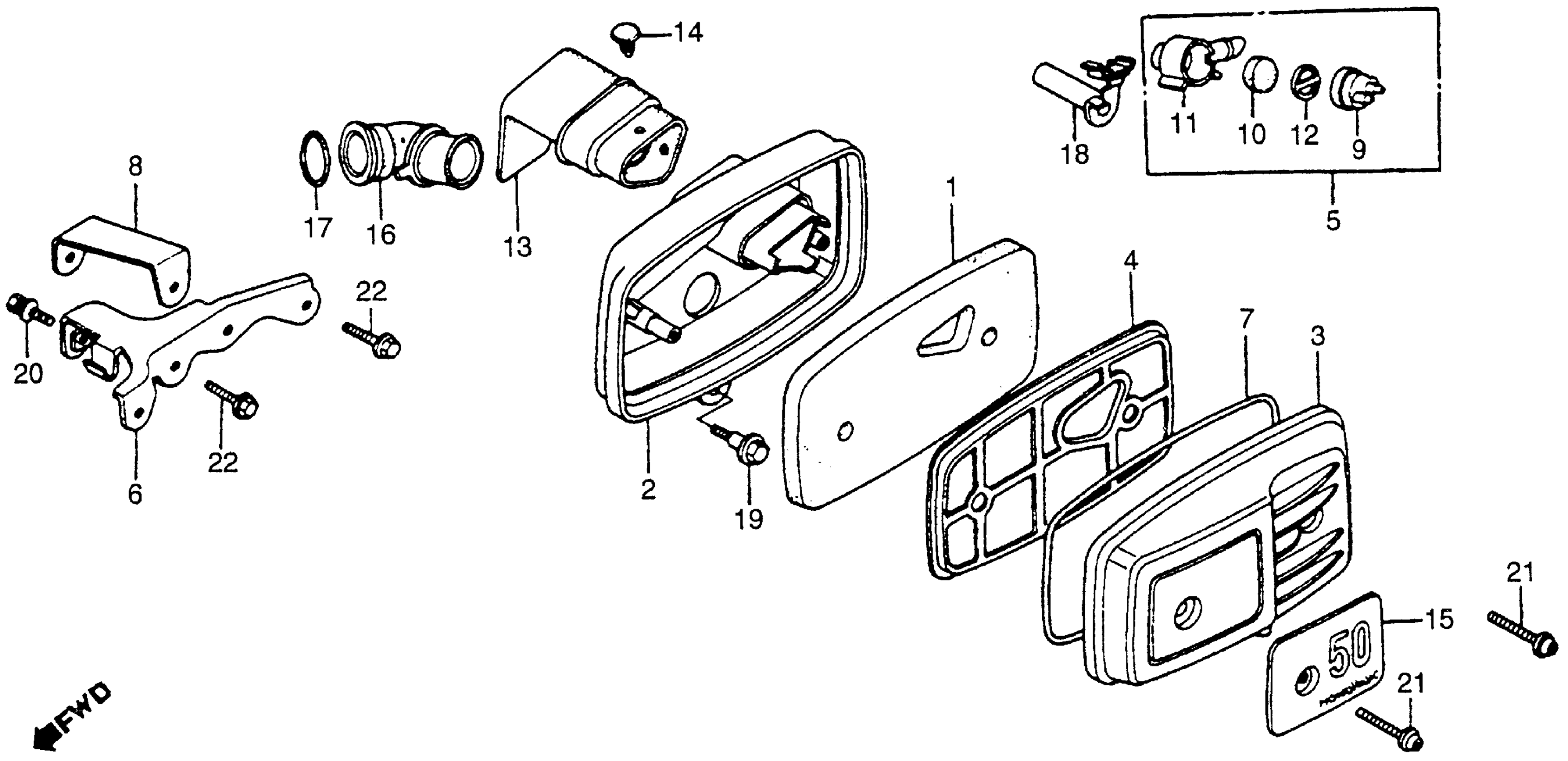

Honda NU50MA (83) URBAN EXPRESS DELUXE, JPN, VIN# JH2AB130-DK000001 AIR CLEANER Diagram
#
Description
Price
2
HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)
17206-GC1-000ZA
Unavailable
3
COVER, AIR CLEANER HOUSING *NH1* (BLACK) (NOT AVAILABLE) This part replaces 17207-GC1-000ZA.
17207-GC1-010ZA
$14.15
4
HOLDER, ELEMENT (NOT AVAILABLE)
17208-GC1-000
Unavailable
5
CHAMBER ASSY., BYSTARTER (NOT AVAILABLE)
17210-GA6-670
Unavailable
6
STAY, AIR CLEANER HOUSING
17211-GC1-010
Unavailable
7
SEAL, AIR CLEANER COVER This part replaces 17212-GC1-000.
17212-GS9-405
Unavailable
7
SEAL, AIR CLEANER COVER
17212-GS9-405
Unavailable
8
STAY, AIR CLEANER HOUSING SUPPORT (NOT AVAILABLE) | Use from Frame SN DK003753
17213-GC1-000
Unavailable
9
BODY, BYSTARTER CHAMBER
17215-GA6-670
Unavailable
10
ELEMENT, BYSTARTER CHAMBER
17216-GA6-670
Unavailable
11
CAP, BYSTARTER CHAMBER (NOT AVAILABLE)
17217-GA6-670
Unavailable
12
PLATE, BYSTARTER SETTING
17218-GB2-000
Unavailable
13
COVER, AIR CLEANER (NOT AVAILABLE)
17220-GC1-000
Unavailable
14
CLIP, CARBURETOR COVER SETTING
17222-GA6-003
Unavailable
15
EMBLEM, AIR CLEANER HOUSING (NOT AVAILABLE)
17230-GC1-000
Unavailable
16
TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)
17253-GC1-000
Unavailable
17
BAND B, AIR CLEANER IN. PIPE
17254-GA6-000
Unavailable
17
BAND B, AIR CLEANER IN. PIPE This part replaces 17254-051-010.
17254-GA6-000
Unavailable
18
COLLAR, MUFFLER SETTING (NOT AVAILABLE) This part replaces 18311-GC1-000.
18311-GC1-010
Unavailable
18
COLLAR, MUFFLER SETTING (NOT AVAILABLE)
18311-GC1-010
Unavailable
20
BOLT-WASHER (6X14) (NOT AVAILABLE)
90111-GC1-000
Unavailable
20
BOLT-WASHER (6X14) (NOT AVAILABLE) This part replaces 93481-06014-00.
90111-GC1-000
Unavailable
