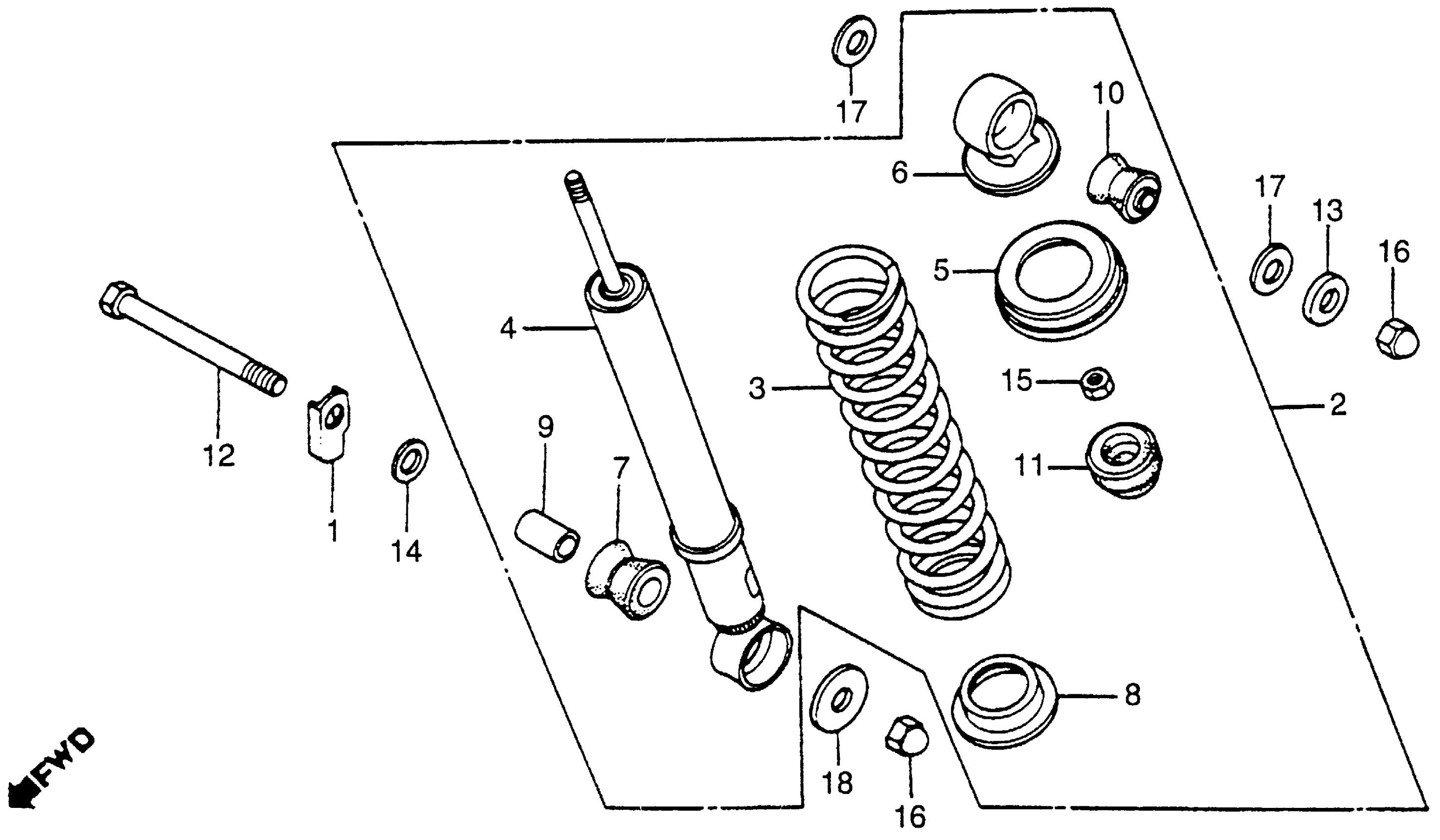

Honda NU50A (83) URBAN EXPRESS, JPN, VIN# JH2AB132-DK100001 SHOCK ABSORBER Diagram

#

Description
Price

1

STOPPER, RR. BRAKE CABLE (NOT AVAILABLE)

43451-187-000

Unavailable

2

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-GC1-671

Unavailable

3

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-GC1-671

Unavailable

4

DAMPER, RR. (NOT AVAILABLE)

52410-GC1-003

Unavailable

5

SEAT, SPRING (UPPER) (NOT AVAILABLE)

52459-187-731

Unavailable

6

METAL, RR. SHOCK ABSORBER (UPPER) (SHOWA) (NOT AVAILABLE)

52462-131-003

Unavailable

7

BUSH, RR. SHOCK ABSORBER

52485-KR3-003

$4.78

7

BUSH, RR. SHOCK ABSORBER RUBBER

52485-088-901

$4.78

8

SEAT, RR. SHOCK ABSORBER SPRING (SHOWA)

52485-131-003

Unavailable

9

COLLAR, RUBBER BUSH

52486-GA7-003

$3.74

10

BUSH, SHOCK ABSORBER

52489-187-003

Unavailable

11

RUBBER, RR. CUSHION STOP (NOT AVAILABLE)

52517-GC1-003

Unavailable

12

BOLT, RR. SHOCK (LOWER) (NOT AVAILABLE)

90108-197-000

Unavailable

13

WASHER, PLAIN (10.3MM)

90527-230-000

$1.95

14

WASHER (10.2X20)

90528-230-000

$2.97

15

NUT, HEX. (8MM)

94002-08000-0S

$1.49

16

NUT, CAP (10MM)

94021-10200-0S

Unavailable

17

WASHER, PLAIN (10MM)

94101-10000

$1.49

18

WASHER, FLAT (10MM)

94103-10000

$1.49
