DRIVE FACE + KICK STARTER

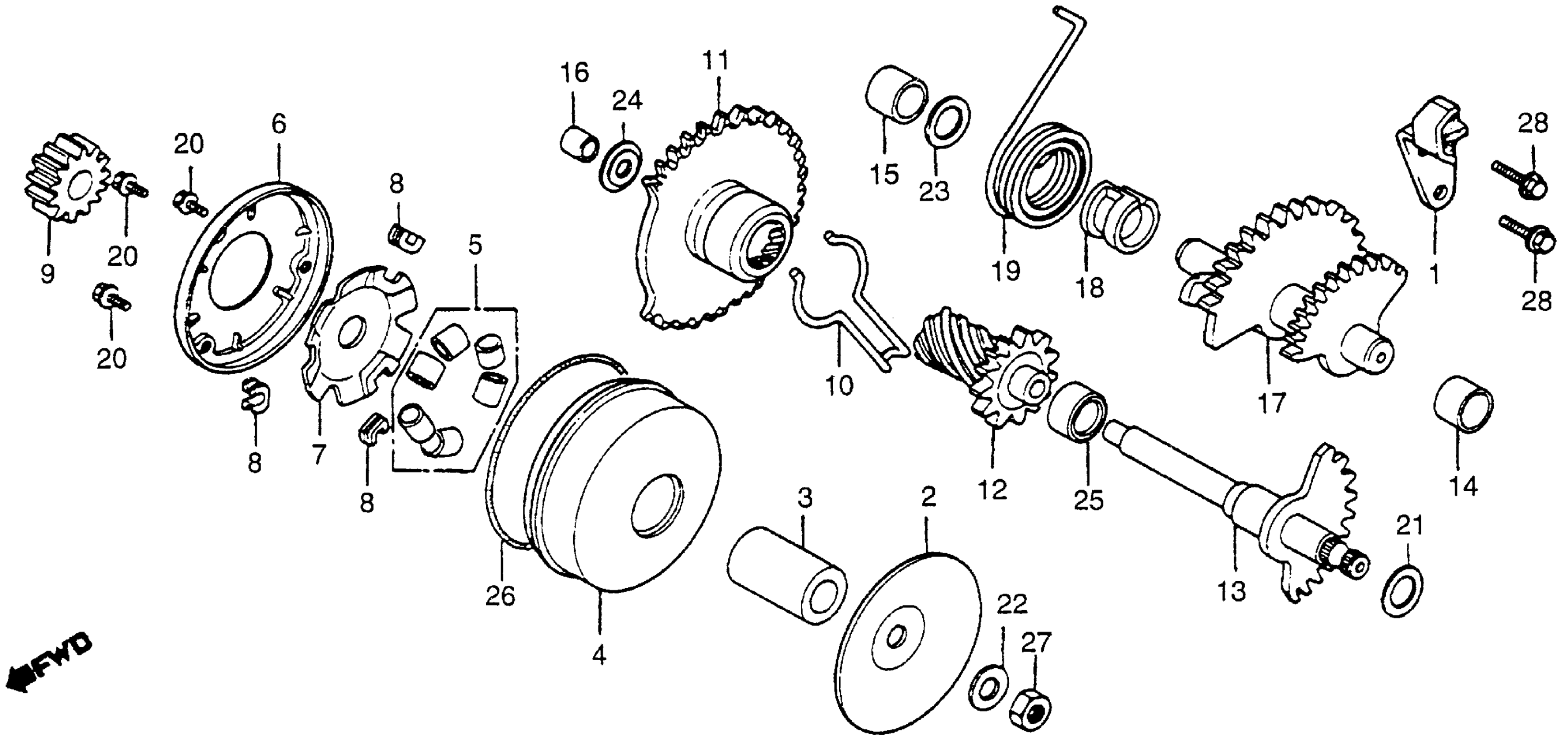

Honda NU50A (83) URBAN EXPRESS, JPN, VIN# JH2AB132-DK100001 DRIVE FACE + KICK STARTER Diagram
#
Description
Price
1
STOPPER, KICK RETURN
11205-187-013
Unavailable
2
FACE, DRIVE This part replaces 22102-187-000.
22102-197-611
Unavailable
2
FACE, DRIVE
22102-197-611
Unavailable
3
BOSS, DRIVE FACE
22105-187-000
Unavailable
4
FACE, MOVABLE DRIVE
22110-187-000
Unavailable
5
ROLLER SET, WEIGHT
22123-187-305
Unavailable
6
SEAL, MOVABLE FACE This part replaces 22126-GA7-700.
22126-187-910
Unavailable
6
SEAL, MOVABLE FACE
22126-187-910
Unavailable
7
PLATE, LAMP (NOT AVAILABLE)
22131-187-000
Unavailable
8
PIECE, SLIDE (NOT AVAILABLE)
22132-187-000
Unavailable
9
GEAR, KICK STARTER DRIVEN (NOT AVAILABLE)
28221-187-000
Unavailable
10
SPRING, STARTER GEAR FRICTION (NOT AVAILABLE)
28223-187-000
Unavailable
11
GEAR, STARTER IDLE
28230-197-000
Unavailable
12
THREAD, KICK STARTER (NOT AVAILABLE)
28240-197-000
Unavailable
13
SPINDLE, KICK STARTER
28250-197-000
Unavailable
14
BUSH B, KICK SPINDLE
28254-187-003
Unavailable
15
BUSH, IDLE SHAFT
28254-197-003
Unavailable
16
BUSH (10X14X8.5)
28255-187-003
Unavailable
17
SHAFT, IDLE This part replaces 28260-GC1-000.
28260-197-000
Unavailable
17
SHAFT, IDLE
28260-197-000
Unavailable
18
COLLAR, KICK SPINDLE
28262-197-000
Unavailable
19
SPRING, KICK STARTER (NOT AVAILABLE)
28281-197-000
Unavailable
24
WASHER (10MM)
90453-197-000
Unavailable
25
RING, SEALING (18MM) (NOT AVAILABLE)
91201-197-003
Unavailable
26
O-RING (78X2.5)
91302-187-000
Unavailable
