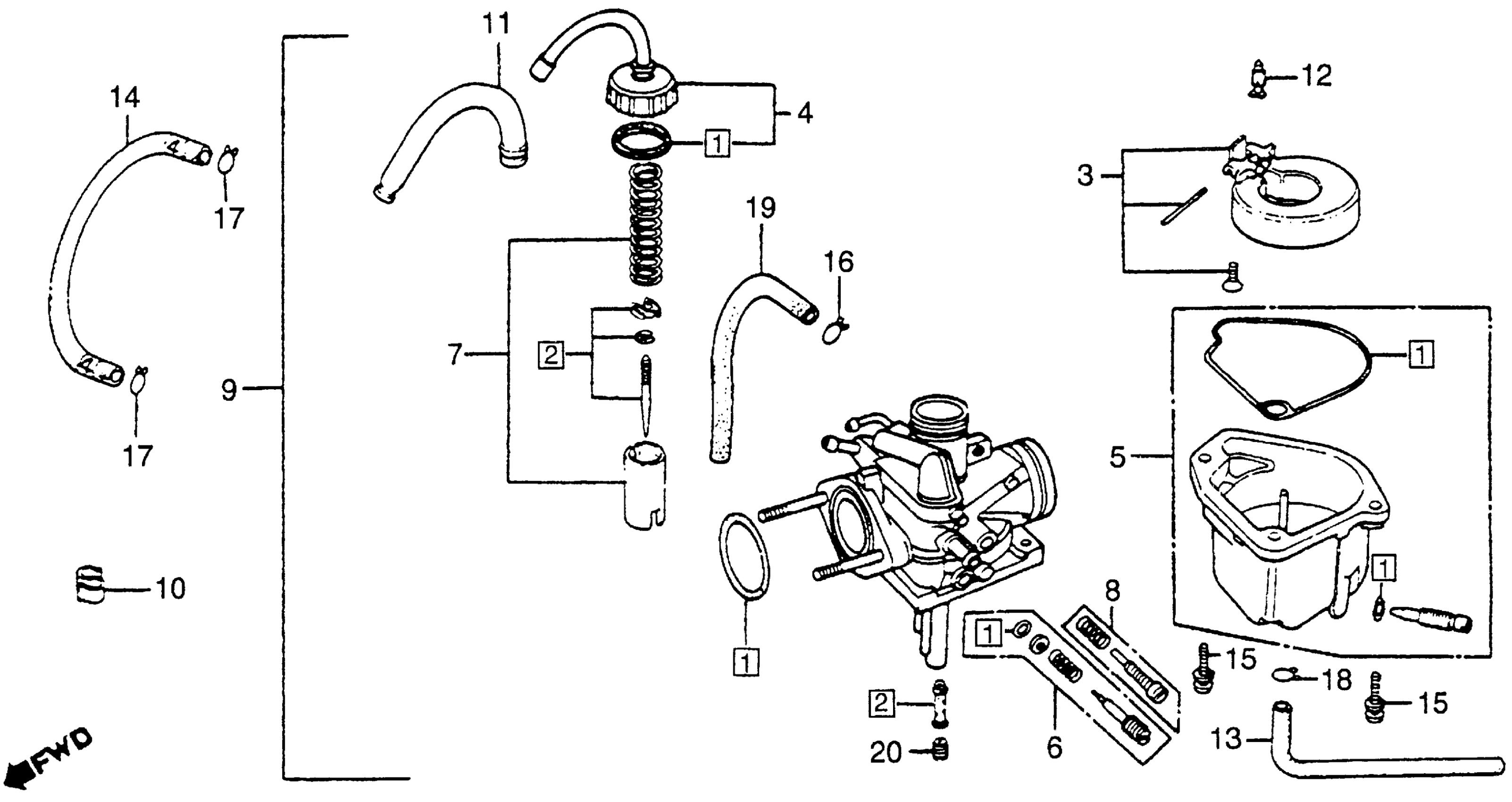

Honda NU50A (83) URBAN EXPRESS, JPN, VIN# JH2AB132-DK100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-GF8-305

$19.18

1

GASKET SET This part replaces 16010-187-003.

16010-GF8-305

$19.18

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-GC1-671

Unavailable

3

FLOAT SET

16013-147-004

$44.62

4

TOP SET This part replaces 16014-GB0-831.

16014-098-980

Unavailable

4

TOP SET This part replaces 16014-GB2-003.

16014-098-980

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-187-043

Unavailable

6

SCREW SET A (NOT AVAILABLE)

16016-191-004

Unavailable

7

VALVE SET, THROTTLE (NOT AVAILABLE)

16022-187-731

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-GC1-671

Unavailable

10

CLIP, OVERFLOW TUBE (NOT AVAILABLE)

16103-187-000

Unavailable

11

CAP, CABLE SEALING

16118-GB4-003

$13.07

12

VALVE, FLOAT

16155-883-005

$20.11

13

TUBE, FUEL This part replaces 16199-187-003.

16199-KG4-405

$9.49

14

TUBE 4, CONTROL VALVE

16608-GC1-000

Unavailable

15

SCREW-WASHER (4X12)

93892-04012-08

$1.49

16

CLIP, TUBE (B7)

95002-02070

$1.80

17

CLIP, TUBE (B8)

95002-02080

$1.80

18

CLIP, TUBE (B6.5)

95002-02650

$1.49

19

BULK HOSE, VINYL (4X7X8000) (4X7X130)

95003-07008-60M

$24.47

20

JET, MAIN (#70) | (Optional).

99101-187-0700

Unavailable

20

JET, MAIN (#85)

99101-187-0850

$11.70
