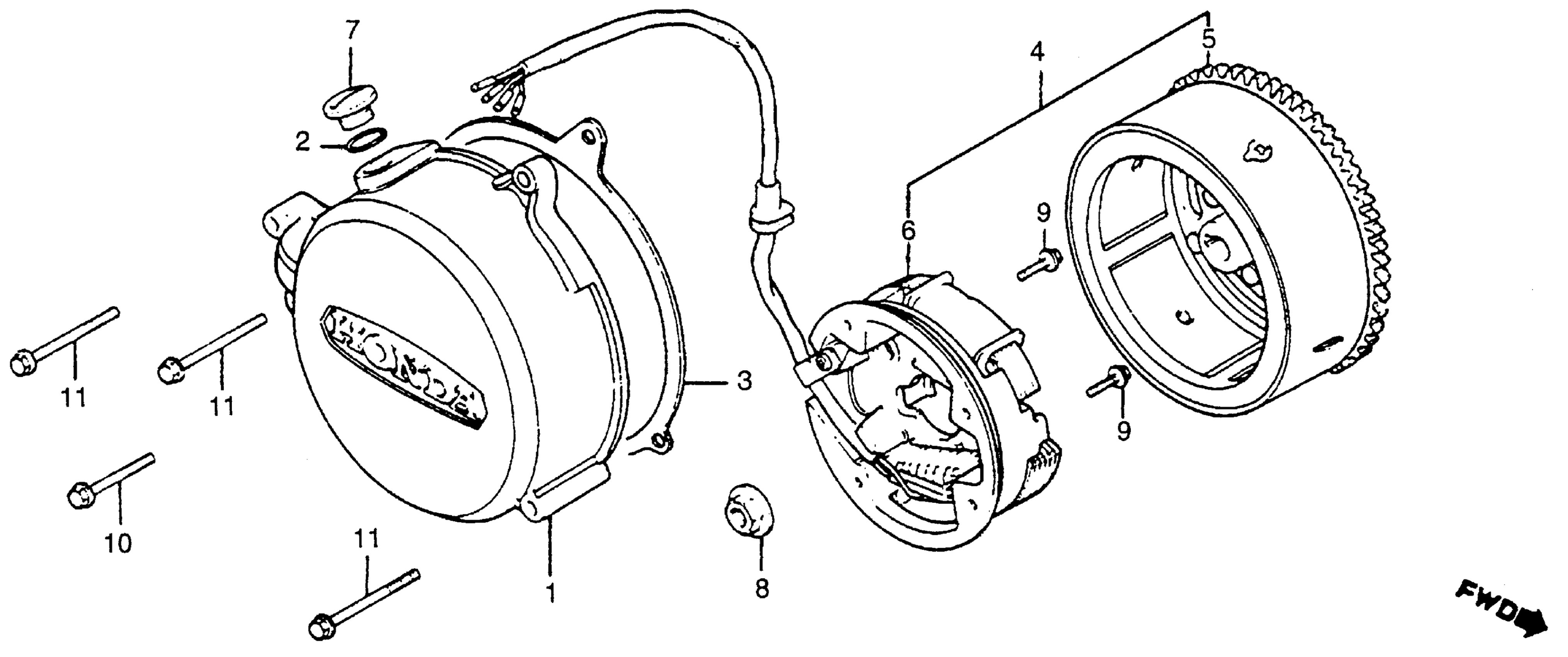

Honda NU50A (83) URBAN EXPRESS, JPN, VIN# JH2AB132-DK100001 ALTERNATOR Diagram

#

Description

Price

1

COVER, ALTERNATOR (NOT AVAILABLE)

11431-197-710

Unavailable

2

GASKET, ALTERNATOR CAP

11432-197-710

Unavailable

3

GASKET, DYNAMO COVER This part replaces 11435-197-710.

11435-197-306

Unavailable

4

ALTERNATOR ASSY.

31100-GC1-671

Unavailable

5

FLYWHEEL (NOT AVAILABLE)

31110-GC1-671

Unavailable

6

STATOR (NOT AVAILABLE) This part replaces 31120-GC1-671.

31120-GC1-701

Unavailable

7

CAP, ALTERNATOR

90084-187-700

Unavailable

8

NUT, FLANGE (10MM)

94050-10000

$1.59

9

BOLT, FLANGE (6X16) This part replaces 96000-06016-00.

96001-06016-00

$1.49

9

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

10

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

10

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

11

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

11

BOLT, FLANGE (6X50)

96001-06050-00

$2.16
