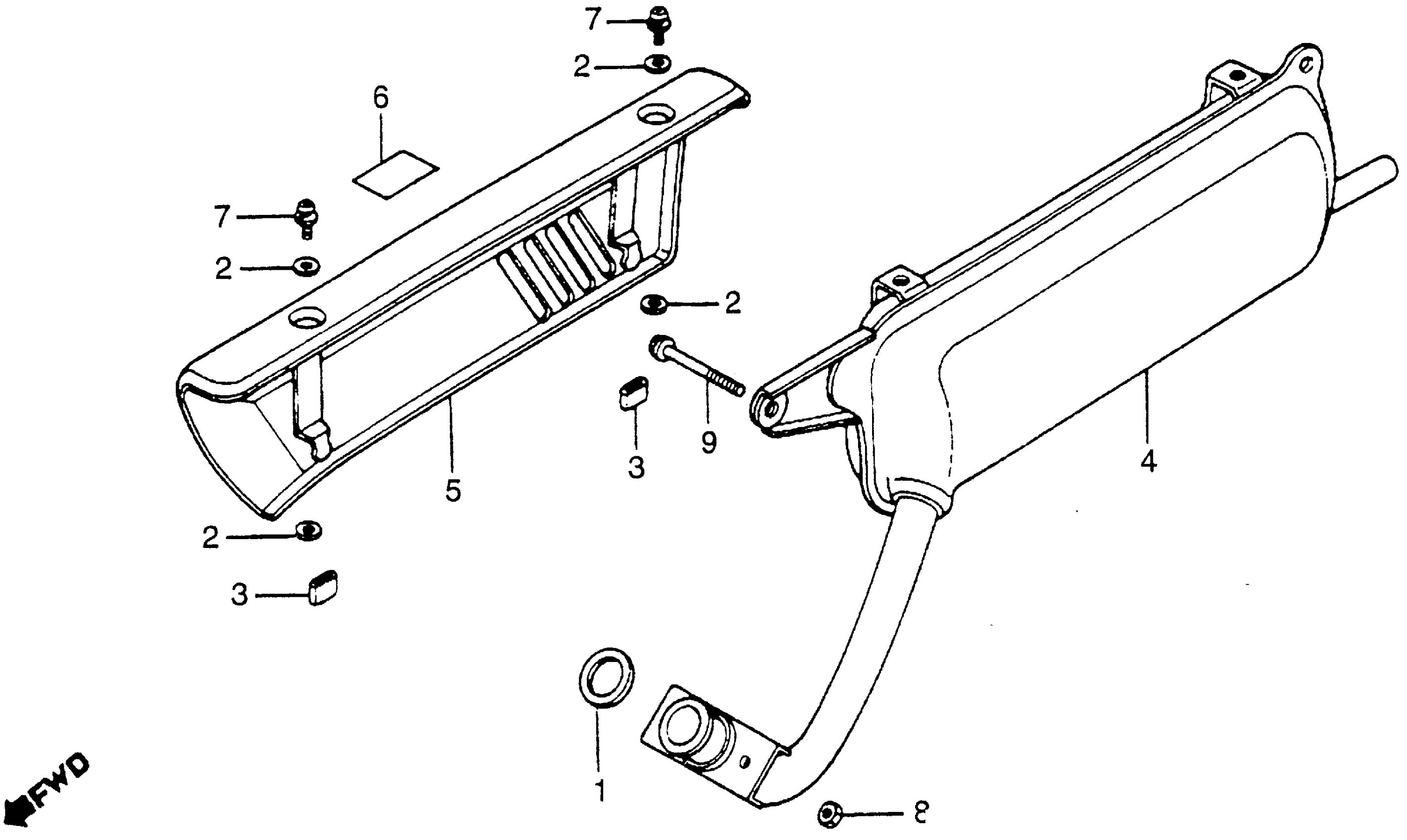

Honda NU50A (82) URBAN EXPRESS, JPN, VIN# JH2AB132-CS000010 TO JH2AB132-CK007261 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE This part replaces 18291-147-000.

18292-GY1-610

$6.34

1

GASKET, EX. PIPE This part replaces 18291-147-306.

18292-GY1-610

$6.34

1

GASKET, EX. PIPE

18292-GY1-610

$6.34

2

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

2

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

2

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

3

RUBBER, PROTECTOR GASKET

18293-147-000

$4.04

4

MUFFLER, EX. This part replaces 18300-GC1-670.

18300-GC1-737

Unavailable

4

MUFFLER, EX. This part replaces 18300-GC1-671.

18300-GC1-737

Unavailable

4

MUFFLER, EX. This part replaces 18300-GC1-677.

18300-GC1-737

Unavailable

4

MUFFLER, EX.

18300-GC1-737

Unavailable

5

PROTECTOR, MUFFLER *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

18318-GC1-000ZA

Unavailable

6

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

7

SCREW-WASHER (5X10)

93891-05010-00

$1.49

8

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

8

NUT, HEX. (6MM)

94001-06200-0S

$1.49

8

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

9

BOLT, FLANGE (8X60) This part replaces 95700-08060-00.

95701-08060-00

$1.49

9

BOLT, FLANGE (8X60)

95701-08060-00

$1.49
