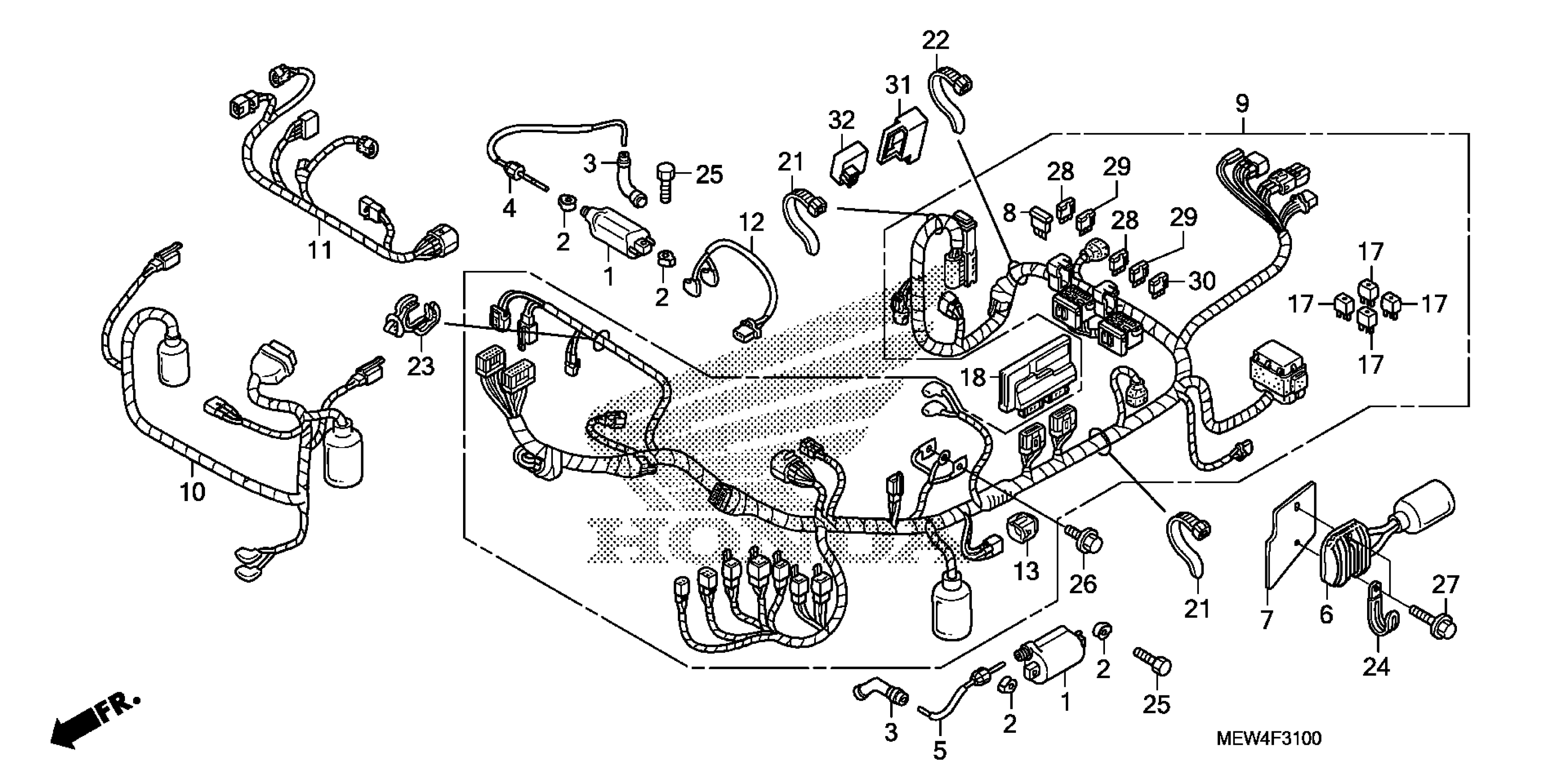

Description

Price

1

COIL, IGNITION

30500-MBG-003

$61.40

2

SPACER, IGNITION COIL

30520-ML7-000

$3.77

3

CAP ASSY., NOISE SUPPRESSOR (NGK)

30700-MEW-922

$18.65

4

WIRE ASSY., FR. IGNITION

30731-MEW-920

$64.82

5

WIRE ASSY., RR. IGNITION

30732-MEW-920

$70.75

6

RECTIFIER ASSY., REGULATE

31600-MEW-921

$361.61

7

PLATE, REGULATE RECTIFIER

31601-MEW-920

$5.49

8

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

9

WIRE HARNESS

32100-MEW-L10

$523.31

10

SUB-HARNESS, FR.

32102-MEW-L10

$67.26

11

SUB-HARNESS, THROTTLE BODY

32105-MEW-D40

$65.30

12

SUB-HARNESS, FR. IGNITION

32109-MEW-920

$16.52

13

CAP, DUMMY (4P) (RED)

32606-GEV-761

$4.52

17

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

18

PGM-FI UNIT

38770-MEW-L02

$472.89

21

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

22

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

23

CLIP, WIRE HARNESS (25MM)

90683-SA0-003

$9.47

24

CLIP, WIRE

91406-166-000

$3.83

25

BOLT, HEX. (6X22)

92101-06022-4J

$4.19

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

27

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

28

FUSE, MINI (10A)

98200-41000

$1.49

29

FUSE, MINI (20A)

98200-42000
