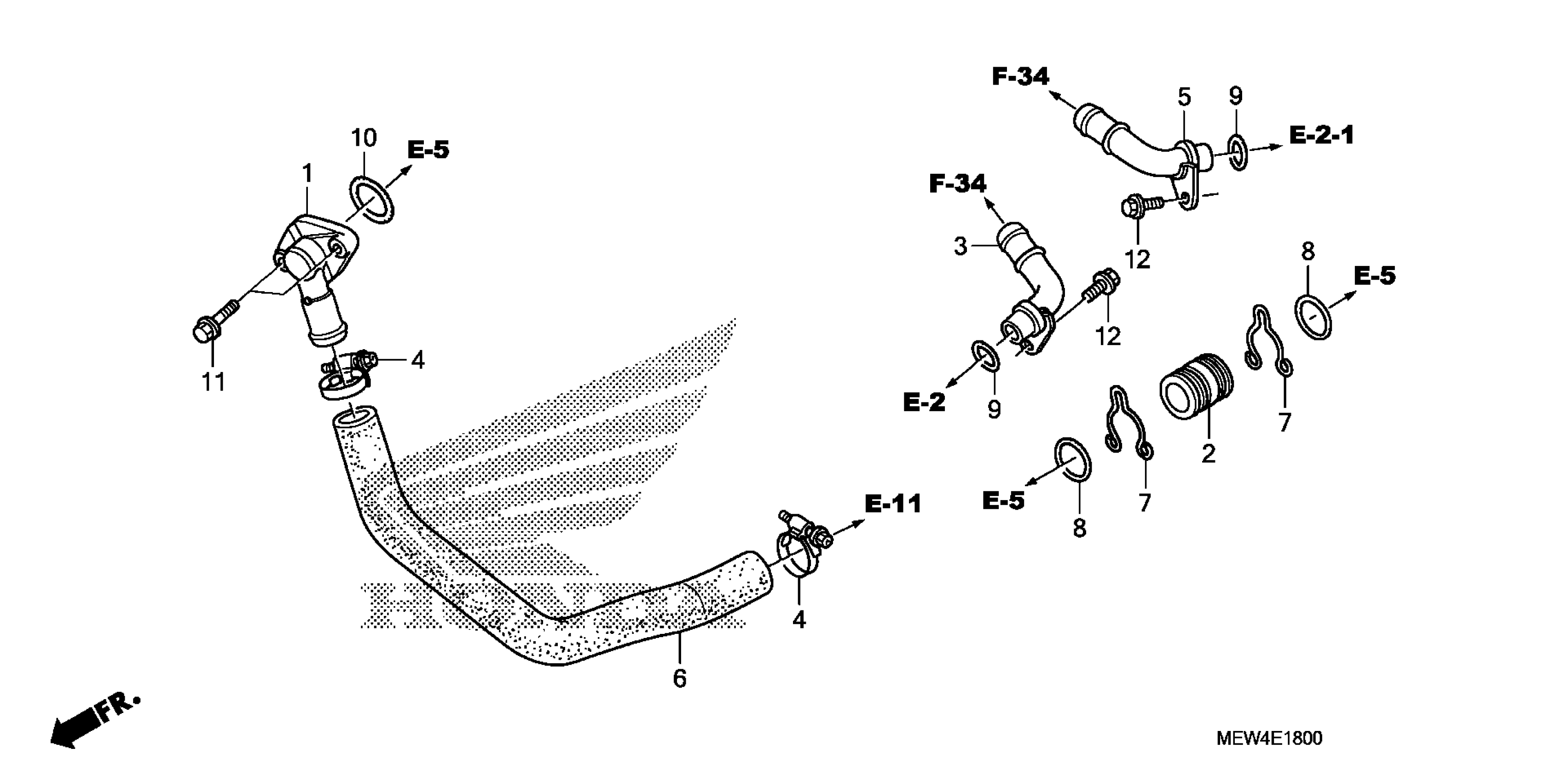

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 WATER PIPE Diagram

#

Description
Price

1

JOINT, WATER HOSE

19503-MEW-920

$26.59

2

JOINT, WATER (FR/RR)

19505-MEG-000

$13.81

3

PIPE A, WATER OUTLET

19510-MFF-D00

$20.38

4

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

5

PIPE B, WATER OUTLET

19520-MFF-D00

$20.38

6

HOSE, MAIN WATER

19531-MEW-920

$15.25

7

CLIP, RING (22MM)

90601-MEG-000

$2.48

8

O-RING (21.5X2)

91310-MB0-003

$2.67

9

O-RING (17X3) (ARAI)

91312-KE8-003

$2.58

10

O-RING

91356-169-003

$2.80

11

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

12

BOLT, FLANGE (6X16)

96001-06016-00

$0.96
