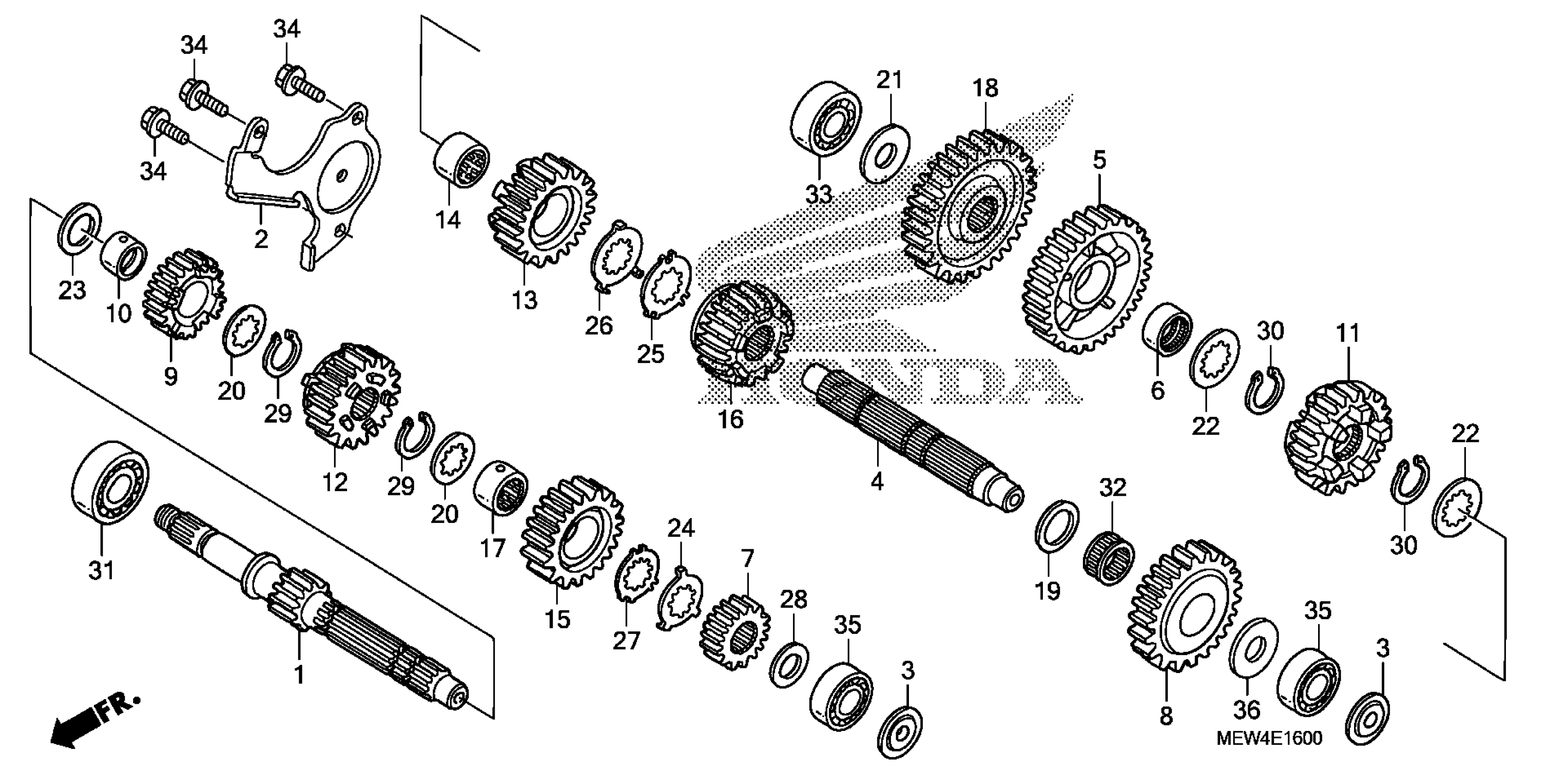

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (14T)

23210-MEW-920

$133.17

2

PLATE, BEARING SETTING

23212-MS6-920

$16.04

3

PLATE, OIL GUIDE

23219-MF5-000

$4.43

4

COUNTERSHAFT

23220-MEW-D40

$128.86

5

GEAR, COUNTERSHAFT FIRST (36T)

23421-MEW-920

$97.45

6

COLLAR, SPLINE (28X10)

23422-MV1-000

$17.71

7

GEAR, MAINSHAFT SECOND (16T)

23431-MEW-920

$47.61

8

GEAR, COUNTERSHAFT SECOND (27T)

23441-MEW-920

$88.84

9

GEAR, MAINSHAFT THIRD (20T)

23451-MEW-920

$86.54

10

BUSH, COUNTERSHAFT THIRD

23452-KCY-670

$14.33

11

GEAR, COUNTERSHAFT THIRD (26T)

23461-MEW-920

$96.52

12

GEAR, MAINSHAFT FOURTH (27T)

23471-MEW-920

$96.52

13

GEAR, COUNTERSHAFT FOURTH (29T)

23481-MEW-920

$90.91

14

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$28.16

15

GEAR, MAINSHAFT FIFTH (26T)

23491-MEW-D40

$90.91

16

GEAR, COUNTERSHAFT FIFTH (24T)

23501-MEW-D40

$92.19

17

COLLAR, SPLINE (25X28X13)

23512-MV9-670

$24.70

18

GEAR, FINAL DRIVE (33T)

23725-MEW-920

$88.49

19

WASHER, THRUST (24X32X1.5)

90402-MEW-920

$2.06

20

WASHER, SPLINE (25X31X1.5)

90451-KY2-000

$3.55

21

WASHER A, THRUST (20MM)

90451-704-000

$2.91

22

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.77

23

WASHER, THRUST (25MM)

90456-MA6-000

$2.42

24

WASHER, LOCK (25MM)

90462-MR7-000

$10.01

25

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.06

26

WASHER, LOCK (28MM)

90464-MCJ-000

$5.06

27

WASHER, SPLINE (25MM)

90465-MR7-000

$9.48

28

WASHER, THRUST (20MM)

90554-MEL-000

$1.75

29

CIRCLIP (25MM)

90601-107-000

$3.49

30

CIRCLIP (28MM)

90603-MN4-000

$3.49

31

BEARING, RADIAL BALL (63/22) This part replaces 91001-MN8-911.

91002-KY4-901

$21.88

31

BEARING, RADIAL BALL (63/22)

91002-KY4-901

$21.88

32

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$9.90

33

BEARING, RADIAL BALL (6204) (TOYO)

91102-GE1-711

$18.10

34

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

35

BEARING, RADIAL BALL (6204)

96100-62040-00

$10.98

36

WASHER, THRUST (20MM)

90451-MEW-D40

$2.58
