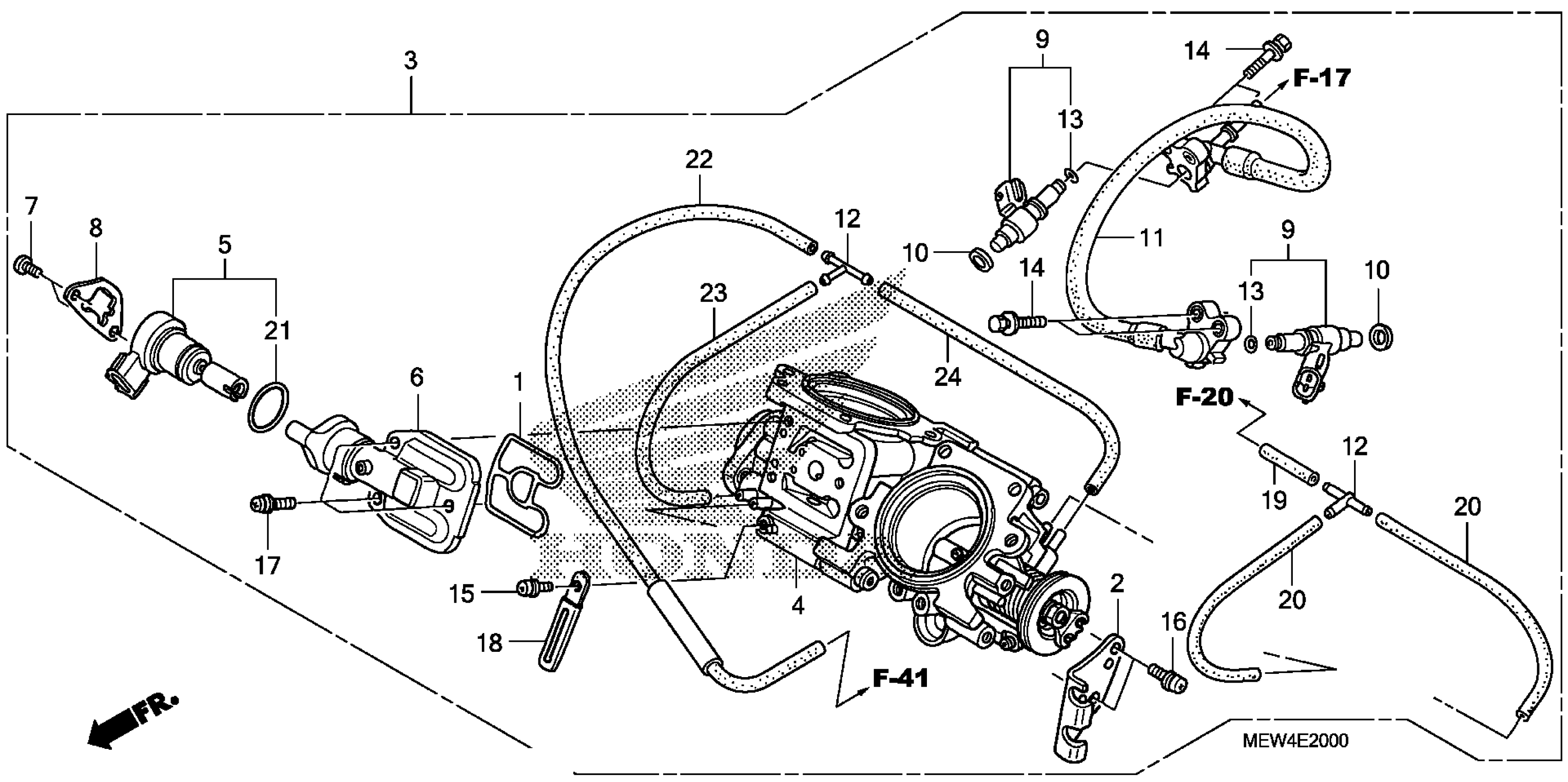

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 THROTTLE BODY Diagram

#

Description
Price

1

O-RING

16075-MEW-921

$1.99

2

STAY, WIRE

16169-MEW-921

$9.26

3

BODY ASSY., THROTTLE (GQ66C A)

16400-MEW-L01

$1,016.16

4

BODY ASSY., THROTTLE

16401-MEW-L01

$954.84

5

MOTOR ASSY. This part replaces 16430-MEW-921.

16430-MEW-922

$82.77

6

BODY, IDLE AIR CONTROL VALVE

16431-MEW-921

$69.86

7

SCREW, TORX

16433-HN8-A61

$0.33

8

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$9.42

9

INJECTOR ASSY., FUEL

16450-MEW-922

$108.65

10

SEAL RING, INJECTOR

16472-MCW-000

$2.17

11

PIPE, FUEL

16610-MEW-921

$6.93

12

JOINT A, VACUUM TUBE

17201-MG9-000

$14.31

13

O-RING (7.8X1.9)

91301-P7A-004

$3.13

14

BOLT-WASHER (5X25)

93403-05025-00

$1.12

15

SCREW-WASHER (4X8)

93892-04008-00

Unavailable

15

SCREW-WASHER (4X8) This part replaces 93892-04008-10.

93892-04008-00

Unavailable

16

SCREW-WASHER (5X12)

93892-05012-00

$0.75

16

SCREW-WASHER (5X12) This part replaces 93892-05012-10.

93892-05012-00

$0.75

17

SCREW-WASHER (5X16)

93892-05016-00

$0.58

17

SCREW-WASHER (5X16) This part replaces 93892-05016-10.

93892-05016-00

$0.58

18

CLIP (2X50)

94591-25000

$2.10

19

BULK HOSE, VACUUM (3.5X1000) (3.5X50)

95005-35001-20M

$8.69

20

BULK HOSE, VACUUM (3.5X1000) (3.5X160)

95005-35001-20M

$8.69

21

O-RING (17.8X1.9)

16435-MFJ-D01

$2.77

22

TUBE (PCV-THROTTLE BODY)

17411-MEW-L00

$5.04

23

BULK HOSE, VACUUM (3.5X1000) (3.5X150)

95005-35001-20M

$8.69

24

BULK HOSE, VACUUM (3.5X1000) (3.5X190)

95005-35001-20M

$8.69
