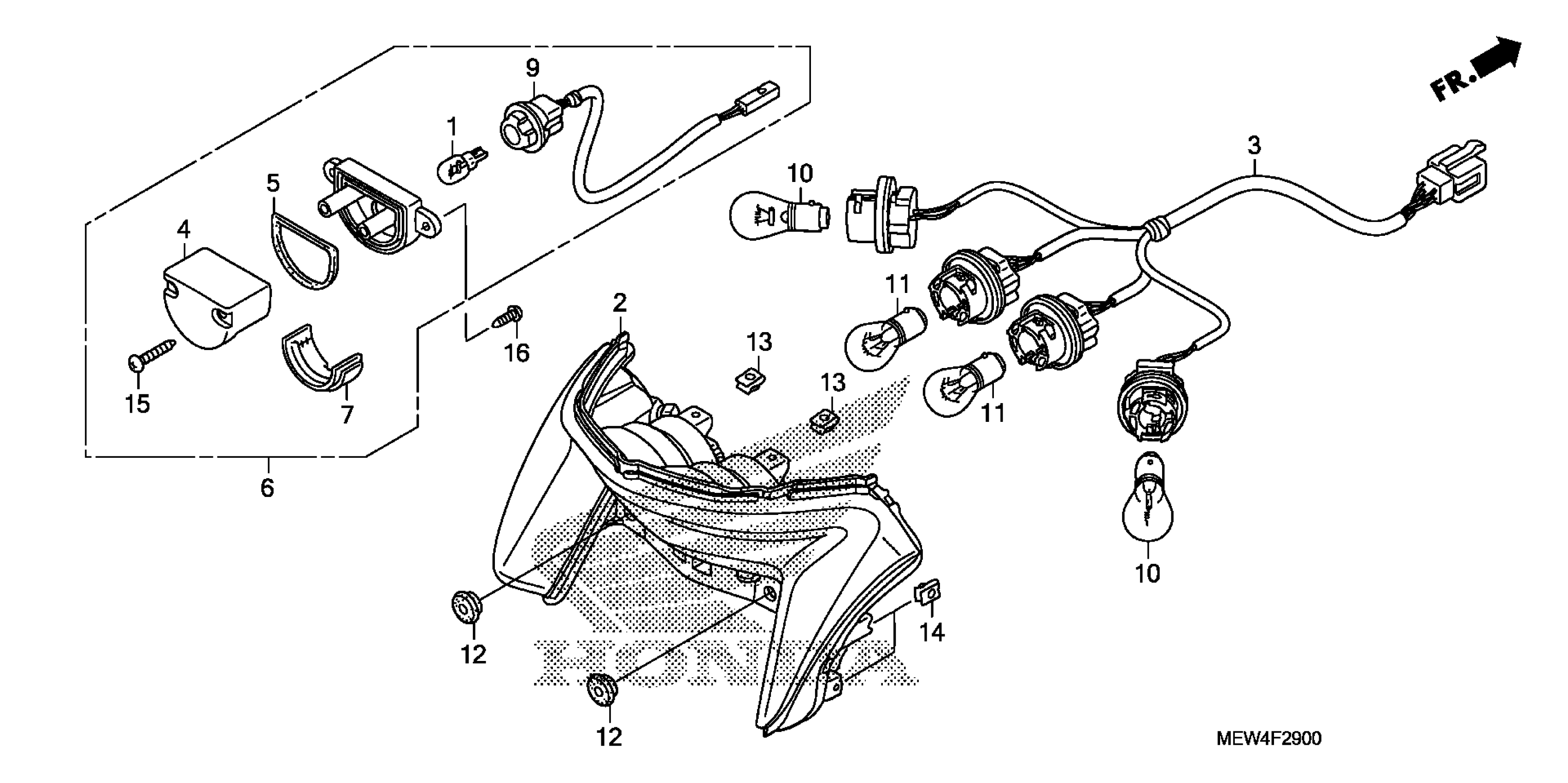

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 TAILLIGHT Diagram

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

COMBINATION UNIT, RR. (COO)

33702-MEW-305

$102.16

SOCKET

33703-MEW-D41

$64.07

COVER, LICENSE

33706-GN3-671

$13.31

GASKET, LICENSE LIGHT

33709-KAB-003

$2.66

LIGHT ASSY., LICENSE (COO)

33720-MEW-305

$91.75

LENS, LICENSE LIGHT (COO)

33721-MEW-305

$5.85

WIRE, LICENSE LIGHT

33726-MEW-920

$17.85

BULB, TURN SIGNAL (12V 21W)

34905-MEJ-671

$3.98

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)

34906-447-711

$8.64

GROMMET, SIDE COVER

83601-MN5-000

$2.80

NUT, CLIP (6MM)

90301-KBH-000

$6.01

NUT, CLIP (5MM)

90677-KAN-961

$3.89

SCREW, TAPPING (4X20)

93901-34520

$0.88

SCREW, TAPPING (4X12)

93903-34310

$0.82
