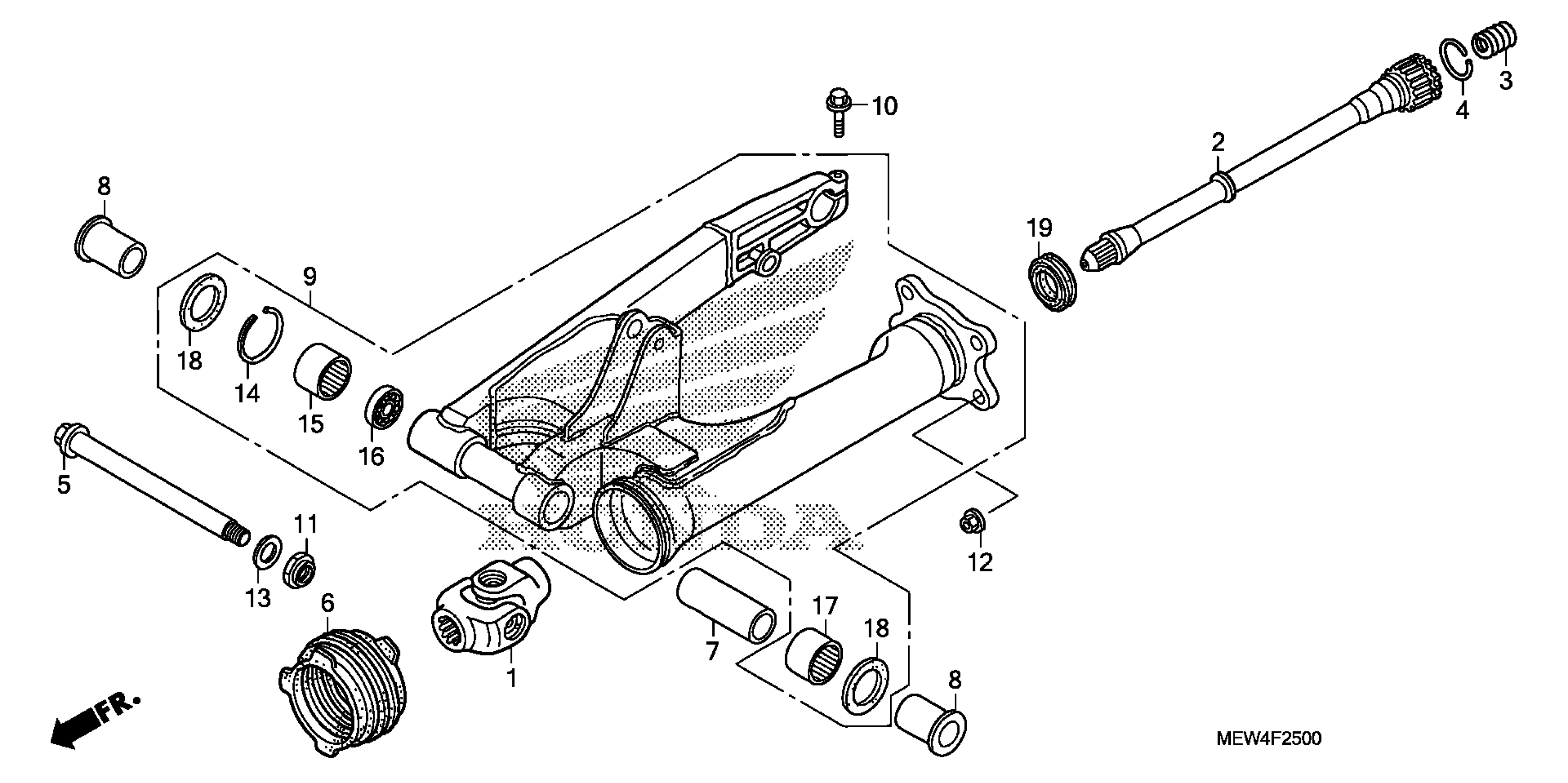

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 SWINGARM Diagram

JOINT, YOKE

40200-MR6-671

$332.43

SHAFT, PROPELLER

40201-MBL-610

$101.46

SPRING, PROPELLER SHAFT

40215-ME9-003

$5.90

RING, STOPPER

40221-MB0-000

$4.53

BOLT, SWINGARM PIVOT

52101-MEW-920

$28.62

BOOT, JOINT

52104-MEW-920

$10.95

COLLAR, CENTER PIVOT DISTANCE

52141-MEW-920

$26.34

COLLAR, PIVOT DISTANCE

52142-MEW-920

$18.93

SWINGARM SUB-ASSY., RR.

52200-MEW-920

$843.92

BOLT, FLANGE (8X32)

90105-GM9-740

$4.49

NUT, U (18MM)

90306-MCS-G00

$7.13

NUT, HEX. (10MM)

90308-357-000

$4.85

WASHER, SPECIAL (18MM)

90432-MCS-G00

$2.87

CIRCLIP (INNER) (37)

90651-MEW-920

$3.13

BEARING, NEEDLE

91071-MBW-E11

$17.20

BEARING, RADIAL BALL (20X37X9)

91071-MEW-921

$9.31

BEARING, NEEDLE

91071-MR7-003

$25.68

DUST SEAL (28X37X4)

91202-MR7-003

$6.36

OIL SEAL (27X43X7)

91261-ME9-005

$12.13
