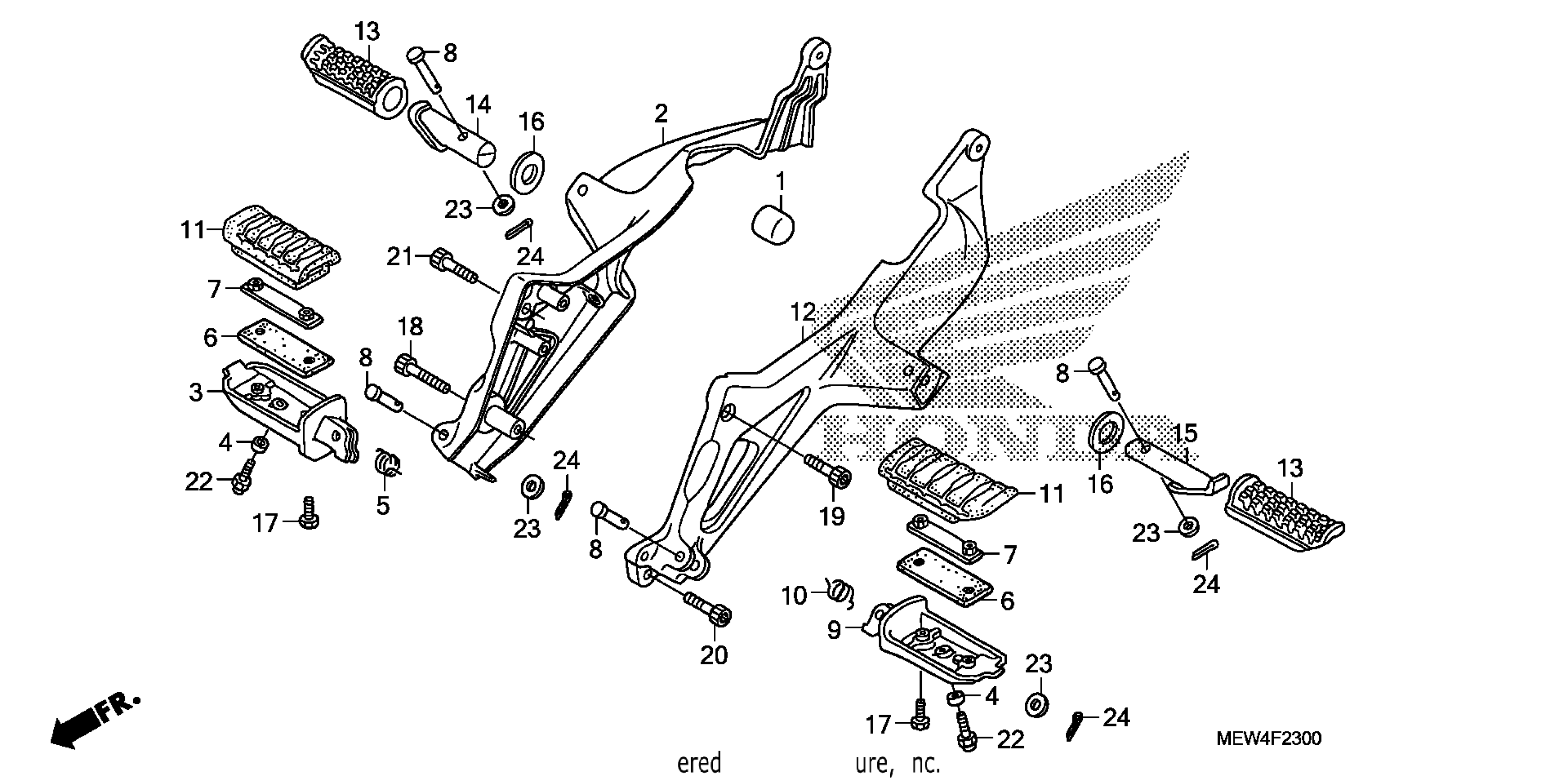

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 STEP Diagram

CUSHION, FUEL TANK (A)

17611-GF8-000

$2.67

HOLDER, R. STEP

50600-MEW-920

$212.98

ARM, R. STEP (COO)

50612-MT3-305

$44.85

COLLAR, STEP (LOWER)

50615-MEW-920

$3.08

SPRING, R. STEP RETURN

50617-MBL-610

$1.61

RUBBER

50618-MBL-610

$1.49

PLATE, STEP SETTING

50619-MBL-610

$5.67

PIN, STEP BAR

50639-ML0-010

$5.22

ARM, L. STEP (COO)

50642-MT3-305

$44.85

SPRING, L. STEP RETURN

50644-MBL-610

$1.61

RUBBER, STEP (COO)

50661-MT3-305

$6.81

HOLDER, L. STEP

50700-MEW-920

$190.36

RUBBER, PILLION STEP (COO)

50710-KET-305

$2.80

BAR, R. PILLION STEP (COO)

50711-MEW-305

$10.16

BAR, L. PILLION STEP (COO)

50712-MEW-305

$10.31

PLATE, PILLION STEP SIDE

50715-MEW-920

$1.49

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.70

BOLT, SOCKET (8X55)

90156-MBL-610

$8.16

BOLT, SOCKET (8X32)

90156-MCW-D00

$2.62

BOLT, SOCKET This part replaces 90157-MB1-000.

90109-MB0-000

Unavailable

BOLT, SOCKET (8X22)

90157-ME9-000

$5.72

BOLT, CAP (8X25) (NOT AVAILABLE)

92501-08025-0A

$3.80

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49
