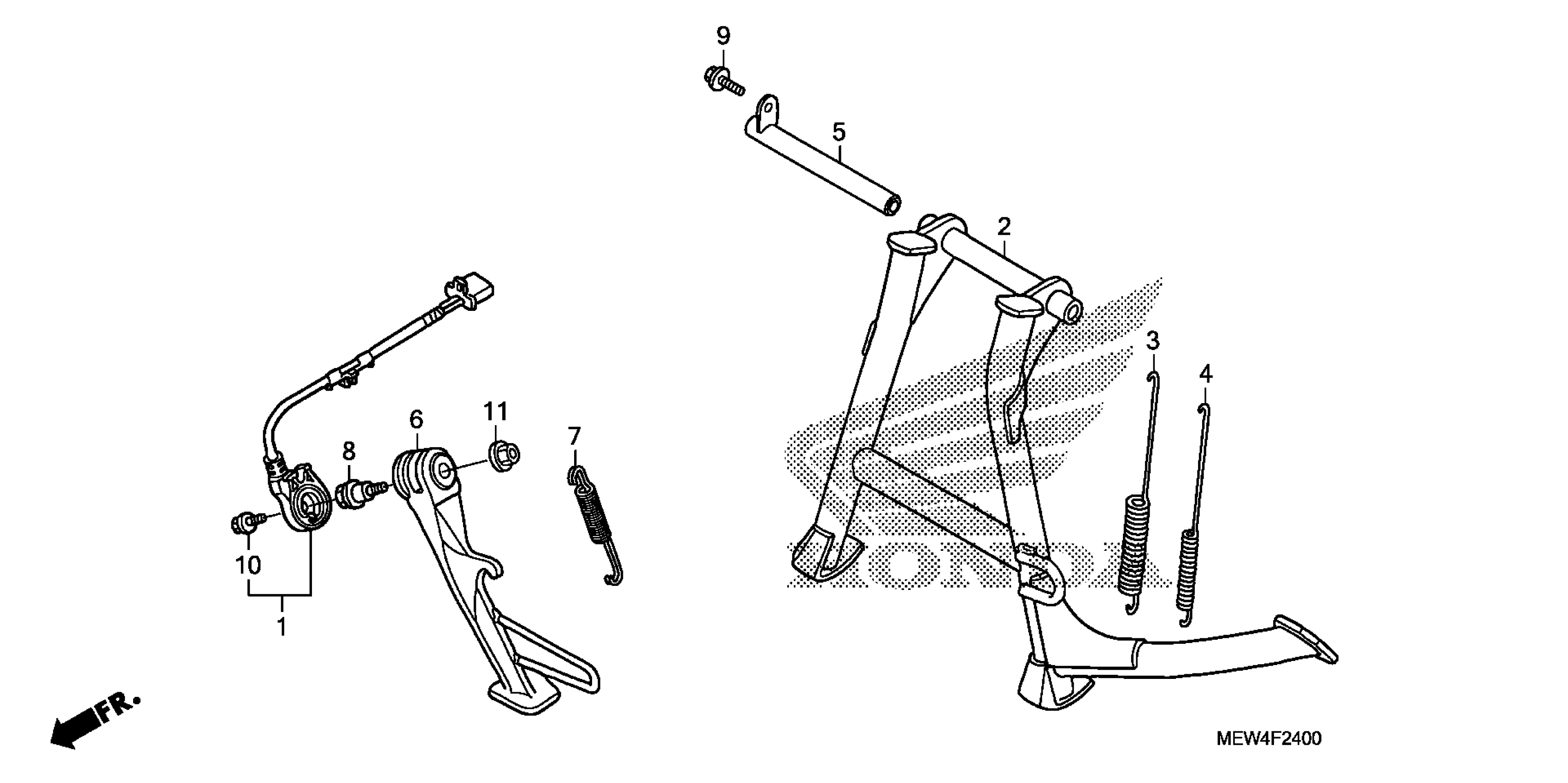

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 STAND Diagram

SWITCH SET, SIDE STAND

35070-MEW-305

$55.15

STAND, MAIN (COO)

50500-MEW-305

$110.85

SPRING, MAIN STAND

50501-MBL-610

$4.00

SUB-SPRING, MAIN STAND

50502-MBL-610

$2.31

PIPE, MAIN STAND PIVOT

50526-MEW-920

$8.95

BAR, SIDE STAND (COO)

50530-MEW-305

$81.59

SPRING, SIDE STAND

50541-MEW-920

$12.56

BOLT, SIDE STAND PIVOT

90108-MK6-670

$7.78

BOLT, FLANGE (6X14)

90112-GW3-000

$2.02

BOLT, SPECIAL (6X16)

90147-MCE-950

$1.49

NUT, SIDE STAND

90203-MF9-710

$3.67
