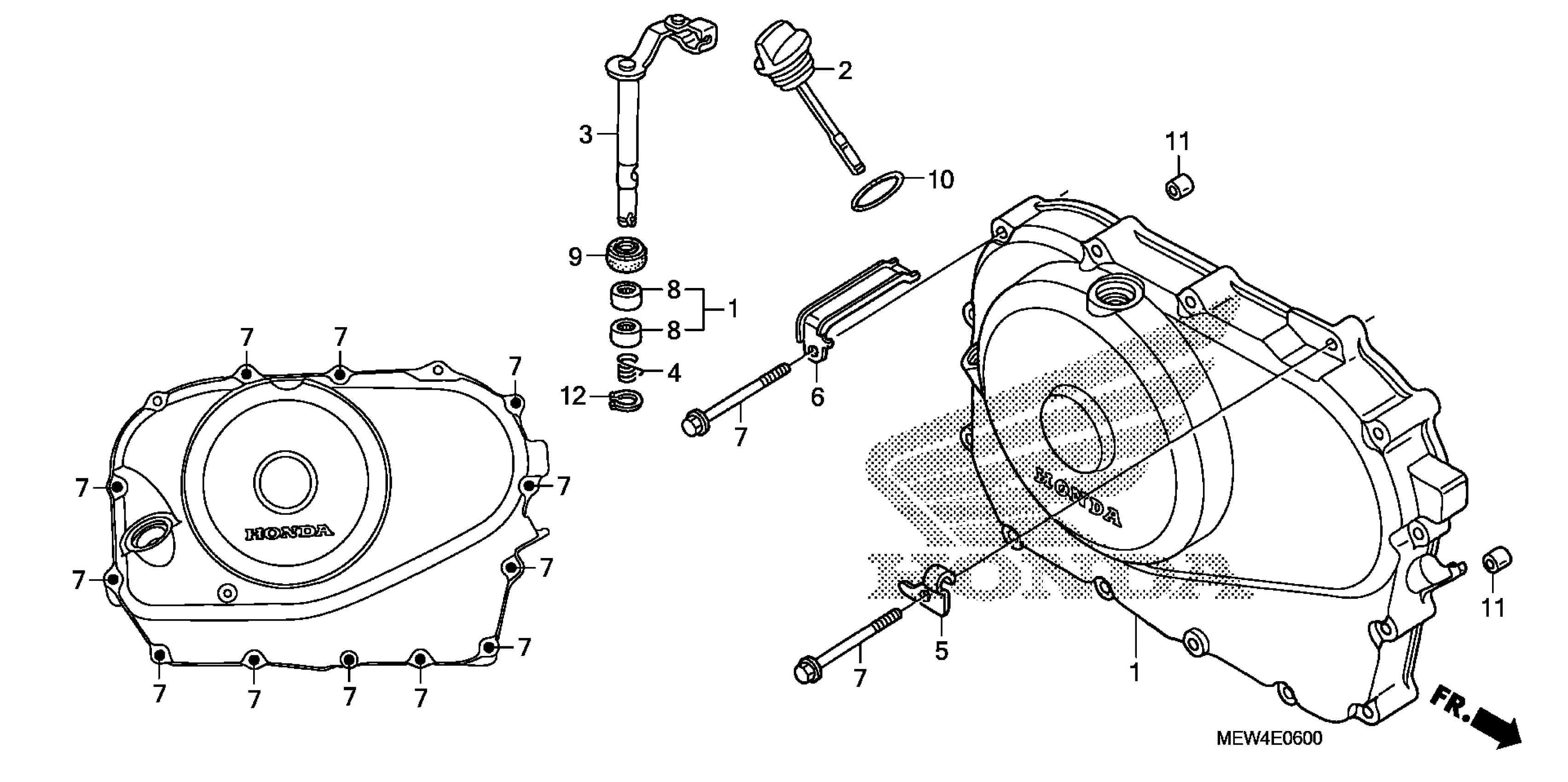

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MBL-611

$166.44

DIPSTICK, OIL

15650-MEW-920

$12.65

LEVER, CLUTCH

22810-MBS-000

$49.90

SPRING, CLUTCH LEVER

22815-413-000

$2.95

RECEIVER, CLUTCH WIRE

22825-MEW-920

$7.12

CLAMP, CABLE

32205-MEW-920

$4.03

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.08

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.83

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.57

O-RING (21.5X3.2)

91307-425-003

$2.57

PIN, DOWEL (8X14)

94301-08140

$2.76

CIRCLIP (OUTER) (10MM)

94510-10000

$1.09
