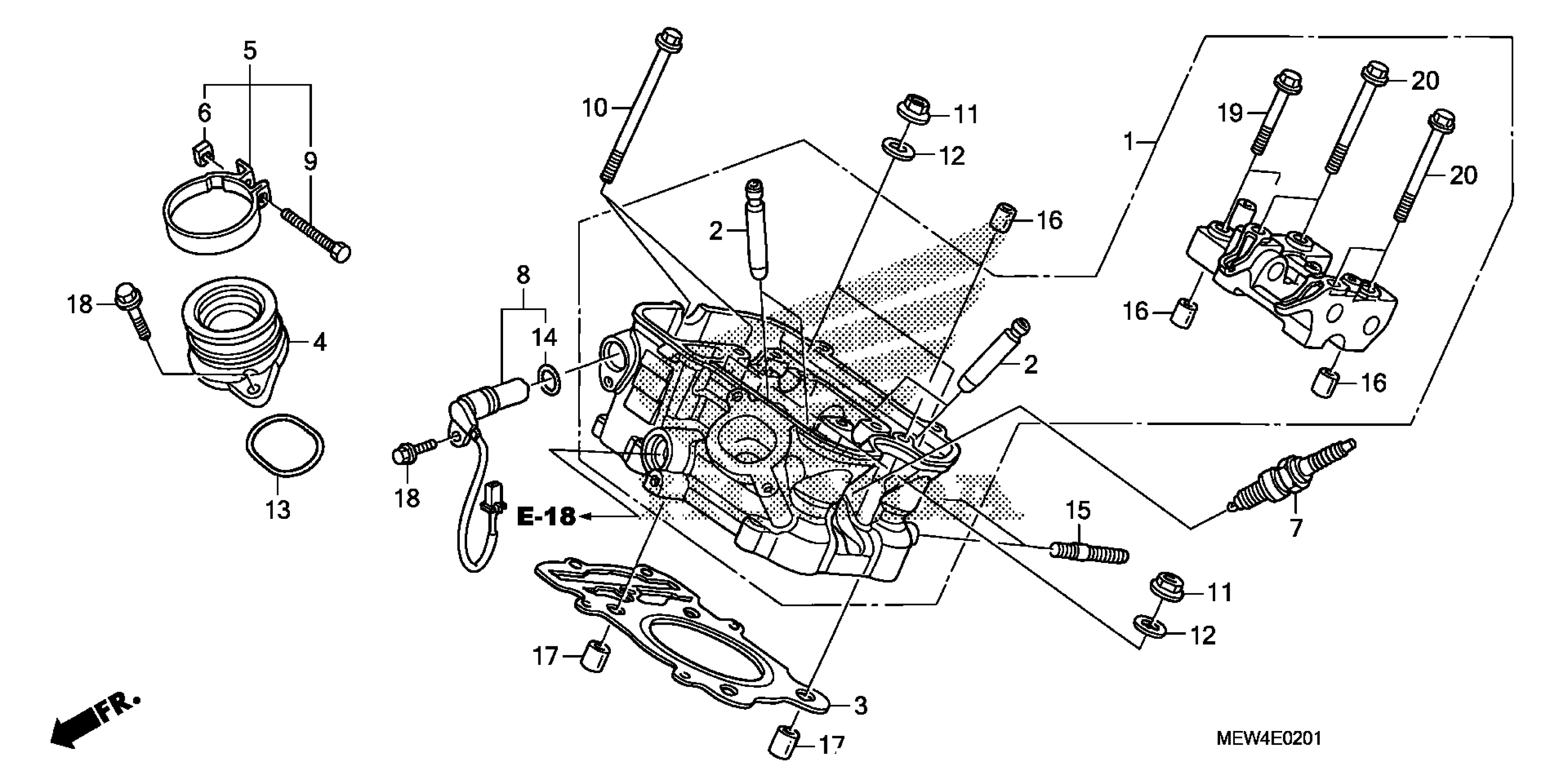

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 REAR CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., RR.

12020-MEW-920

$666.75

2

GUIDE, VALVE (OVER SIZE)

12204-MEW-P00

$15.74

3

GASKET, CYLINDER HEAD

12251-MEW-921

$135.10

4

INSULATOR, THROTTLE BODY

16210-MEW-920

$30.75

5

BAND B, INSULATOR

16218-MAT-000

$7.32

6

NUT, SQUARE (5MM)

16222-MV4-300

$1.96

7

SPARK PLUG (CPR8EA-9) (NGK)

31916-KRM-841

$4.88

8

PULSER ASSY., CAM

36140-MCH-003

$151.72

9

BOLT, RECESSED (5X32)

90005-MM4-000

$0.97

10

BOLT, FLANGE (8X135)

90006-MM5-640

$6.13

11

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.41

11

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.41

11

NUT, FLANGE (10MM)

94050-10000

$1.41

12

WASHER (10MM)

90410-HC4-000

$3.55

13

O-RING (45X2.5)

91303-397-000

$4.66

14

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

15

BOLT, STUD (8X22)

92900-08022-0E

$1.32

16

PIN, DOWEL (10X16)

94301-10160

$2.24

17

PIN, DOWEL (14X20)

94301-14200

$2.25

18

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

19

BOLT, FLANGE (8X50)

95701-08050-00

$2.23

20

BOLT, FLANGE (8X70)

95701-08070-00

$2.62
