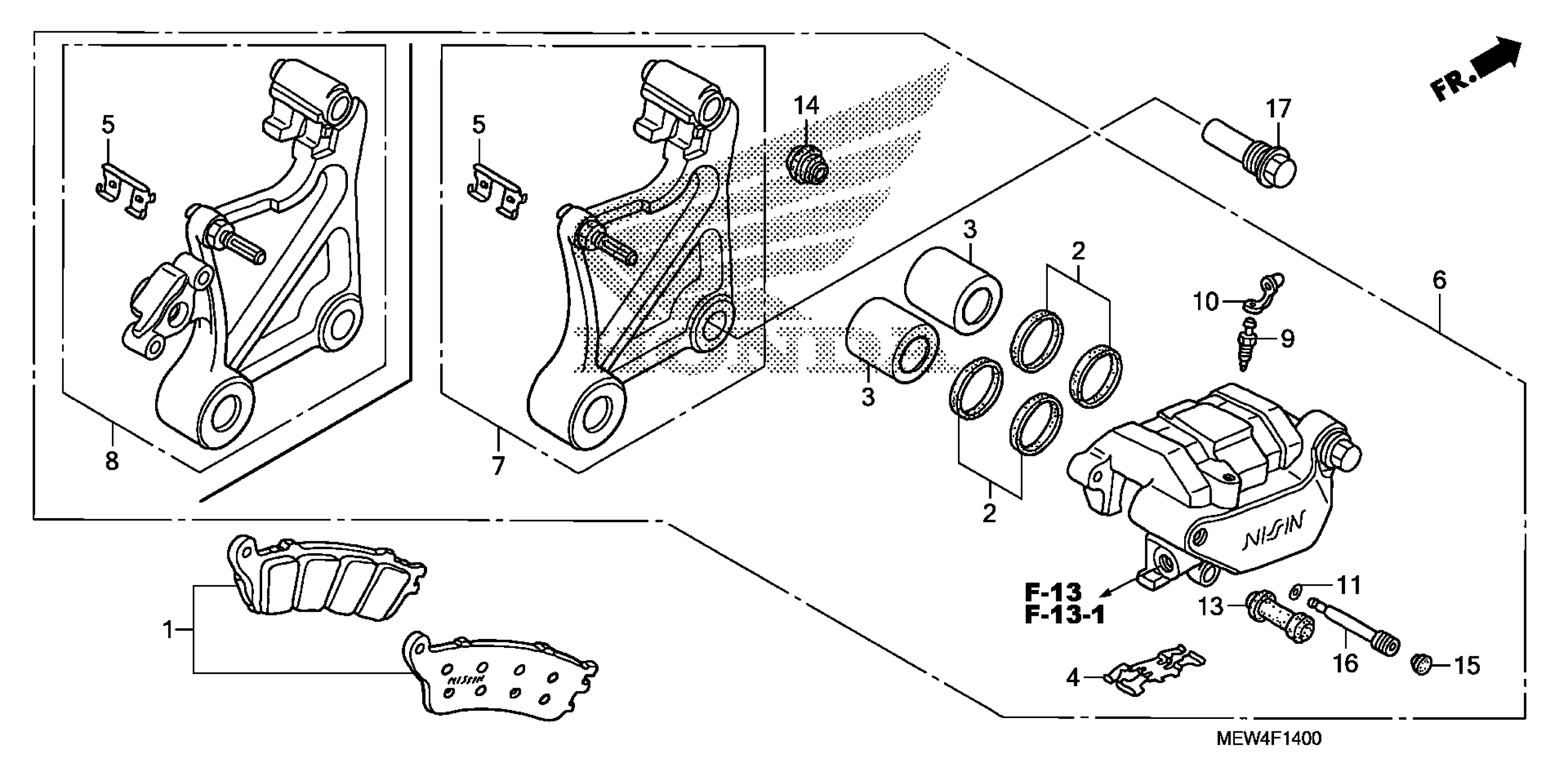

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR. This part replaces 06435-MBL-D02.

06435-MBL-D03

$56.44

PAD SET, RR.

06435-MBL-D03

$56.44

SEAL SET, PISTON

06451-MA7-405

$10.63

PISTON

43107-MA7-006

$45.55

SPRING, PAD

43108-MAJ-G41

$9.49

RETAINER, RR. BRACKET

43112-MAJ-G41

$8.23

CALIPER SUB-ASSY., RR. BRAKE

43150-MEW-851

$407.39

BRACKET SUB-ASSY., RR. CALIPER

43190-MEW-851

$169.74

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PLUG, PIN

45203-MCC-006

$2.89

PIN, HANGER

45215-MAJ-G41

$6.45

BOLT, BRAKE STOPPER

90158-MN5-000

$34.21
