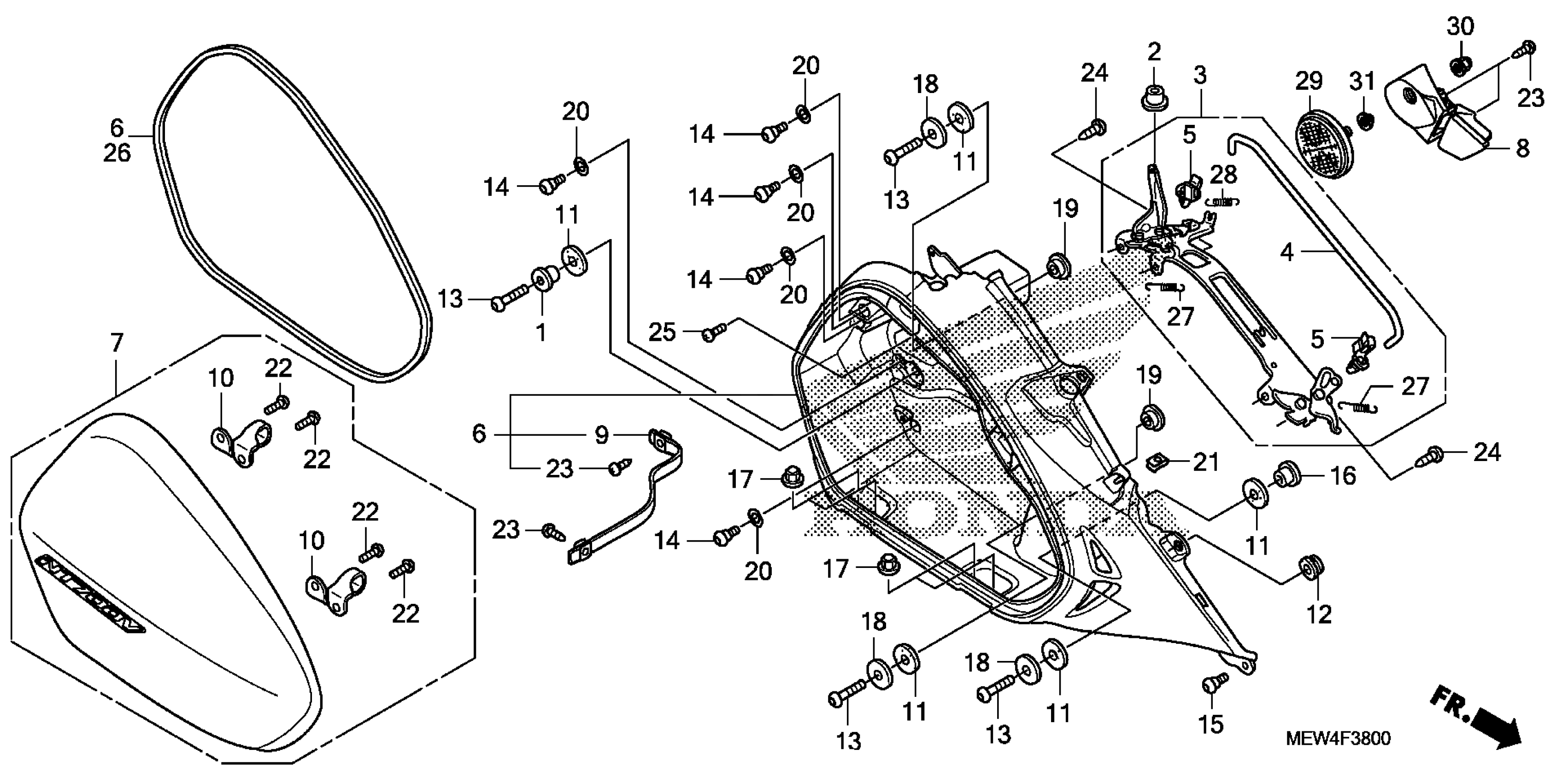

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 R. SADDLEBAG Diagram

#

Description
Price

1

COLLAR, RADIATOR MOUNTING

19052-MB0-000

$6.34

2

COLLAR, FAN COVER

19619-ZM7-300

$2.07

3

CATCH ASSY., R. SADDLEBAG

77250-MEW-D40

$75.41

4

ROD A, SADDLEBAG CATCH

77260-MEW-920

$8.00

5

JOINT, ROD

77268-MEW-920

$1.49

6

BODY ASSY., R. SADDLEBAG

81220-MEW-D40

$335.28

7

SADDLEBAG SET, R. (TYPE1) (WL) | Pearl concours black NHA65P;

81232-MEW-L60ZA

$721.82

8

LEVER ASSY., R. SADDLEBAG

81270-MEW-L01

$13.95

9

BAND, R. SADDLEBAG STOPPER

81280-MEW-920

$3.95

10

STRIKER, SADDLEBAG

81316-MEW-D20

$6.85

11

RUBBER, BAG MOUNT

81356-MN5-000

$3.43

12

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

13

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.78

14

SCREW, SPECIAL (5X12)

90106-MBY-000

$2.67

15

SCREW, SPECIAL (5X11)

90114-MEL-000

$2.41

16

COLLAR, FUEL TANK

90175-MCT-640

$3.80

17

NUT, MOLDING SIDE

90305-SJ4-003

$3.58

18

WASHER, THRUST (6MM)

90402-KW7-900

$1.79

19

COLLAR, FR. FENDER

90505-MBK-750

$2.92

20

WASHER, RUBBER

90507-KCR-000

$1.49

21

NUT, CLIP (5MM)

90677-KAN-961

$4.07

22

SCREW, TAPPING (5X12)

93901-25210

$1.49

23

SCREW, TAPPING (4X12)

93903-24380

$1.49

24

SCREW, TAPPING (5X12)

93903-25280

$1.49

25

SCREW, TAPPING (5X16)

93903-25380

$1.49

26

SEAL, SADDLEBAG LID

81234-MEW-D40

$38.31

27

SPRING, SADDLEBAG CATCH

77266-MEW-D40

$2.33

28

SPRING A, SADDLEBAG CATCH

77272-MEW-D40

$7.64

29

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

30

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

31

WASHER, SETTING

90413-369-690

$3.82
