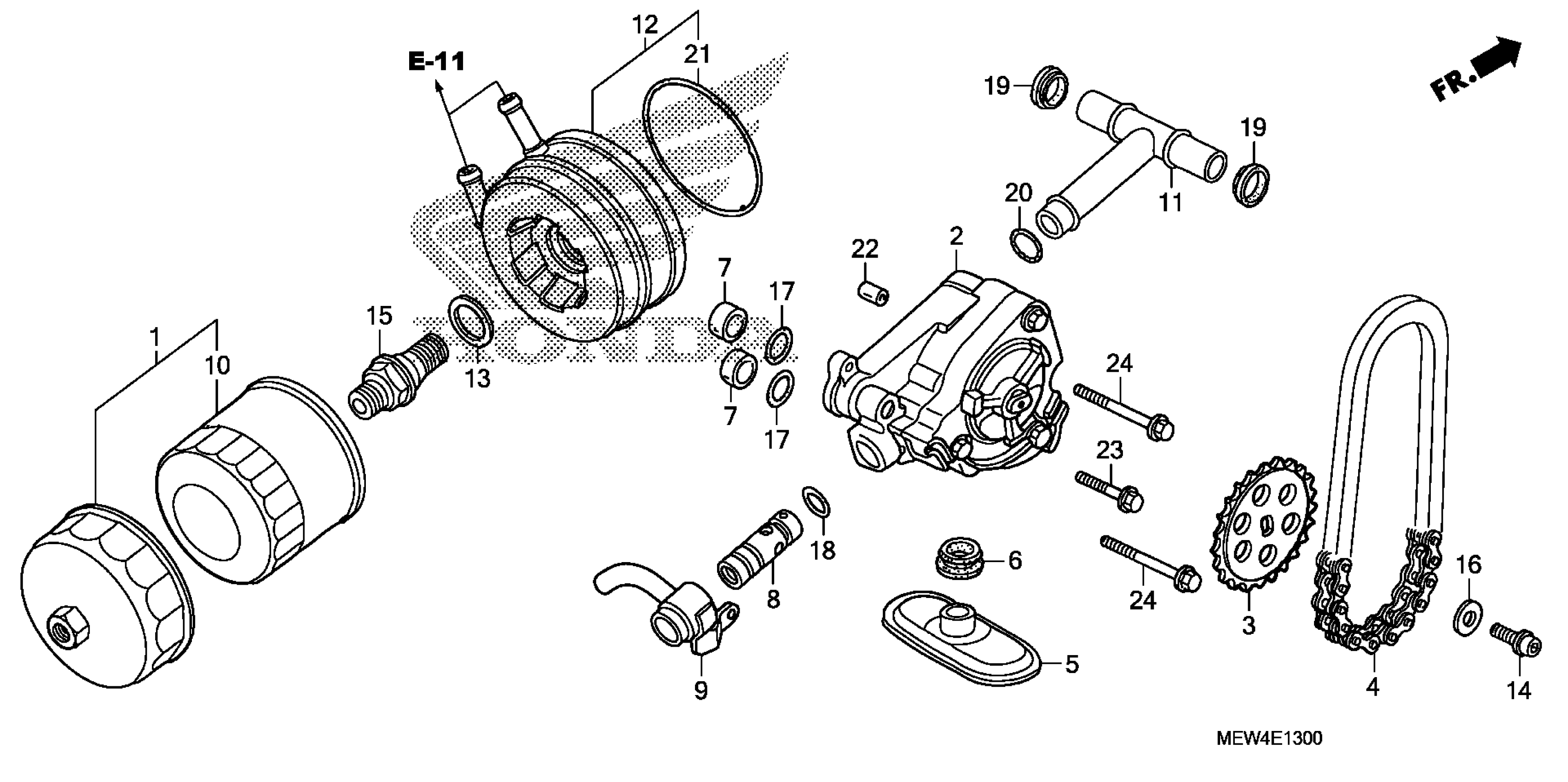

Description

Price

1

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30

2

PUMP ASSY., OIL

15100-MEW-920

$133.16

3

SPROCKET, OIL PUMP DRIVEN (27T)

15134-MEW-920

$37.92

4

CHAIN, OIL PUMP DRIVE (70L)

15141-MEW-921

$8.67

5

STRAINER, OIL

15150-MEW-920

$20.39

6

GASKET, OIL STRAINER

15154-425-000

$7.99

7

COLLAR, O-RING

15155-300-000

$3.47

8

VALVE ASSY., RELIEF

15220-MEW-920

$23.43

9

PIPE, OIL RELIEF

15240-MM9-000

$25.31

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

11

PIPE, OIL

15510-MY1-000

$33.77

12

COOLER ASSY., OIL

15700-MEW-921

$223.07

13

WASHER, SPRING (24MM)

23929-PX4-700

$13.02

14

BOLT, FLANGE SOCKET (6X14)

90009-MZ8-H00

$1.56

15

BOLT, OIL COOLER

90019-MCT-000

$17.97

16

WASHER (6X2.3)

90488-MB0-000

$4.37

17

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

18

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

18

O-RING (14.8X2.2)

91313-MG7-004

$3.67

19

OIL SEAL, PIPE

91315-MF5-003

$4.13

20

O-RING (13X2.5)

91319-300-000

$5.07

21

O-RING, OIL COOLER

91354-MEJ-641

$4.02

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

BOLT, FLANGE (6X28)

95801-06028-08

$1.73

24

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

24

BOLT, FLANGE (6X45)
