Description

Price

1

GUIDE, THROTTLE CABLE

17970-MEW-920

$13.67

4

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

5

LOCK SET

35010-MEW-L01

$397.61

6

SWITCH ASSY., COMBINATION & LOCK

35100-MEW-L01

$175.34

7

BASE, CONTACT

35101-MEW-921

$75.08

8

GUIDE, WIRE

35105-MEJ-J00

$8.89

10

KEY, BLANK | (Optional).

35121-MAS-G01

$12.74

11

HANDLEBAR (COO)

53100-MEW-305

$221.31

12

WEIGHT B, HANDLEBAR

53104-MS2-000

$24.30

13

WEIGHT, HANDLEBAR

53105-MCS-G00

$21.19

14

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.92

15

RUBBER B, HANDLE WEIGHT

53107-MEW-920

$5.18

16

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

17

HOLDER, HANDLE (UPPER)

53131-MEW-920

$36.98

18

BRIDGE, FORK TOP

53230-MEW-920

Unavailable

19

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

20

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

21

BOLT, FLANGE (8X36)

90111-KFK-000

$4.31

22

BOLT, SOCKET (8X32)

90160-MN0-000

$4.13

23

BOLT, SOCKET (6X75)

90191-MEW-920

$4.43

24

NUT, STEERING STEM

90304-MK4-000

$19.56

25

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

27

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

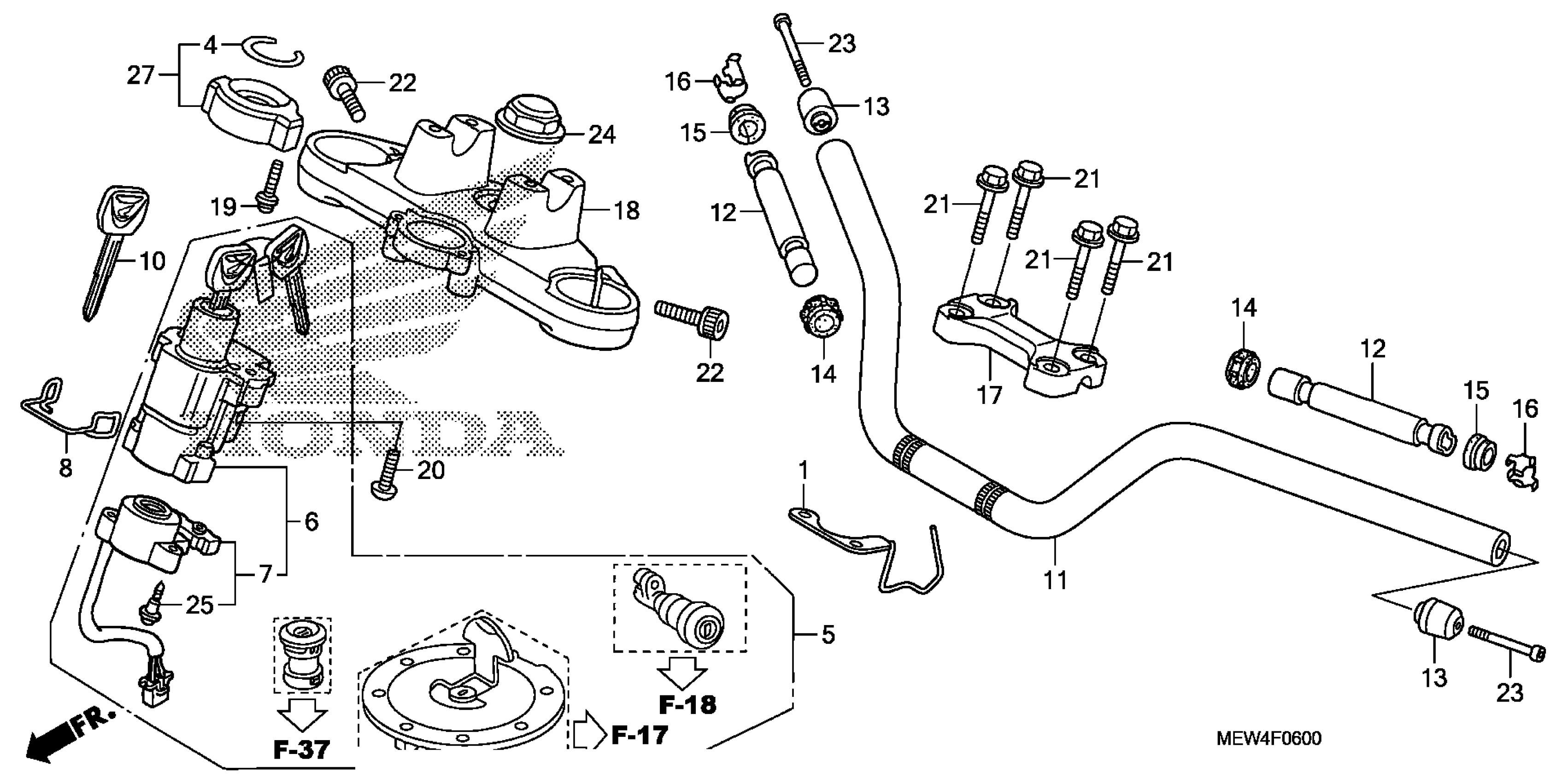

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 HANDLEBAR + TOP BRIDGE Diagram
