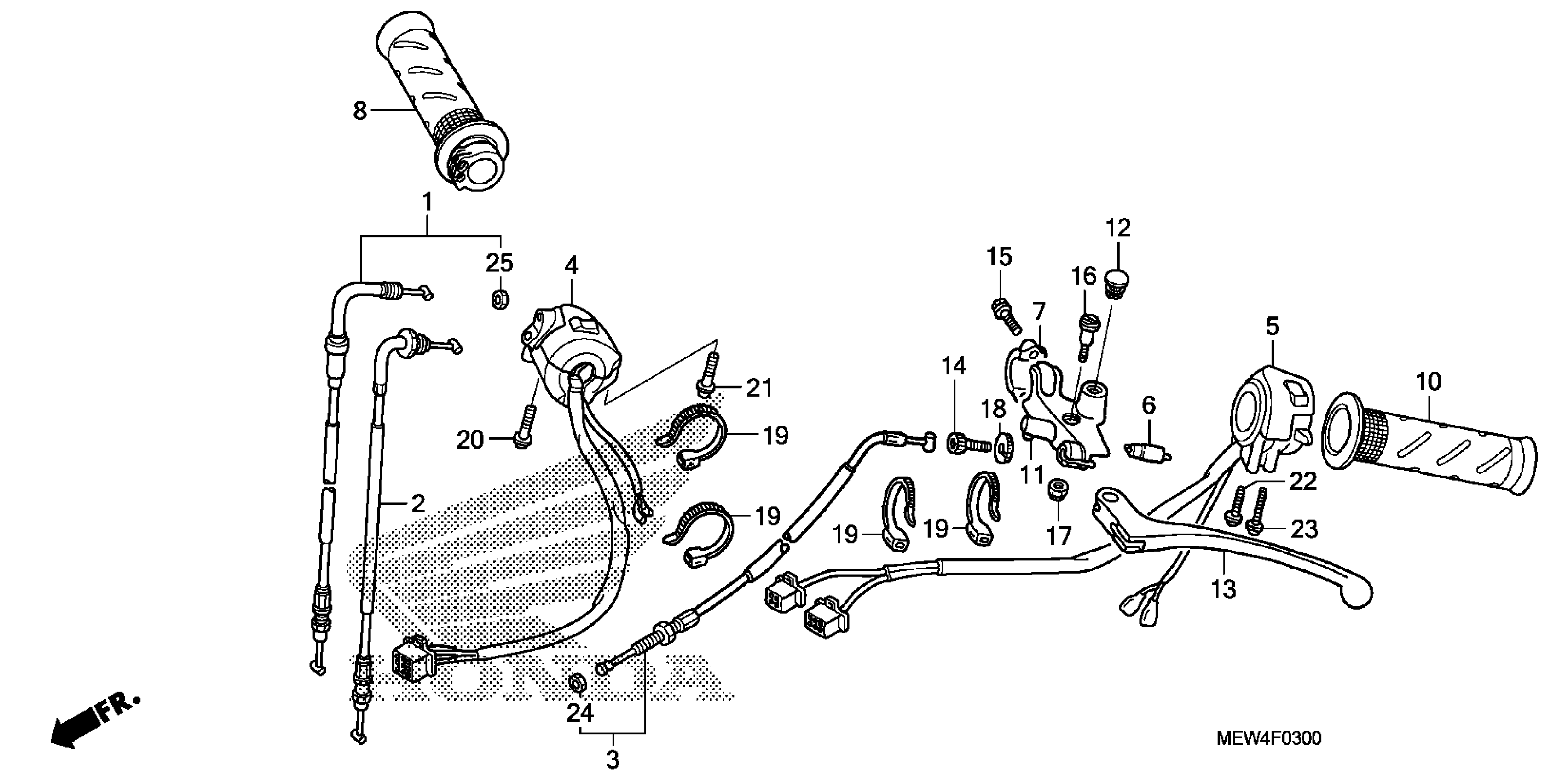

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 HANDLE LEVER + SWITCH + CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MEW-921

$29.11

2

CABLE B, THROTTLE

17920-MEW-921

$22.46

3

CABLE, CLUTCH

22870-MEW-921

$26.89

4

SWITCH ASSY., ENGINE STOP

35130-MEW-L01

$44.16

5

SWITCH ASSY., TURN SIGNAL

35200-MEW-L00

$128.56

6

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

7

HOLDER, MASTER CYLINDER

45517-MBL-610

Unavailable

7

HOLDER, MASTER CYLINDER This part replaces 45517-MBL-611.

45517-MBL-610

Unavailable

8

GRIP ASSY., THROTTLE This part replaces 53140-MCF-305.

53140-MCF-000

$34.59

10

GRIP, L. HANDLE This part replaces 53166-MGF-305.

53166-MY9-890

$18.20

10

GRIP, L. HANDLE This part replaces 53166-MY9-305.

53166-MY9-890

$18.20

11

BRACKET, HANDLE LEVER

53172-MY5-C61

$16.56

12

PLUG, HANDLE LEVER BRACKET

53174-MY5-G30

$1.49

13

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$18.46

14

BOLT, WIRE ADJUSTING

53192-MY5-730

$3.77

15

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

16

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

17

NUT, LOCK

90201-MY5-730

$1.49

18

NUT, FIXING

90321-MY5-730

$3.77

19

BAND, WIRE

90650-KW3-000

$4.48

20

SCREW-WASHER (5X20)

93892-05020-07

$1.49

21

SCREW-WASHER (5X25)

93892-05025-07

$1.49

22

SCREW-WASHER (5X35)

93892-05035-07

$1.49

23

SCREW-WASHER (5X45)

93892-05045-07

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49

25

NUT, HEX. (10MM) (SOURCE: VINTAGE PARTS INC.)

94002-10070-0S

$3.17
