Description

Price

1

FORK ASSY., R. FR. (COO)

51400-MEW-305

$553.26

2

SPRING, FR. FORK

51401-MEW-921

$78.91

3

COLLAR, SPRING

51402-MV8-901

$16.35

4

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.58

4

SEAT, SPRING (SHOWA) This part replaces 51403-MBL-611.

51403-KF0-003

$4.58

5

PIPE, FR. FORK

51410-MEW-D41

$229.07

6

RING, BACK-UP

51412-MBL-611

$5.46

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

9

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$6.72

9

SPRING, FR. REBOUND

51416-MBL-611

$5.91

10

CASE, R. (LOWER)

51420-MEW-921

$234.22

11

PIECE, OIL LOCK

51432-MBL-D01

$17.56

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

12

RING, PISTON

51437-MEW-921

$5.69

13

PIPE, SEAT

51440-MEW-921

$34.81

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

14

RING, OIL SEAL STOPPER (SHOWA) This part replaces 51447-MBL-611.

51447-KA4-711

$4.31

15

BOLT, FR. FORK

51454-MER-D01

$27.97

16

PROTECTOR, FORK PIPE

51460-MT3-611

$10.83

17

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$20.90

18

FORK ASSY., L. FR. (COO)

51500-MEW-305

$553.26

19

CASE, L. (LOWER)

51520-MEW-921

$234.22

20

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

22

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

23

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$7.88

24

O-RING (33.2X2.4)

91356-KF0-003

$3.59

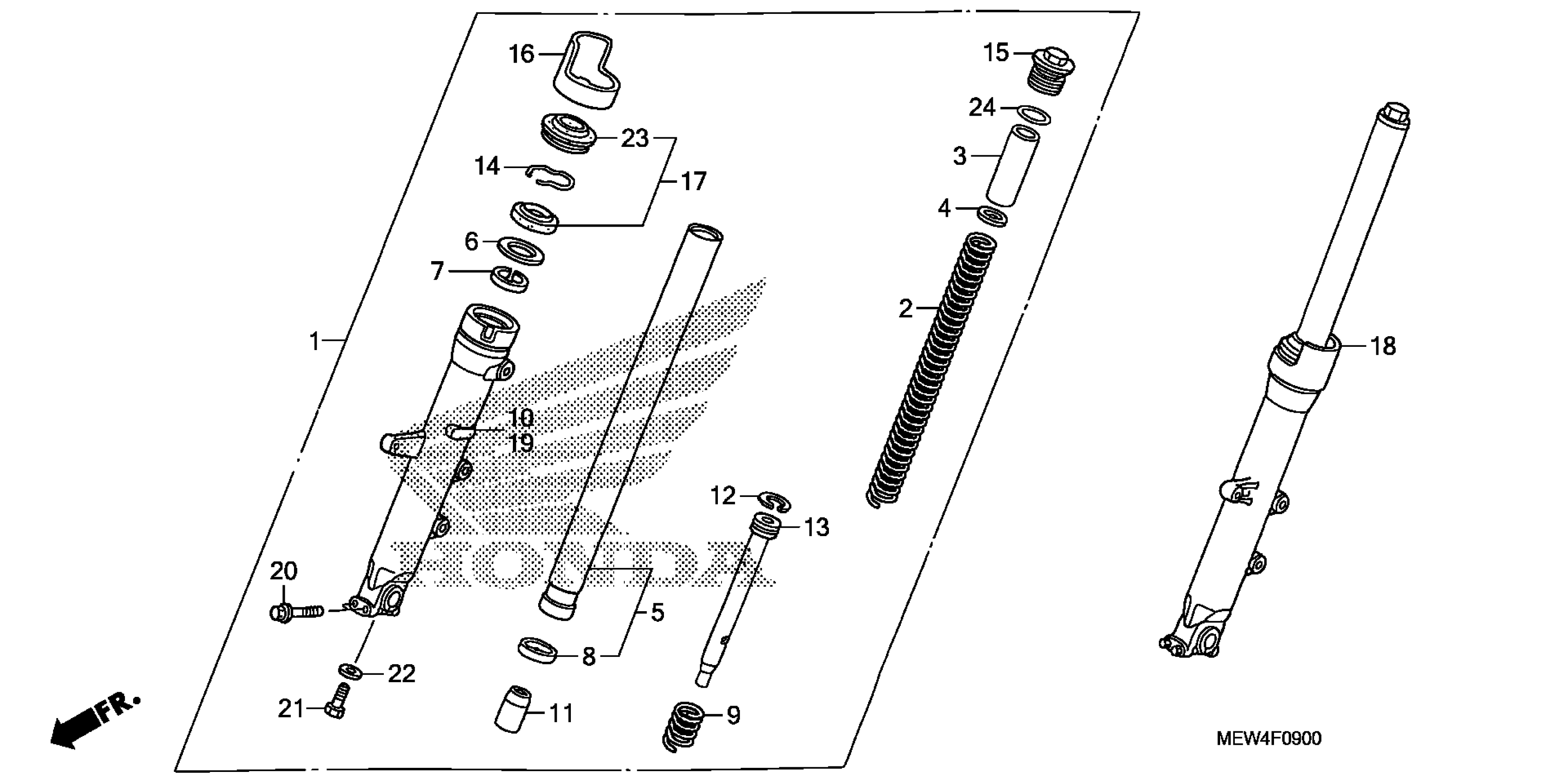

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 FRONT FORK Diagram
