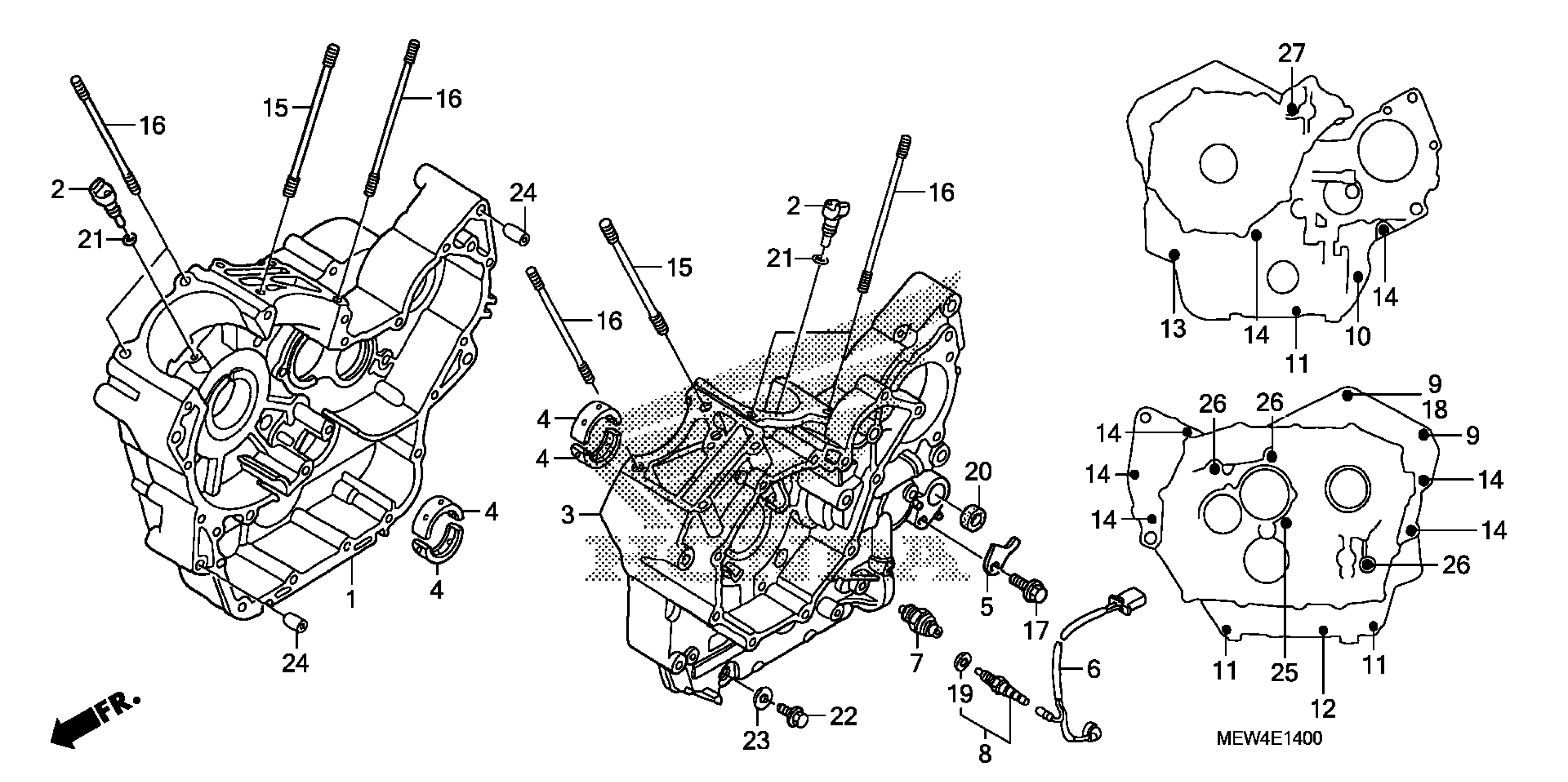

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R.

11100-MEW-920

$808.55

2

JET, OIL

11140-MEW-920

$10.36

3

CRANKCASE, L.

11200-MEW-920

$808.55

4

BEARING A, CRANKSHAFT (BLUE)

13321-MEG-003

$12.42

4

BEARING B, CRANKSHAFT (BLACK)

13322-MEG-003

$12.42

4

BEARING C, CRANKSHAFT (BROWN)

13323-MEG-003

$12.42

4

BEARING D, CRANKSHAFT (GREEN)

13324-MEG-003

$12.42

4

BEARING E, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13325-MEG-305

$11.90

4

BEARING F, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13326-MEG-305

$11.90

4

BEARING G, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13327-MEG-305

$11.90

5

PLATE, SPINDLE

24612-MAL-600

$8.88

6

SUB-HARNESS, ENGINE

32101-MEW-920

$46.22

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

8

SWITCH ASSY., NEUTRAL (TEC)

35600-MAW-601

$21.31

9

BOLT, FLANGE (8X140)

90002-MEW-920

$4.13

10

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.75

11

BOLT, FLANGE (6X50) (NSHF)

90006-GHB-730

$1.64

12

BOLT, FLANGE (6X80) (NSHF)

90006-GHB-790

$1.84

13

BOLT, FLANGE (8X70)

90008-MEW-920

$3.48

14

BOLT, FLANGE (8X80)

90010-MEG-000

$2.38

15

BOLT, STUD (12X146.5)

90012-MEW-920

$7.38

16

BOLT, STUD (10X150.5)

90013-MEW-920

$6.74

17

BOLT, FLANGE (6X14) (CT200)

90014-952-000

$2.13

18

WASHER, SEALING (8MM)

90441-ME9-000

$2.38

19

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.22

20

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.16

21

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

22

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.32

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

24

PIN, DOWEL (14X20)

94301-14200

$2.25

25

BOLT, FLANGE (8X65)

95701-08065-00

$1.57

26

BOLT, FLANGE (8X80)

95701-08080-09

$1.19

27

BOLT, FLANGE (8X125) This part replaces 95701-08125-00.

95701-08125-07

$4.43

27

BOLT, FLANGE (8X125)

95701-08125-07

$4.43
