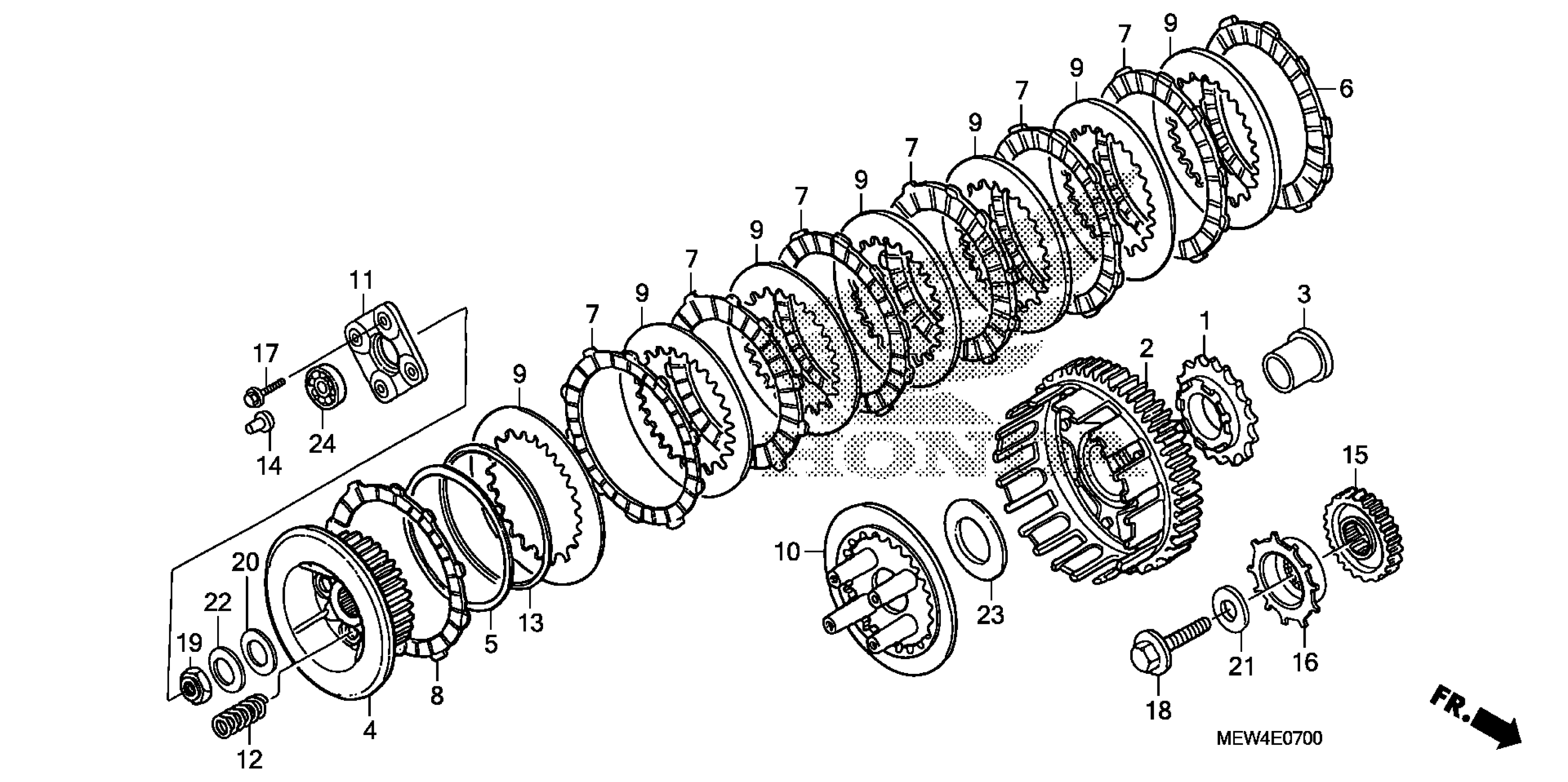

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (31T)

15131-MEW-921

$54.99

2

CLUTCH OUTER

22100-MFF-D00

$265.47

3

COLLAR, PRIMARY DRIVEN

22116-MF5-000

$45.94

4

CENTER, CLUTCH

22121-MEW-920

$66.71

5

SEAT, JUDDER SPRING

22125-435-000

$8.43

6

DISK, CLUTCH FRICTION

22201-MAV-000

$11.96

7

DISK, CLUTCH FRICTION

22201-MFF-D00

$13.66

8

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.70

9

PLATE, CLUTCH

22321-MN8-000

$8.64

10

PLATE, CLUTCH PRESSURE This part replaces 22351-MEW-920.

22351-MEW-921

$34.25

10

PLATE, CLUTCH PRESSURE

22351-MEW-921

$34.25

11

PLATE, CLUTCH LIFTER

22361-MR1-000

$19.44

12

SPRING, CLUTCH

22401-MM9-000

$3.65

13

SPRING, JUDDER

22402-435-000

$31.56

14

ROD, CLUTCH LIFTER

22847-MZ8-H00

$5.40

15

GEAR, PRIMARY DRIVE (38T)

23103-MEG-010

$78.93

16

ROTOR, PULSE

30211-MEW-920

$14.76

17

BOLT, SPECIAL FLANGE (6X30)

90007-MR1-000

$2.80

18

BOLT, UBS (12X28)

90013-415-000

$10.62

19

NUT, LOCK (18MM)

90236-HA0-000

$9.59

20

WASHER (18MM)

90401-MZ8-B40

$2.34

21

WASHER (12.5X34X5)

90403-MEW-920

$4.32

22

WASHER, LOCK

90432-428-000

$7.23

23

WASHER, THRUST (22MM)

90452-471-000

$4.56

24

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.32
