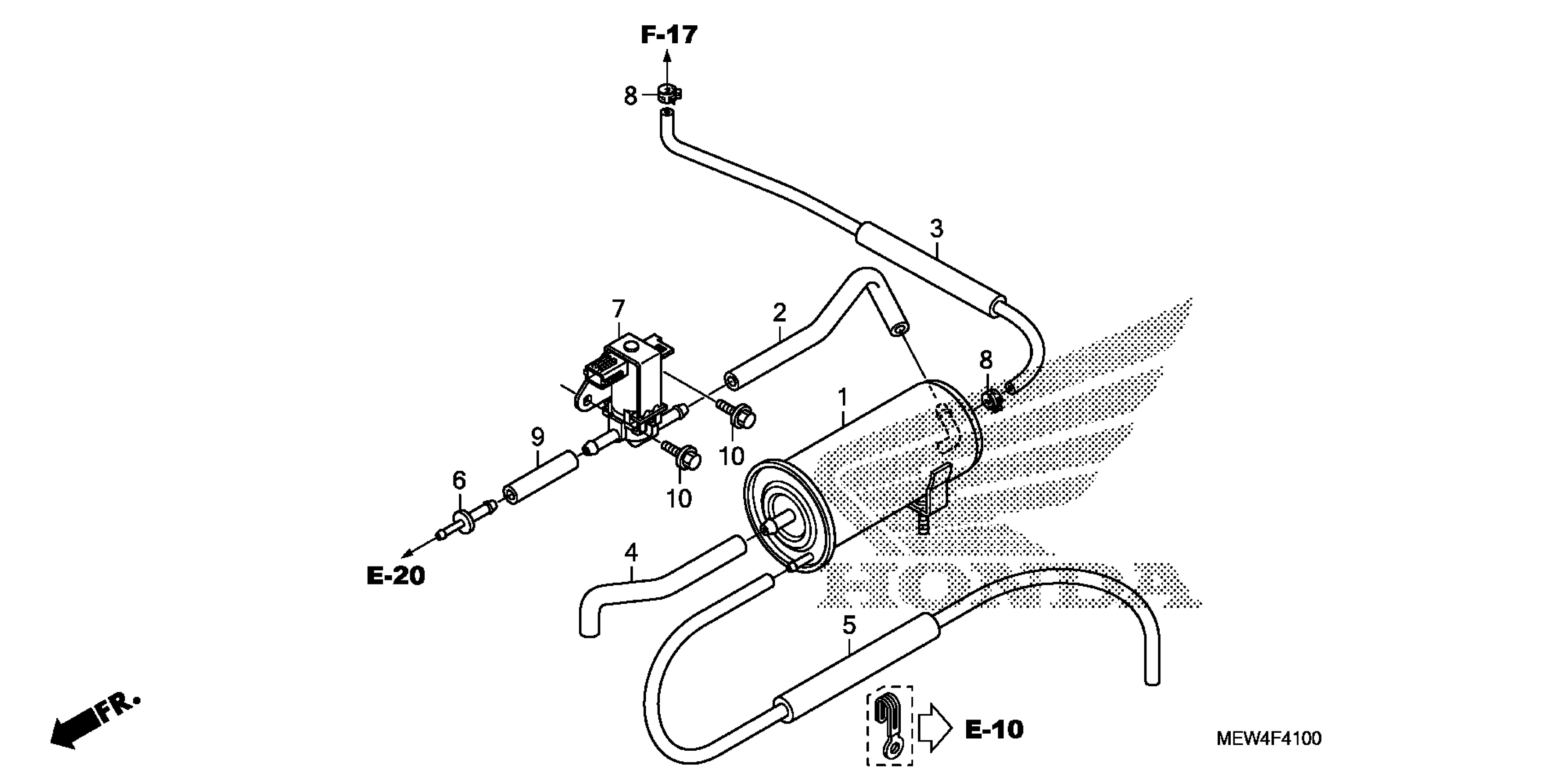

Honda NT700VAAC (11) NT700VA, ITA, VIN# ZDCRC595-BF010001 CANISTER Diagram

CANISTER

17410-MEW-L02

$297.85

TUBE, CANISTER-PURGE CONTROL VALVE

17412-MEW-L00

$5.30

TUBE, TANK-CANISTER

17413-MEW-L01

$19.25

TUBE, AIR

17415-MEW-L00

$6.41

TUBE, CANISTER DRAIN

17416-MEW-L01

$7.89

JOINT, TUBE

19126-KM1-010

$3.90

VALVE ASSY., PURGE CONTROL SOLENOID

36162-P2M-A01

$365.90

CLAMP, TUBE (8.0)

90652-KSJ-A21

$1.49

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
