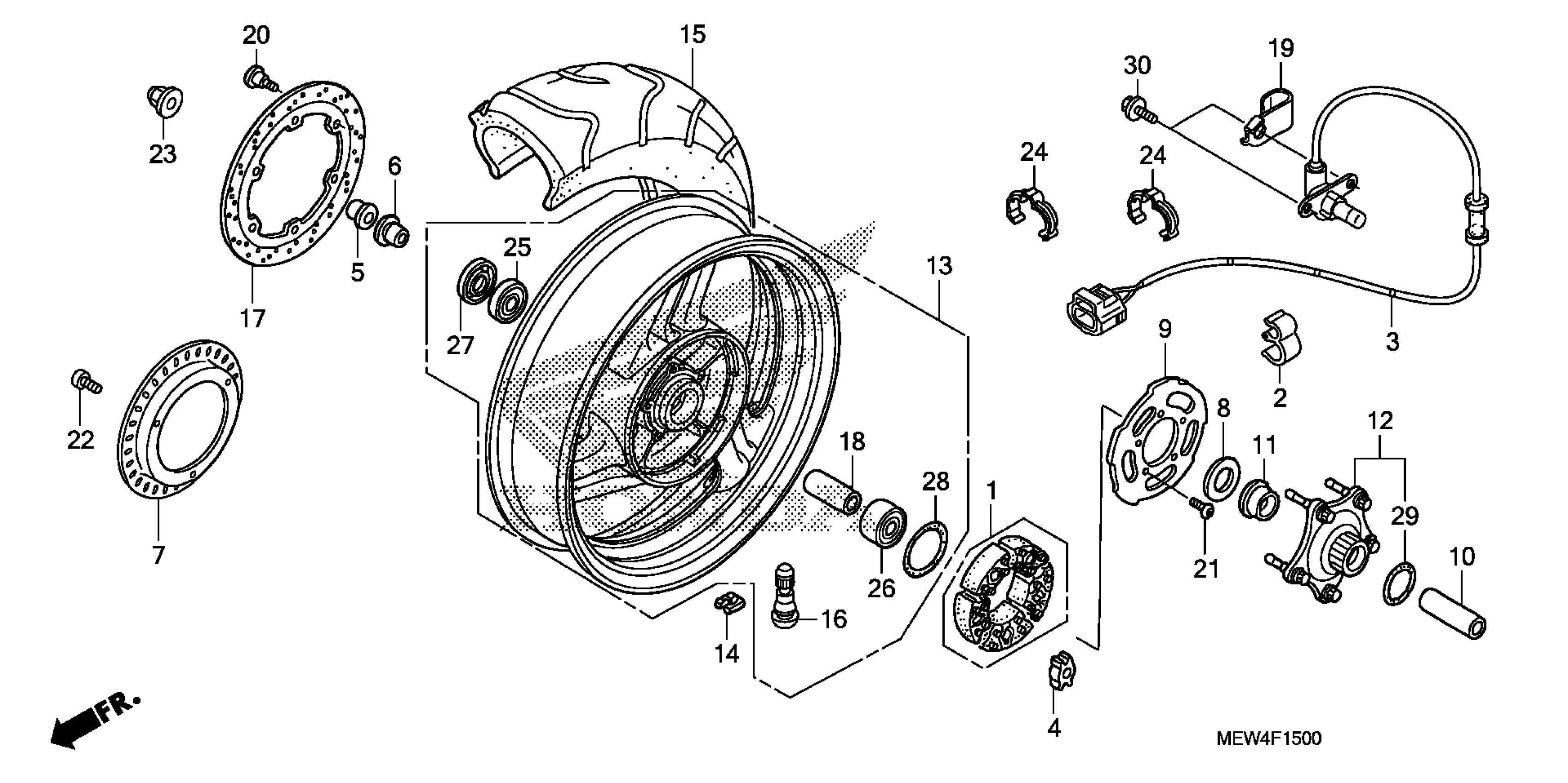

Honda NT700VA4AC (10) NT700VA, ITA, VIN# ZDCRC595-AF000001 TO ZDCRC595-AF009999 REAR WHEEL Diagram

DAMPER SET, WHEEL

06410-MAH-A60

$50.65

DAMPER SET, WHEEL This part replaces 06410-MZ0-A00.

06410-MAH-A60

$50.65

CLAMP, PIPE

11152-KS4-003

$7.13

SENSOR, RR. WHEEL SPEED

38510-MEW-851

$174.34

PIECE, DAMPER WHEEL

41242-MR5-000

$17.49

COLLAR, RR. WHEEL SIDE

42311-MBL-610

$9.21

COLLAR, RR. WHEEL SIDE

42313-MBL-610

$9.59

RING, PULSER

42515-MEW-850

$34.77

WASHER, THRUST

42616-MT3-000

$7.51

HOLDER, DAMPER

42617-MT8-000

$42.97

COLLAR B, RR. DISTANCE

42625-MBL-D00

$9.77

COLLAR A, RR. DISTANCE

42626-MBL-610

$19.64

FLANGE SET, FINAL DRIVEN

42630-MAH-305

$192.11

WHEEL SUB-ASSY., RR. (COO)

42650-MEW-306

$394.89

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

TIRE, RR. (150/70ZR17 M/C 69W) (BS)

42711-MEW-923

Unavailable

VALVE, RIM (BS) This part replaces 42753-KBS-901.

42753-ML7-003

$12.74

DISK, RR. BRAKE

43251-MEW-921

$129.15

COLLAR, FR. AXLE DISTANCE

44620-MW6-610

$15.78

CLAMP

45158-MEW-850

$3.36

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BOLT, TORX (5X10)

90131-KPB-751

$2.66

NUT, FLANGE (18MM)

90306-MCH-003

$13.13

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

BEARING, RADIAL BALL (6204UU)

91052-MAE-004

$27.50

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$12.13

DUST SEAL (30X47X8) (NOK)

91253-443-762

$12.13

O-RING (61X2)

91302-MA6-003

$5.17

O-RING (46.5X3.5)

91358-MB0-000

$3.76

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
