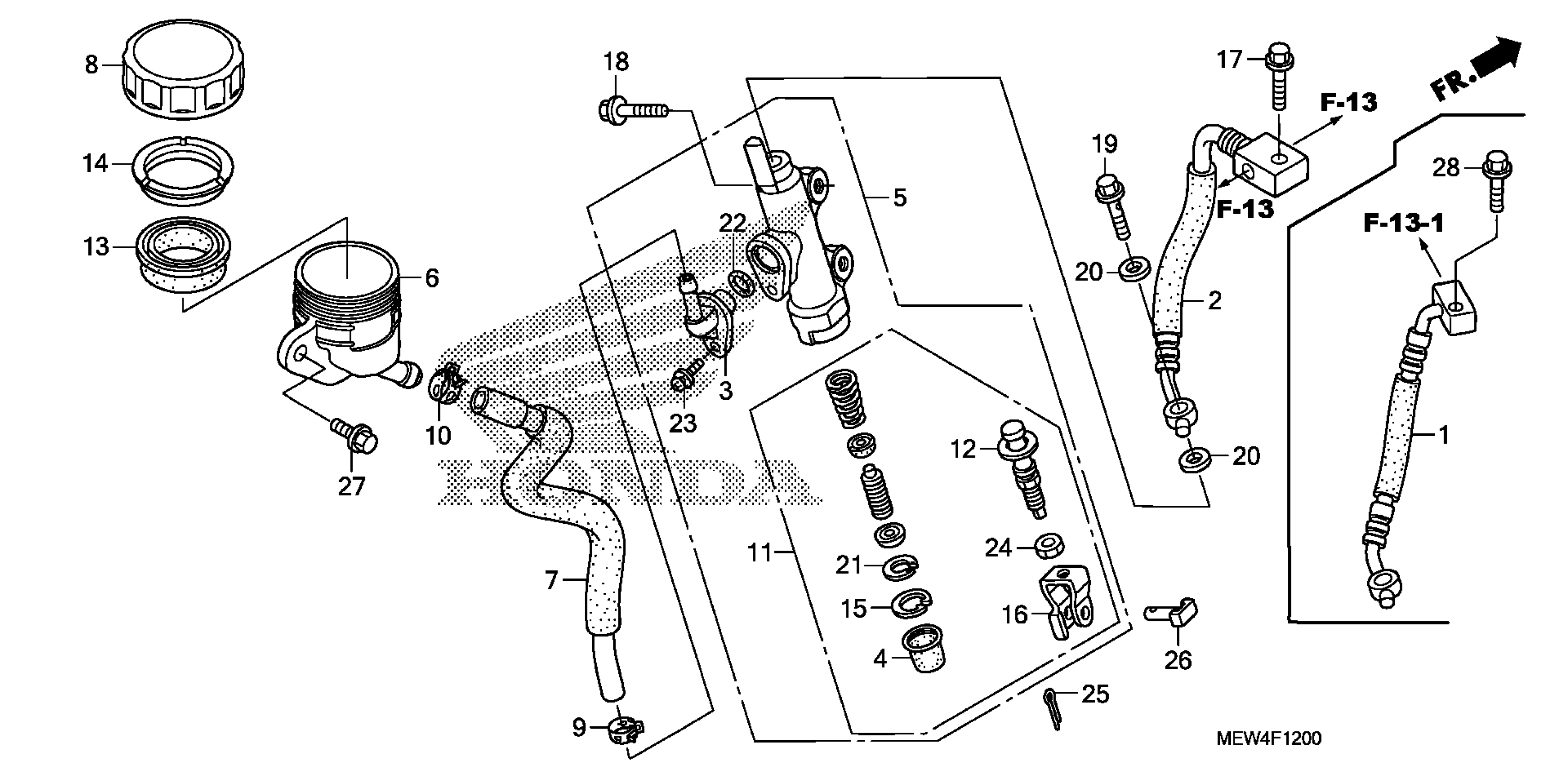

Honda NT700VA4AC (10) NT700VA, ITA, VIN# ZDCRC595-AF000001 TO ZDCRC595-AF009999 REAR BRAKE MASTER CYLINDER Diagram

HOSE A, RR. BRAKE

43310-MEW-851

$33.04

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

BOOT

43504-MB2-006

$9.24

MASTER CYLINDER SUB-ASSY., RR.

43510-MEW-923

$178.47

CUP, MASTER CYLINDER OIL

43511-MA6-006

$36.12

HOSE, RR. BRAKE MASTER CYLINDER

43512-MEW-921

$14.09

CAP, OIL CUP

43513-MY1-006

$26.99

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.12

PISTON SET, RR. MASTER CYLINDER

43520-MBL-D02

$56.09

ROD, PUSH

43530-MBL-D01

$21.37

DIAPHRAGM

45520-300-000

$8.34

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

CIRCLIP

46182-MEL-D21

$1.79

JOINT, BRAKE ROD

46504-KV6-702

$7.49

BOLT, FLANGE (6X25)

90131-124-000

Unavailable

BOLT, OIL (10X22)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP, PISTON

90651-MBG-006

$2.63

O-RING (14.8X2.4)

91212-422-006

$2.37

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

NUT, HEX. (8MM)

94002-08000-0S

$1.31

PIN, SPLIT (2.0X15)

94201-20150

$1.04

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

BOLT, FLANGE (6X20)

95701-06020-07

$1.63
