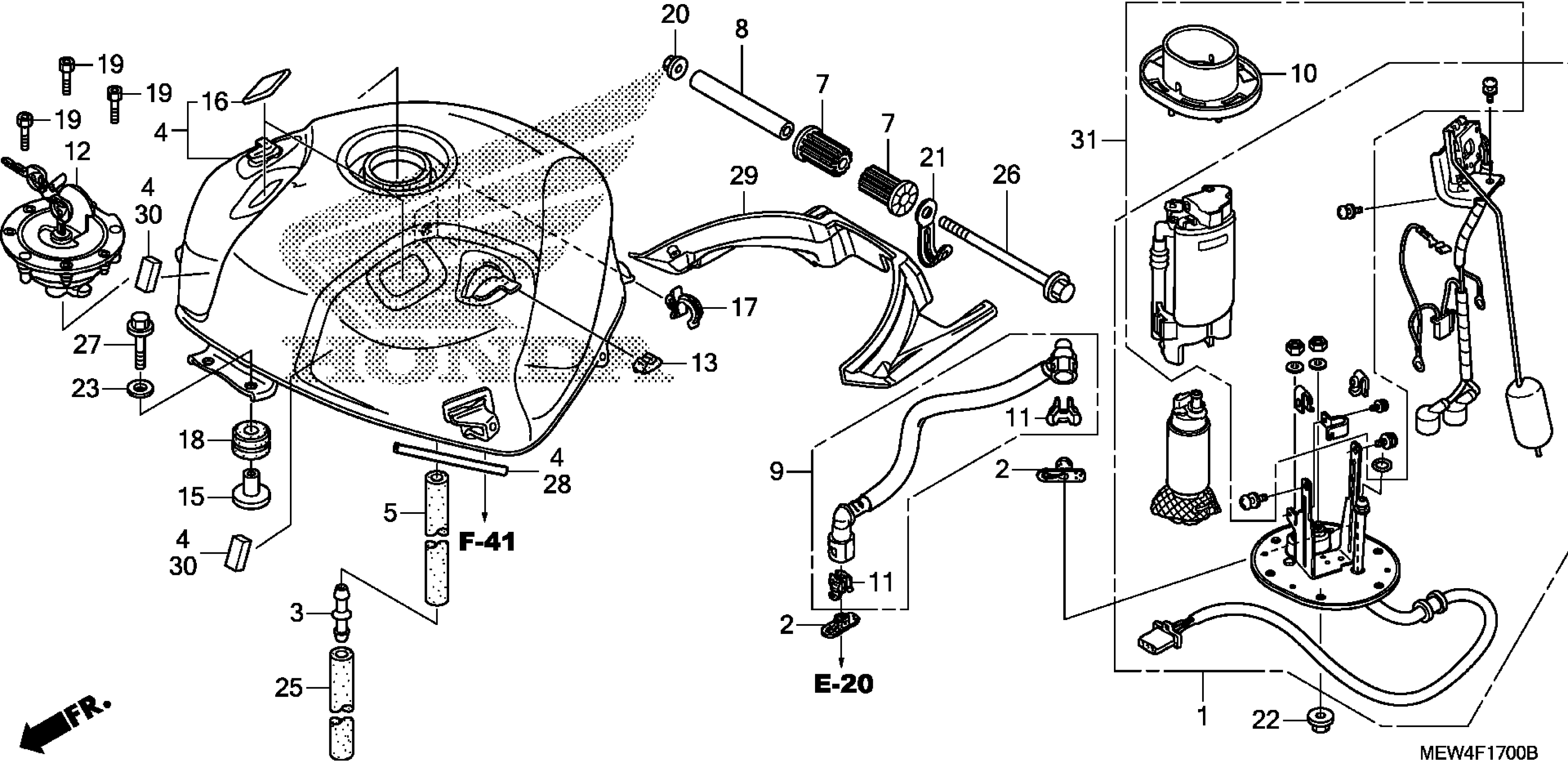

Honda NT700VA4AC (10) NT700VA, ITA, VIN# ZDCRC595-AF000001 TO ZDCRC595-AF009999 FUEL TANK Diagram

PUMP ASSY., FUEL (MSDS)

16700-MEW-D41

$575.17

DAMPER, CONNECTOR

16719-MEW-920

$2.92

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK SET, FUEL *NHA49M* (SPANGLE SILVER METALLIC) | Spangle silver metallic NHA49M;

17500-MEW-D40ZA

$1,646.75

TUBE, DRAIN

17543-MEW-920

$9.44

CUSHION, RR. FUEL TANK PIVOT

17548-MEW-920

$6.03

COLLAR, TANK SETTING

17549-MEW-920

$2.31

HOSE, FUEL FEED

17570-MEW-L01

$101.15

GASKET, BASE

17574-MEE-000

$13.36

RETAINER (BLUE GREEN) (TOKAI)

17711-S0X-931

$3.40

CAP, FUEL FILLER This part replaces 17620-MAS-E02.

17620-MAS-E04

$202.36

CAP, FUEL FILLER This part replaces 17620-MAS-E03.

17620-MAS-E04

$202.36

RUBBER, PROTECTOR

18293-MN0-000

$2.13

COLLAR, SETTING

61104-422-000

$6.91

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.97

HOLDER, ROD (A)

80106-GCF-670

$1.49

RUBBER, TAILLIGHT MOUNTING

84703-KC1-000

$4.97

BOLT, SOCKET (4X21)

90074-MT4-000

$3.04

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$4.07

CLIP (2X60)

91410-679-000

$10.06

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BULK HOSE, VACUUM (8X1000) (8X460)

95005-80001-20M

$23.91

BOLT, FLANGE (6X120)

95701-06120-08

$3.66

BOLT, FLANGE (6X35)

96001-06035-07

$2.06

TRIM, FUEL TANK

17516-MG8-000

$5.11

RUBBER, FUEL TANK

19140-MEW-D20

$19.92

RUBBER, FUEL TANK

17501-MEW-D40

$1.49

FILTER ASSY., FUEL

16011-MEW-D40

$306.79
