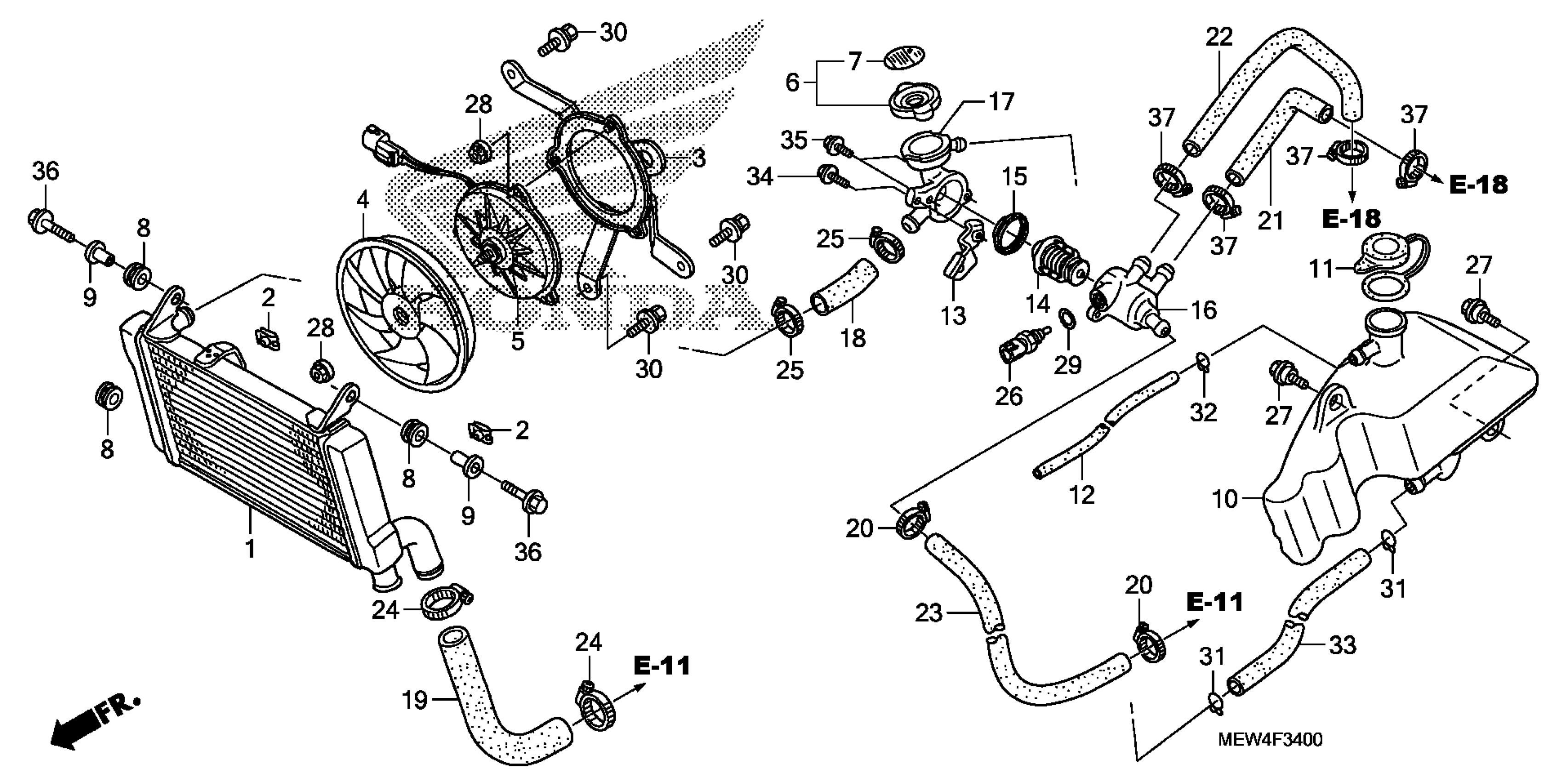

Honda NT700V4AC (10) NT700V, ITA, VIN# ZDCRC591-AF000001 TO ZDCRC591-AF009999 RADIATOR Diagram

RADIATOR (COO) This part replaces 19010-MEW-305.

19010-MEW-315

$207.35

RADIATOR (COO)

19010-MEW-315

$207.35

NUT, SETTING (6MM)

19014-KEA-003

$2.88

SHROUD (COO)

19015-MEW-305

$39.83

FAN, COOLING

19020-MEE-003

Unavailable

MOTOR ASSY., FAN

19030-MEW-D41

$156.35

CAP, RADIATOR

19037-GEE-710

$27.19

LABEL, RADIATOR CAP

19046-PAA-A00

$2.80

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.08

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.26

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.26

TANK, RESERVE (COO)

19101-MEW-305

$33.33

CAP, RESERVE TANK

19104-MB0-700

$10.92

TUBE, RESERVE TANK BREATHER

19104-MEW-920

$5.93

STAY, THERMOSTAT CASE

19105-MEW-920

$3.41

THERMOSTAT ASSY.

19300-MCH-A00

$42.89

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

CASE, THERMOSTAT

19311-MEW-920

$49.57

COVER, THERMOSTAT

19315-MEW-920

$47.46

HOSE, RADIATOR (UPPER)

19501-MEW-920

$5.16

HOSE, RADIATOR (LOWER)

19502-MEW-920

$18.14

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

HOSE, RR. CYLINDER HEAD WATER

19504-MEW-920

$6.09

HOSE, FR. CYLINDER HEAD WATER

19505-MEW-920

$7.04

HOSE, THERMOSTAT BYPASS

19507-MEW-920

$15.55

CLAMP, RADIATOR HOSE

19509-MM5-003

$12.19

CLAMP, HOSE (24-32MM)

19516-ML7-691

$12.93

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

BOLT, FLANGE (6MM)

90111-162-000

$2.62

NUT, SERRATE (5MM)

90315-MK3-003

$2.12

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

BOLT-WASHER (6X14)

90120-GHB-611

$2.43

CLIP, TUBE (B12)

95002-02120

Unavailable

CLIP, TUBE (C9)

95002-50000

$1.14

BULK HOSE (7.3X1000)

95005-75001-20M

$20.14

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

BOLT, FLANGE (6X25)

96300-06025-07

$1.72

CLAMP B, WATER HOSE

19506-KS6-700

$6.98
